2025 Kawasaki W230 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

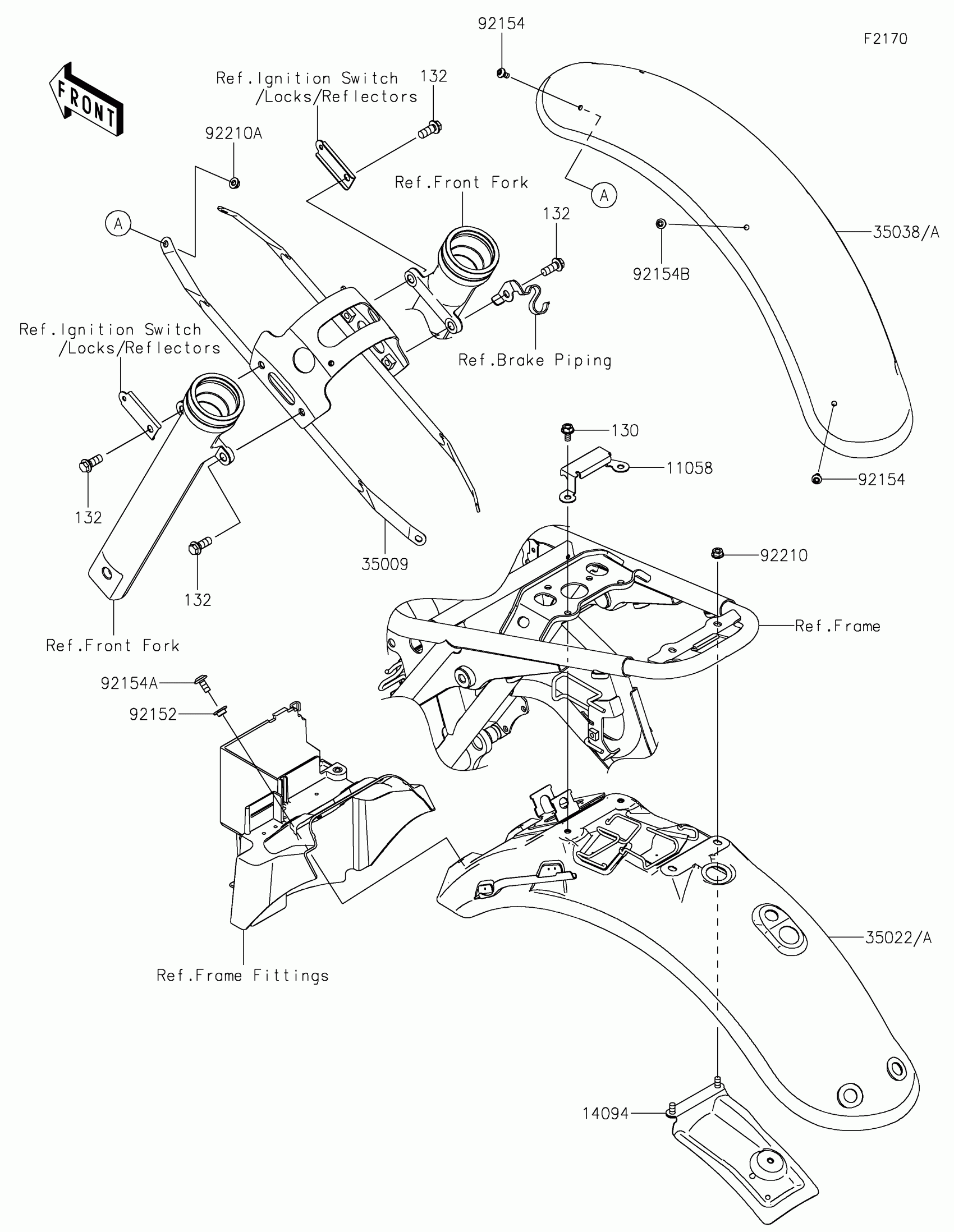

2025 Kawasaki W230 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,SEAT LOCK

11058-1617

1

$5.56

In stock

14094

COVER,RR FENDER

14094-0101

1

$21.53

In stock

35009

BRACE,FRONT FENDER

35009-0076

1

$196.36

In stock

35022

FENDER-COMP-REAR,P.IVORY

35022-0121-63W

1
Out of stock

35022A

FENDER-COMP-REAR,M.O.BLUE

35022-0121-726

1

$357.37

In stock

35038

FENDER-FRONT,P.IVORY

35038-0056-63W

1
Out of stock

35038A

FENDER-FRONT,M.O.BLUE

35038-0056-726

1

$167.59

In stock

92152

COLLAR

92152-2296

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-0211

1

$1.78

In stock

92154A

BOLT,SOCKET,6X14

92154-2161

1

$1.10

In stock

92154B

BOLT,SOCKET,5X10

92154-7713

1

$1.39

In stock

92210

NUT,FLANGED,6MM

92210-1514

1
Out of stock

92210A

NUT,FLANGED,5MM

92210-1607

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$3.72

In stock
