2025 Kawasaki W230 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

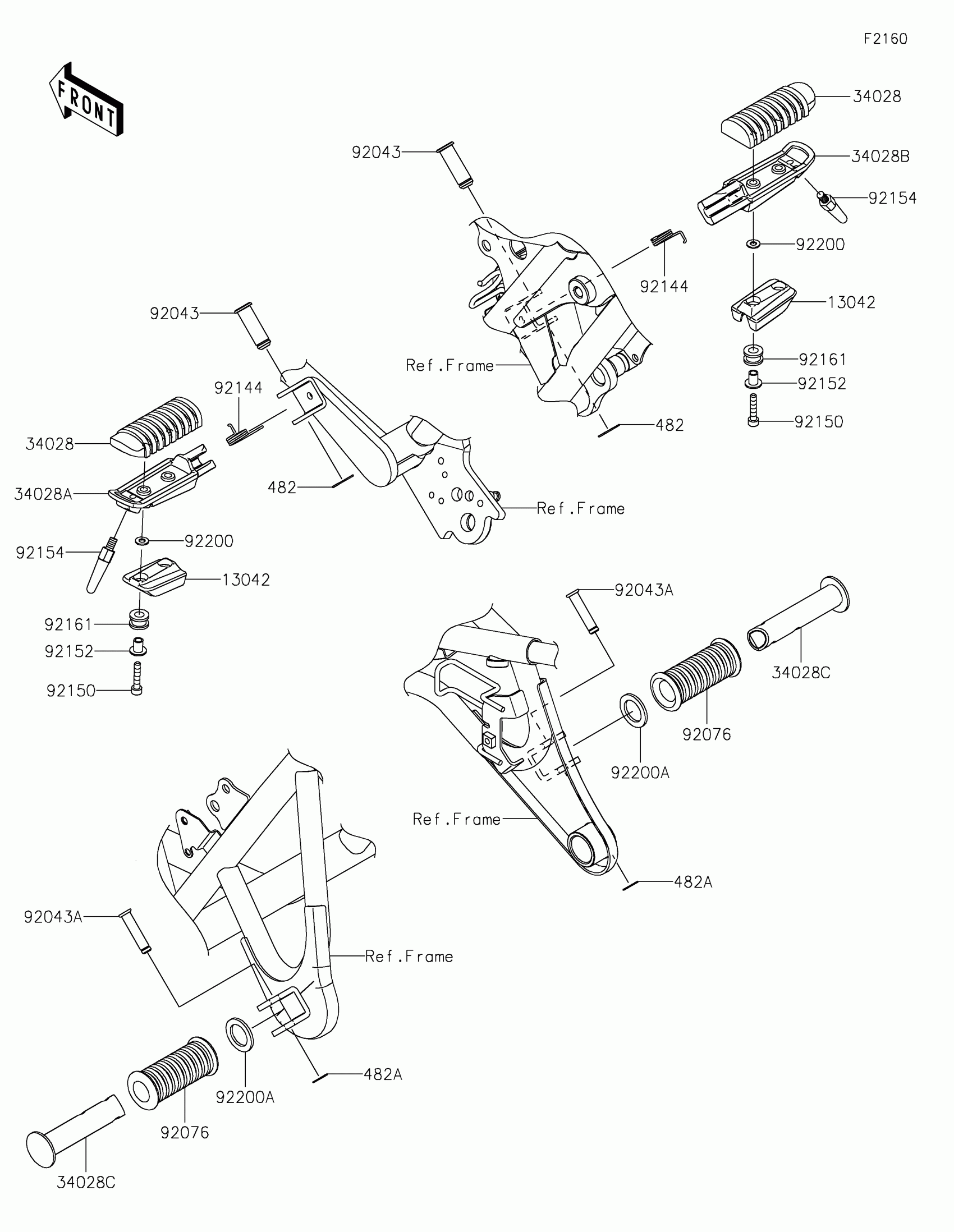

2025 Kawasaki W230 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,STEP

13042-0759

1

$36.51

In stock

34028

STEP,RUBBER

34028-0133

1

$11.74

In stock

34028A

STEP,FR,LH

34028-0350

1

$33.47

In stock

34028B

STEP,FR,RH

34028-0351

1

$33.47

In stock

34028C

STEP,RR

34028-0417

1

$20.14

In stock

92043

PIN,12X37

92043-0025

1

$4.42

In stock

92043A

PIN,8X36.5

92043-1339

1

$7.71

In stock

92076

DAMPER

92076-020

1

$22.91

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92150

BOLT,SOCKET,5X25

92150-1684

1

$2.89

In stock

92152

COLLAR

92152-2596

1

$2.12

In stock

92154

BOLT,BANK SENSER

92154-7291

1
Out of stock

92161

DAMPER,8X16X10

92161-1935

1

$0.88

In stock

92200

WASHER,5.3X11X1

92200-0973

1
Out of stock

92200A

WASHER,20X30X2.3

92200-1928

1

$3.85

In stock

482

1

$0.98

In stock

482A

CIRCLIP-TYPE-E

482EA7000

1

$3.12

In stock
