2009 Suzuki VZ800 Rear Combination Lamp Diagram

← All diagrams

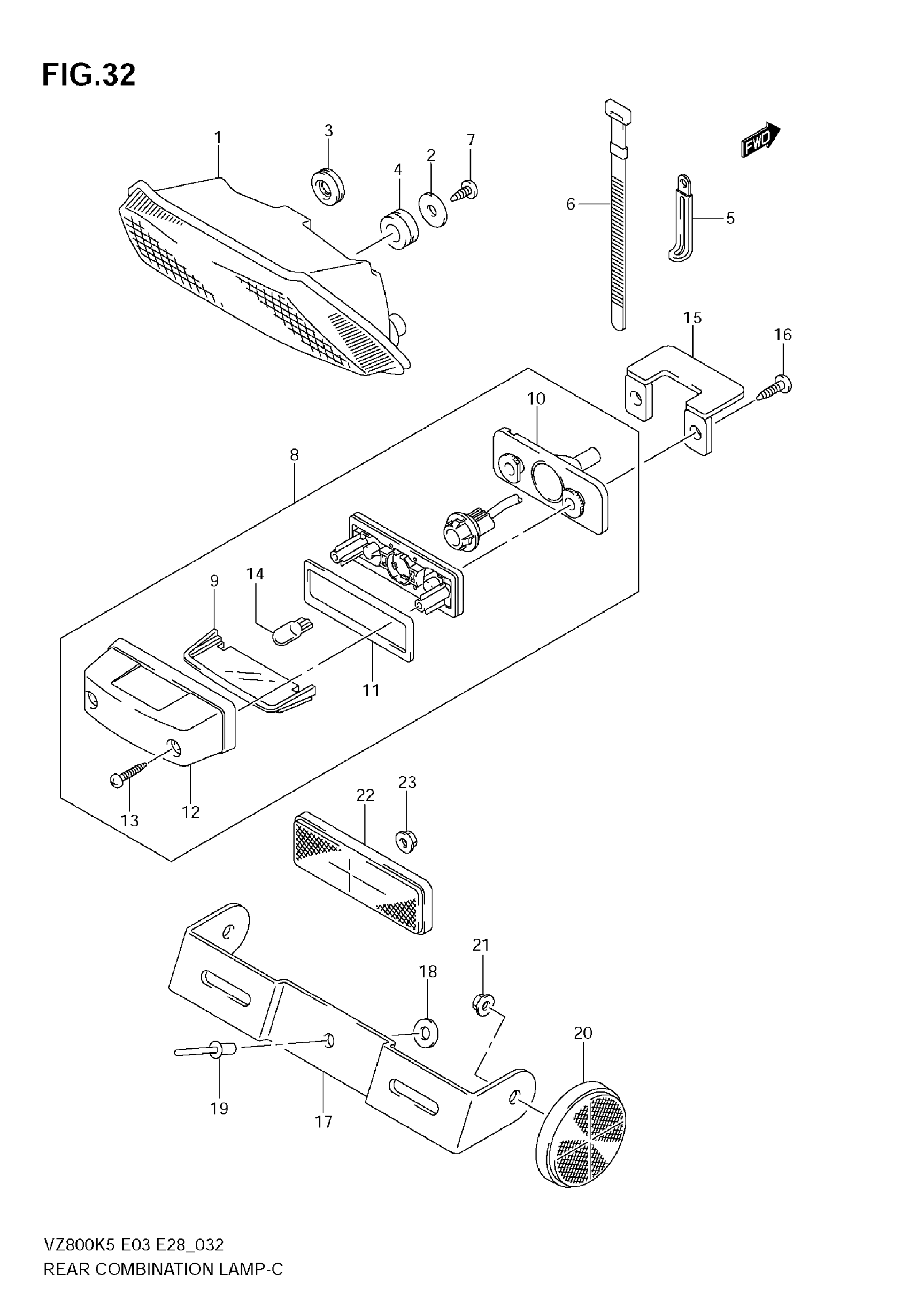

Find the part on the Rear Combination Lamp diagram for your 2009 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VZ800 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMB

35710-39G30

1
Out of stock

2

WASHER, REAR COMB | 5.5X20X1.2

09160-05501

3
Out of stock

3

GROMMET, RR COMB

09308-10017

1
Out of stock

4

CUSHION, RR COMB

09320-10049

3
Out of stock

5

CLAMP (L:45)

09404-06429

1
Out of stock

6

CLAMP (L:125)

09407-14403

1
Out of stock

7

SCREW, RR, COMB

03541-0512B

3
Out of stock

8

LAMP ASSY,LICEN | Includes Item(s) 9 - 14 This part replaces 35910-16G50.

35910-16G51

11
Out of stock

9

.LENS This part replaces 35912-16G00.

35912-16G01

1
Out of stock

10

CUSHION

35916-16G10

1
Out of stock

11

GASKET

35913-16G00

1
Out of stock

12

COVER

35917-16G00

1
Out of stock

13

SCREW

03211-0416A

2
Out of stock

14

.BULB (12V5W)

09471-12216

1
Out of stock

15

BRACKET, LICENSE LAMP

35926-16G00

1
Out of stock

16

SCREW

03541-0520B

2
Out of stock

17

BRACKET, LICENSE PLATE

35927-39G30

1
Out of stock

18

WASHER (5.5X18X1.0)

09160-05045

1
Out of stock

19

RIVET, LICENSE PLATE

09229-04050

2
Out of stock

20

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

21

NUT

08316-1005B

2
Out of stock

22

REFLECTOR ASSY, RR SIDE

35970-07F01

1
Out of stock

23

NUT

08316-1005B

1
Out of stock
