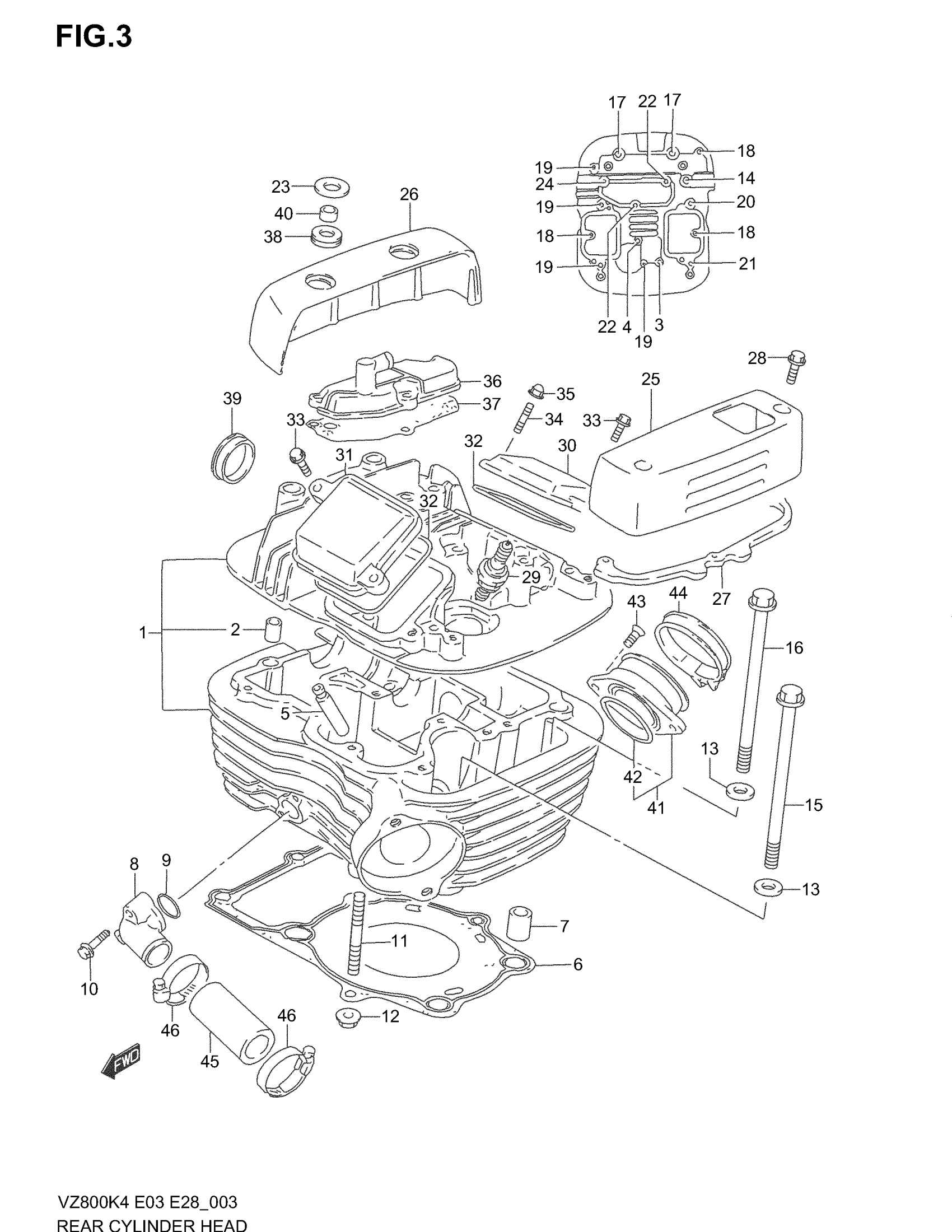

Suzuki VZ800 (2004) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 4

11103-48E60

Unavailable

2

PIN

09206-11004

$4.84

3

BOLT (6X50)

09103-06101

$2.72

4

BOLT (6X55)

09103-06102

$1.68

5

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

$45.97

6

GASKET

11142-45C00

$53.51

7

PIN

04211-13189

$2.19

8

UNION, CYLINDER HEAD WATER

11169-45C10

Unavailable

9

O RING (D:2.4,ID:17.8)

09280-18004

$4.66

10

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

11

STUD BOLT (8X40)

09108-08144

$2.93

12

NUT This part replaces 08316-10083.

08316-1008B

$2.65

13

WASHER

09160-10039

$2.24

14

BOLT (8X140)

09103-08040

$5.98

15

BOLT (10X155)

09103-10133

$10.32

16

BOLT (10X165)

09103-10134

$10.32

17

BOLT (8X245)

09103-08180

Unavailable

18

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

19

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

20

BOLT This part replaces 07120-06303.

07120-0630B

$3.19

21

BOLT This part replaces 01550-06403.

01550-0640A

$2.43

22

BOLT (6X55)

09103-06102

$1.68

23

WASHER

09160-08130

$2.01

24

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

25

CAP, HEAD COVER (R-L)

11173-48E00

Unavailable

26

CAP, HEAD COVER (F-L/R-R)

11171-48E00

Unavailable

27

CUSHION, REAR LEFT CAP

11273-38A01

$12.50

28

BOLT

09103-06192

Unavailable

29

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$2.80

29

SPARK PLUG (DENSO,X24EPR-U9)

09482-00335

$4.90

29

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.04

29

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355.

09482-00354

$3.04

29

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$2.85

29

SPARK PLUG (DENSO,X27EPR-U9) | OPT

09482-00331

$5.77

30

CAP, INSPECTION INTAKE

11175-38A11

$26.03

31

CAP, INSPECTION EXHAUST

11176-38A11

$26.03

32

GASKET

11177-38A00

$4.09

33

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

34

STUD BOLT (6X16)

09108-06102

$4.43

35

NUT This part replaces 08313-20063.

08313-2006A

$1.97

36

COVER, BREATHER

11186-38A02

Unavailable

37

GASKET

11187-38A02-H17

$9.00

38

CUSHION

09320-13015

$2.80

39

PLUG

09241-30004

$5.97

40

BUSH

09301-08007

$7.38

41

PIPE ASSY, INTAKE REAR | Includes Item(s) 42

13102-45C00

$33.34

42

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

43

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

44

CLAMP

09402-52501

$9.98

45

HOSE, CYLINDER HEAD JOINT

17854-38A00

$10.35

46

CLAMP

09402-28511

$6.21
