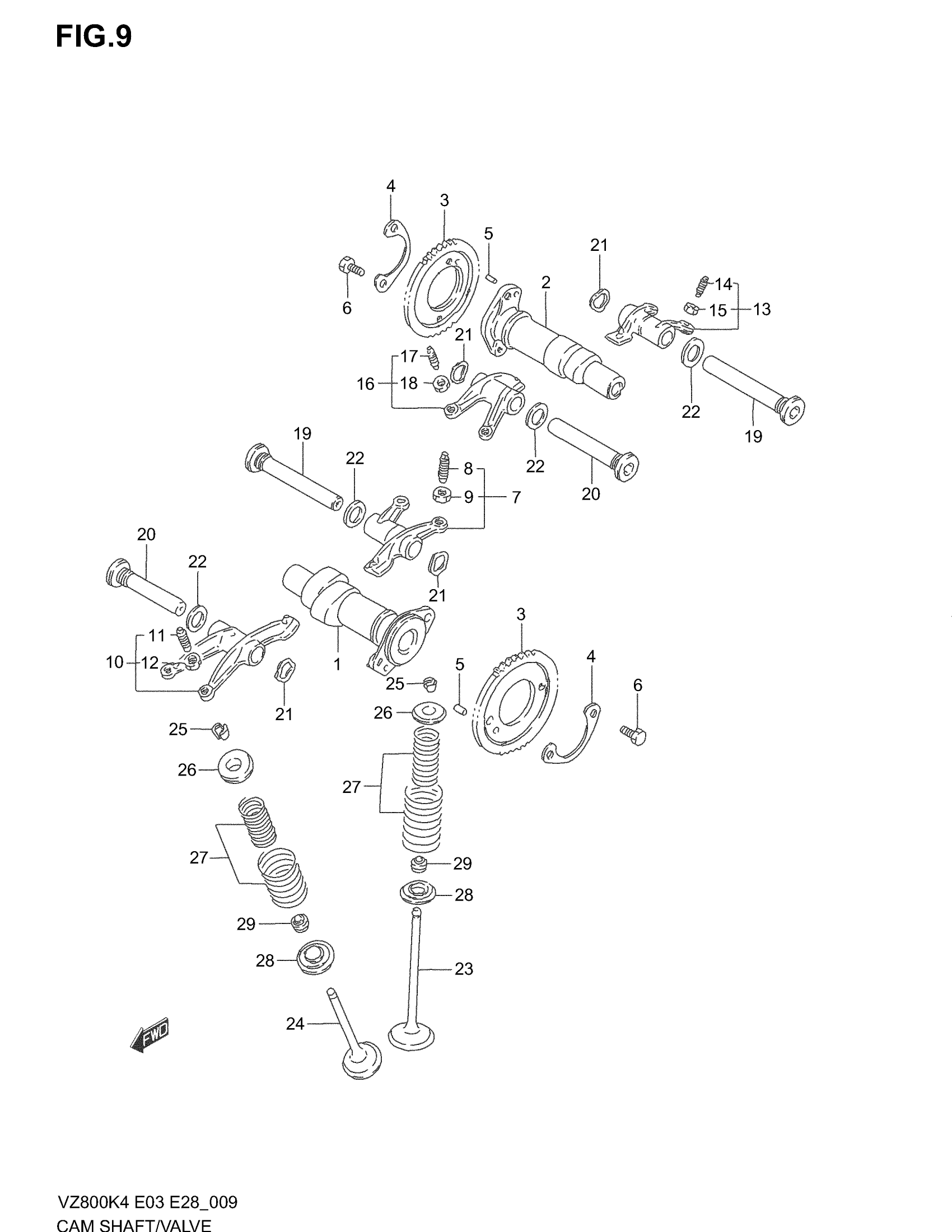

Suzuki VZ800 (2004) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT, FRONT

12711-38A03

Unavailable

2

CAM SHAFT, REAR

12713-38A03

Unavailable

3

SPROCKET, CAM SHAFT (NT:42)

12741-37400

Unavailable

4

WASHER This part replaces 12747-44000.

12747-44001

$2.60

5

PIN

04221-05109

$1.49

6

BOLT (6X12.5)

09111-06027

$1.87

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-38A10.

12840-38A11

$98.68

8

SCREW

12842-38A00

$6.95

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM, EXHAUST VALVE ROCKER FR | Includes Item(s) 11 - 12

12850-38A10

$106.60

11

SCREW

12842-38A00

$6.95

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

ARM, INTAKE VALVE ROCKER RR | Includes Item(s) 14 - 15

12845-38A10

Unavailable

14

SCREW

12842-38A00

$6.95

15

.NUT, ADJUSTING SCREW

12843-32400

$2.80

16

ARM, EXHAUST VALVE ROCKER RR | Includes Item(s) 17 - 18

12855-38A10

Unavailable

17

SCREW

12842-38A00

$6.95

18

.NUT, ADJUSTING SCREW

12843-32400

$2.80

19

SHAFT, IN VALVE ROCKER ARM

12861-38A01

Unavailable

20

SHAFT, EX VALVE ROCKER ARM

12871-38A01

Unavailable

21

WASHER

09164-12018

$1.41

22

GASKET

09168-14002

$2.83

23

VALVE, INTAKE

12911-38A10

$51.22

24

VALVE, EXHAUST

12912-38A10

$82.10

25

COTTER, VALVE

12932-24400

$1.98

26

RETAINER, SPRING This part replaces 12931-33200.

12931-33201

$9.35

27

SPRING SET

12920-38A00

$13.50

28

SEAT, VALVE SPRING

12933-33201

$4.42

29

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04
