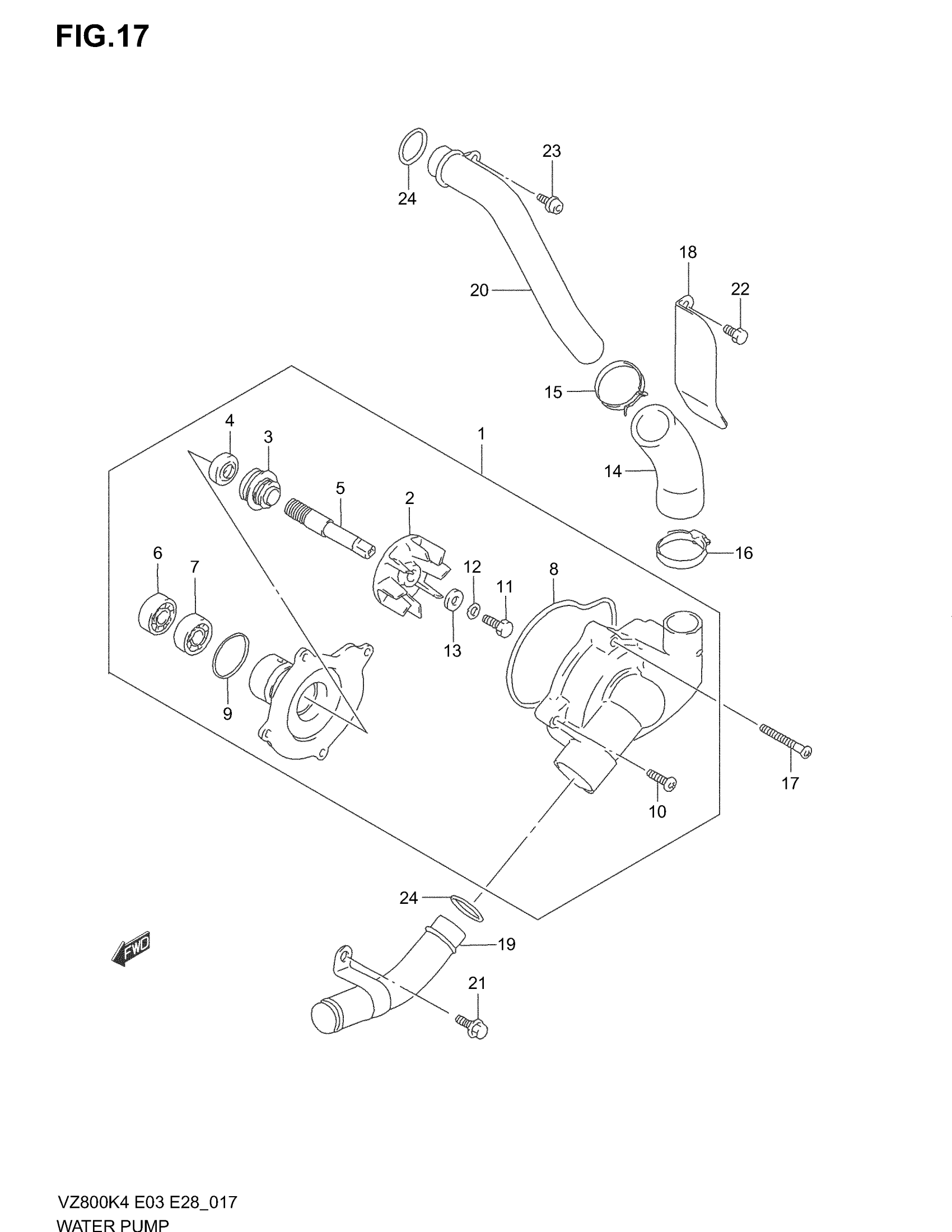

Suzuki VZ800 (2004) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 13 This part replaces 17400-48E00.

17400-48E01

$379.47

2

IMPELLER

17491-17E01

$26.34

3

.SEAL,MECHANICAL This part replaces 17470-02F00.

17470-02F11

$27.96

4

.SEAL OIL (10X21X5)

09283-10004

$4.61

5

SHAFT

17511-48E01

Unavailable

6

BEARING (10X26X8)

09262-10014

$14.94

7

BEARING (12X28X8)

09262-12001

$17.40

8

.O-RING This part replaces 17418-33400.

17418-33401

$4.28

9

.O-RING

17435-33400

$14.63

10

SCREW This part replaces 02112-06163.

02112-0616A

$1.46

11

BOLT (6X13)

09100-06099

$2.08

12

LOCK WASHER

09164-06006

$2.66

13

GASKET

09168-06025

$2.80

14

HOSE, WATER PUMP OUTLET

17859-48E00

$16.92

15

CLIP This part replaces 09401-26404.

09401-26407

$5.02

16

CLAMP

09402-32511

$10.29

17

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.80

18

PLATE

17871-48E00

Unavailable

19

PIPE, WATER PUMP INLET

17880-48E00

Unavailable

20

PIPE, WATER PUMP OUTLET

17890-48E00

Unavailable

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

22

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

23

SCREW

07120-06127

$4.18

24

O RING (D:2.7,ID:21.4)

09280-21015
