2003 Suzuki VZ800 OIL Pump / Fuel Pump Diagram

← All diagrams

Find the part on the OIL Pump / Fuel Pump diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

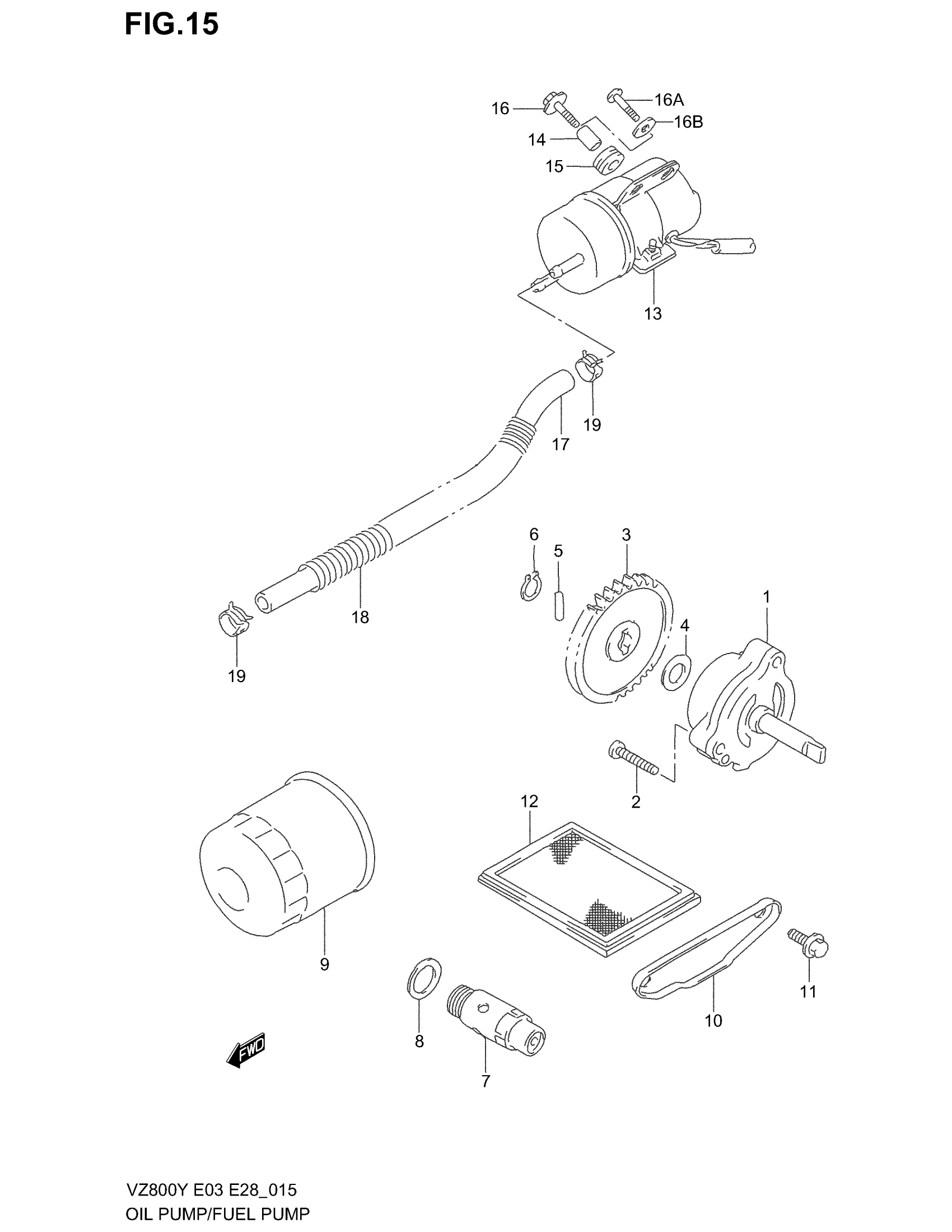

2003 Suzuki VZ800 OIL Pump / Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENGINE OIL

16400-48E00

1

$231.90

In stock

2

SCREW This part replaces 02112-06253.

02112-0625A

3
Out of stock

3

1

$66.48

In stock

4

WASHER

09181-10158

1
Out of stock

5

PIN

09261-04009

1
Out of stock

6

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

7

VALVE ASSY, OIL RELIEF

16440-33E00

1
Out of stock

8

GASKET

09168-16002

1
Out of stock

9

FILTER, ENGINE OIL | MODEL V This part replaces 16510-06B01.

16510-07J00

1
Out of stock

9

FILTER, ENGINE OIL | MODEL W/X/Y/K1/K2/K3 This part replaces 16510-34E00.

16510-07J00

1
Out of stock

10

CAP

16523-48E00

1
Out of stock

11

BOLT (6X12) This part replaces 09103-06083.

09103-06285

2
Out of stock

12

1

$13.42

In stock

13

1

$267.73

In stock

14

SPACER

09180-06263

2
Out of stock

15

CUSHION

09320-09009

2

$4.50

In stock

16A

2

$3.19

In stock

16B

WASHER (6.5X20X1.2) | MODEL W/X/Y/K1/K2/K3

09160-06077

2
Out of stock

18

PROTECTOR

09440-14047

1

$9.57

In stock

19

2

$2.36

In stock
