2003 Suzuki VZ800 Fuel Tank Diagram

← All diagrams

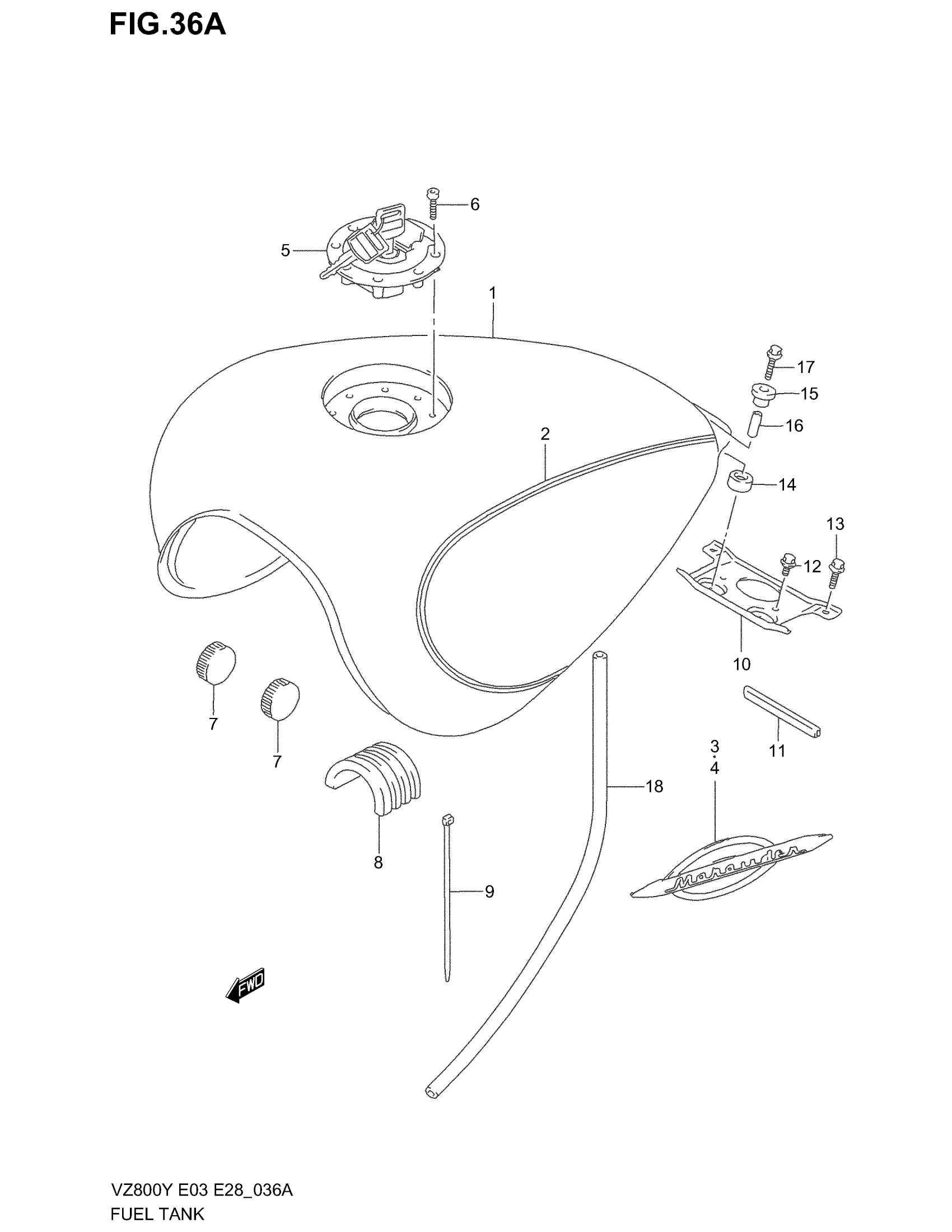

Find the part on the Fuel Tank diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VZ800 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL

44100-48E60-J4M

1
Out of stock

1

TANK ASSY, FUEL

44100-48E60-J8K

1
Out of stock

1

TANK ASSY, FUEL | E33

44100-48E70-J4M

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 4 This part replaces 44100-48E70-J8K.

44110-48E20-YD8

1
Out of stock

2

TAPE SET, FUEL TANK | FOR J4M

68110-48E10-J6F

1
Out of stock

2

TAPE SET, FUEL TANK | FOR J8K

68110-48E10-J9G

1
Out of stock

3

EMBLEM, FUEL TANK RH

68111-48E20

1

$70.33

In stock

4

EMBLEM, FUEL TANK LH

68121-48E20

1

$70.33

In stock

5

1

$312.85

In stock

5

CAP SET, FUEL TANK | E33

44200-33860

1
Out of stock

6

BOLT (L:20)

09106-05017

4

$2.92

In stock

7

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

8

2

$18.80

In stock

9

CLAMP (L:248)

09407-25402

2

$4.50

In stock

10

1

$23.38

In stock

11

1

$6.00

In stock

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

13

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

14

2

$6.51

In stock

15

CUSHION, UPPER

09320-10022

2

$2.92

In stock

16

2

$2.82

In stock

17

BOLT This part replaces 01550-06353.

01550-0635A

2
Out of stock

18

1

$22.15

In stock
← Fuel Tank Fuel Tank →
