1994 Yamaha Vmax 600 (VX600U) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1994 Yamaha Vmax 600 (VX600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

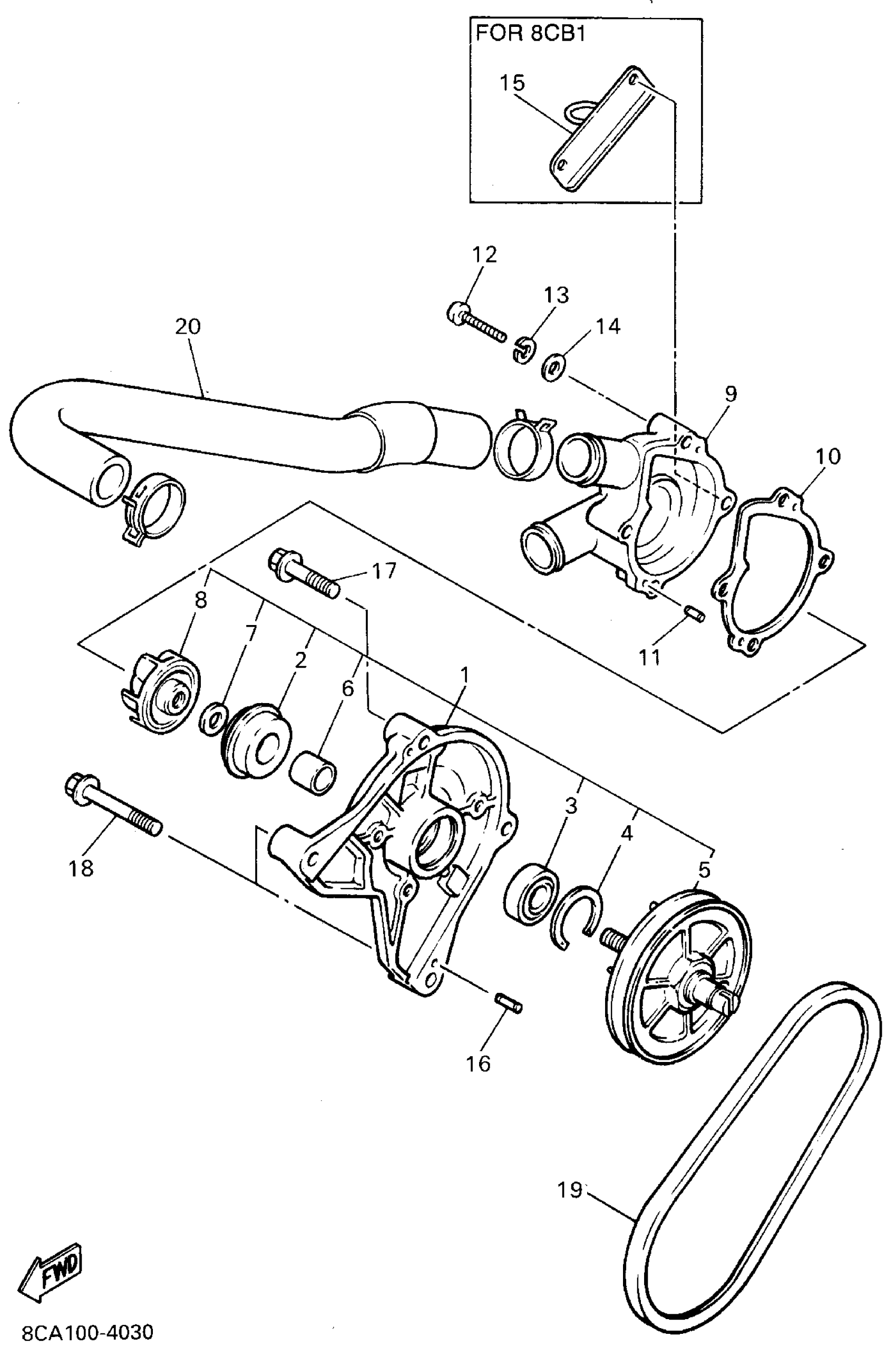

1994 Yamaha Vmax 600 (VX600U) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING,WATER PUMP

8AB-W1247-02-00

1
Out of stock

2

SEAL, MECHANICAL

82M-12438-00-00

1
Out of stock

3

BEARING(82M)

93306-20117-00

1
Out of stock

4

CIRCLIP(82M)

93450-34118-00

1
Out of stock

5

HOUSING,WATER PUMP

8AB-W1247-02-00

1
Out of stock

6

STOPPER

82M-12437-00-00

1
Out of stock

7

WASHER, PLATE 2562171800

90201-08088-00

1

$1.07

In stock

8

IMPELLER, WATER PUMP

82M-12451-00-00

1
Out of stock

9

COVER,HOUSING

8AB-12422-01-00

1
Out of stock

10

GASKET,HSNG CVR 1

82M-12427-01-00

1
Out of stock

11

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

12

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

COVER

8BB-15779-00-00

1
Out of stock

16

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

17

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

18

BOLT, FLANGE(2UJ)

95814-08110-00

—

$5.66

In stock

19

BELT 1

82M-12444-00-00

—

$27.13

In stock

20

PIPE 1

82M-12481-00-00

1
Out of stock
