1994 Yamaha Vmax 600 (VX600U) Crankcase Diagram

← All diagrams

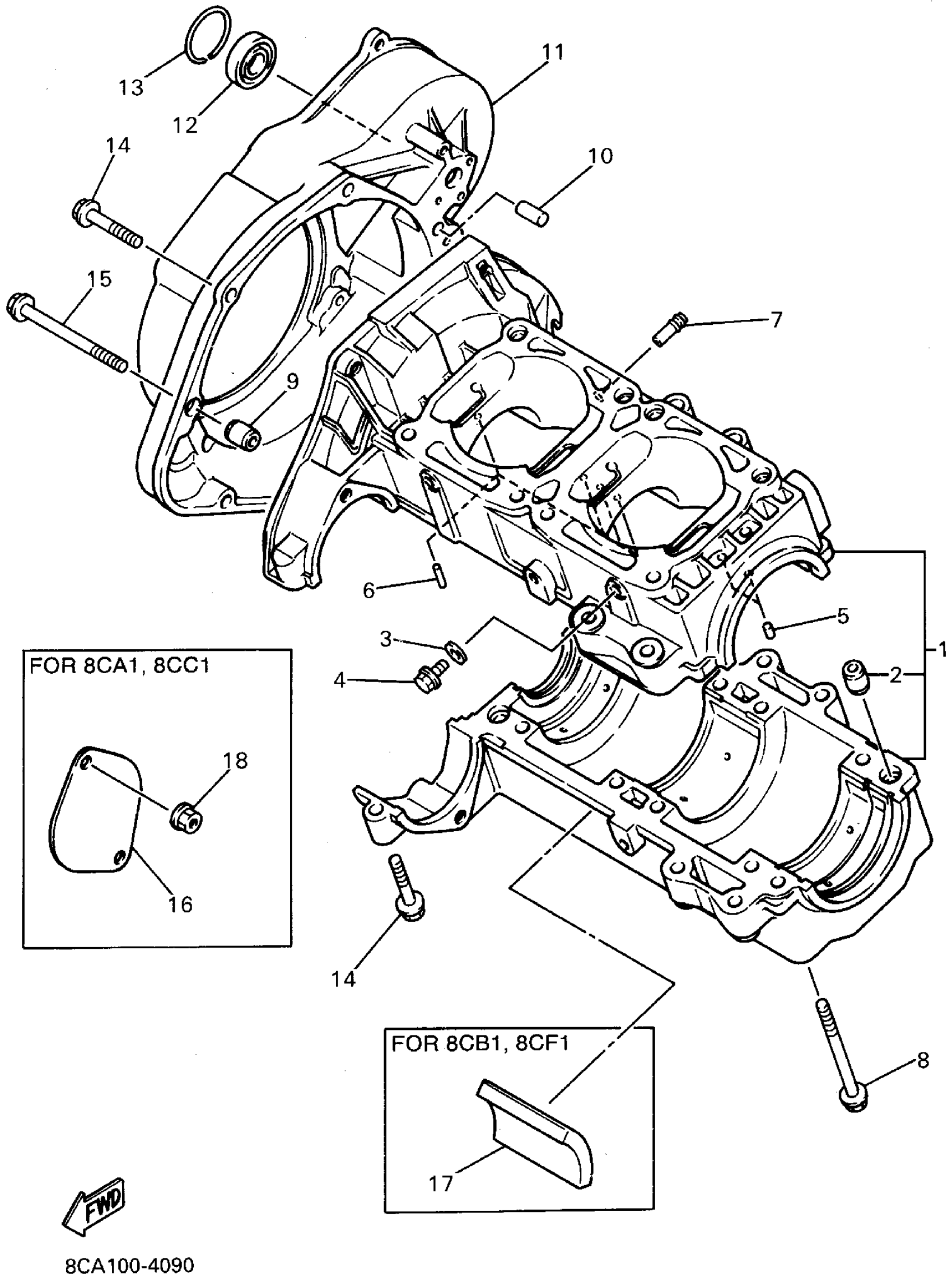

Find the part on the Crankcase diagram for your 1994 Yamaha Vmax 600 (VX600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax 600 (VX600U) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8AB-15100-01-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

WASHER, PLATE 3411117500

90201-08087-00

1

$3.13

In stock

4

BOLT, SMALL FLANGE

95027-08016-00

1
Out of stock

5

PIN, DOWEL (8H1)

93604-07141-00

1

$1.35

In stock

6

PIN (2H7)

93603-10049-00

—
Out of stock

7

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

8

BOLT, FLANGE(8BN)

95817-08085-00

1
Out of stock

9

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

10

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

11

COVER, CRANKCASE 2

8AB-15421-00-00

1
Out of stock

12

BEARING(82M)

93306-20117-00

1
Out of stock

13

CIRCLIP(82M)

93450-34118-00

1
Out of stock

14

BOLT, FLANGE

95817-08040-00

1

$5.43

In stock

15

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

16

PLATE

8K4-12633-00-00

1
Out of stock

17

DAMPER, ENGINE MOUNT 1

84N-15316-00-00

1
Out of stock

18

NUT, FLANGE

95704-08500-00

—
Out of stock
