1994 Yamaha Vmax 600 (VX600U) Engine Bracket Diagram

← All diagrams

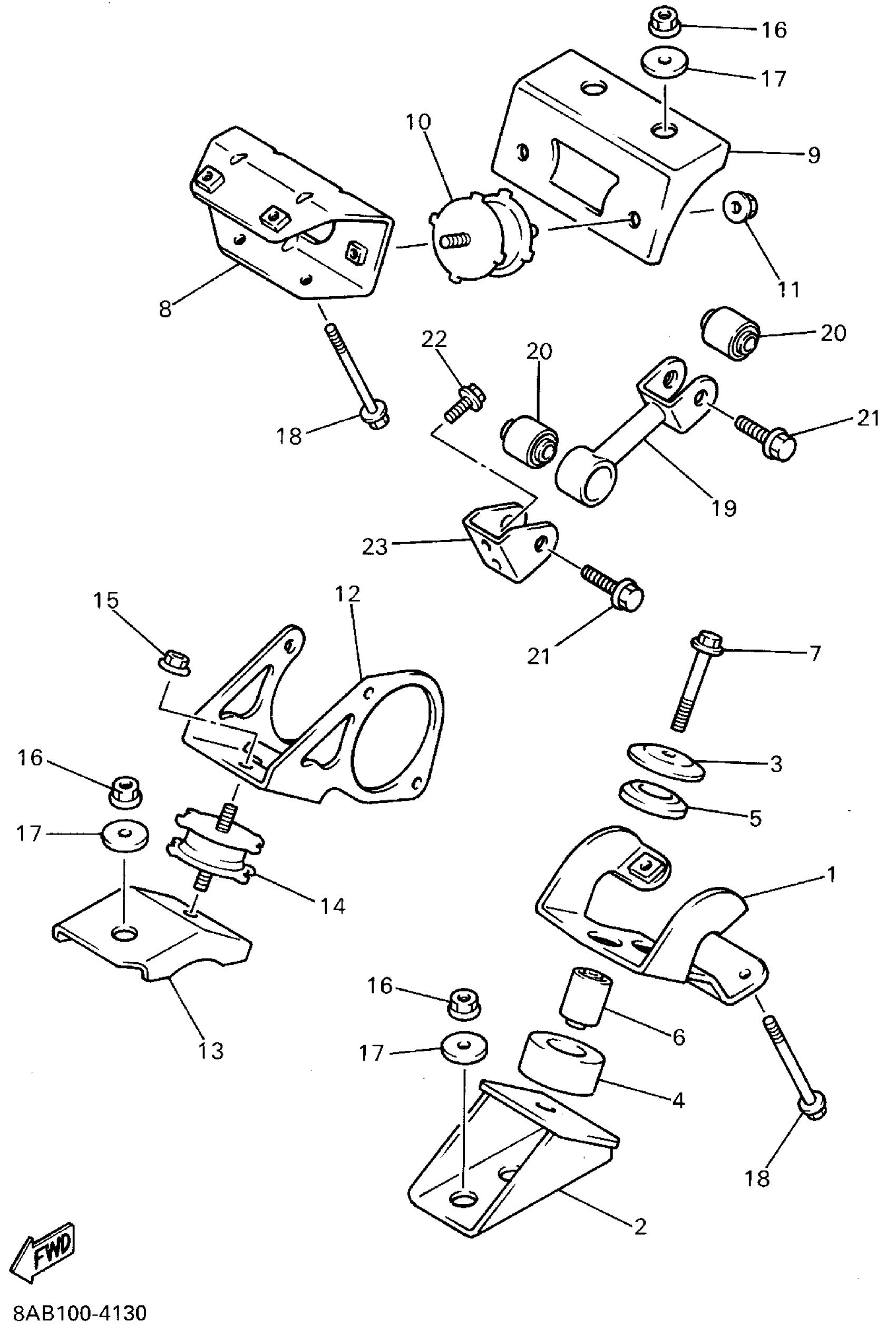

Find the part on the Engine Bracket diagram for your 1994 Yamaha Vmax 600 (VX600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax 600 (VX600U) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

82M-21415-00-00

1
Out of stock

2

BRACKET, FRONT LOWER 1

8AB-21417-00-00

1
Out of stock

3

WASHER, CONICAL SPRING

90208-10034-00

1
Out of stock

4

DAMPER, RUBBER 1

8U9-21485-00-00

1
Out of stock

5

DAMPER 2

8U9-21486-00-00

1
Out of stock

6

BUSH, SOLID

90380-10113-00

1
Out of stock

7

BOLT, FLANGE(8AB)

95817-10050-00

1

$5.03

In stock

8

BRACKET, REAR UPPER 1

82M-21425-00-00

—

$14.58

In stock

9

BRACKET, REAR LOWER 1

8AB-21427-00-00

1
Out of stock

10

DAMPER 2

8M6-21486-02-00

1
Out of stock

11

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

12

BRACKET,FRT UPR 2

8AB-21416-01-00

1
Out of stock

13

BRACKET, FRONT LOWER 1

85L-21417-00-00

—

$14.48

In stock

14

DAMPER 2

8M6-21486-02-00

1
Out of stock

15

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

16

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

17

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

18

BOLT, FLANGE

95817-08075-00

—

$3.37

In stock

19

STAY, ENGINE 2

8AB-21315-00-00

1
Out of stock

20

DAMPER, RUBBER 1

89A-21485-00-00

1
Out of stock

21

BOLT, SMALL FLANGE

95027-10035-00

—

$3.62

In stock

22

BOLT, FLANGE(2UJ)

95024-08020-00

—

$6.68

In stock

23

BRACKET 1

8AB-2148U-00-00

1
Out of stock
