- Vmax 600 (VX600U)
Carburetor
1994 Yamaha Vmax 600 (VX600U) Carburetor Diagram

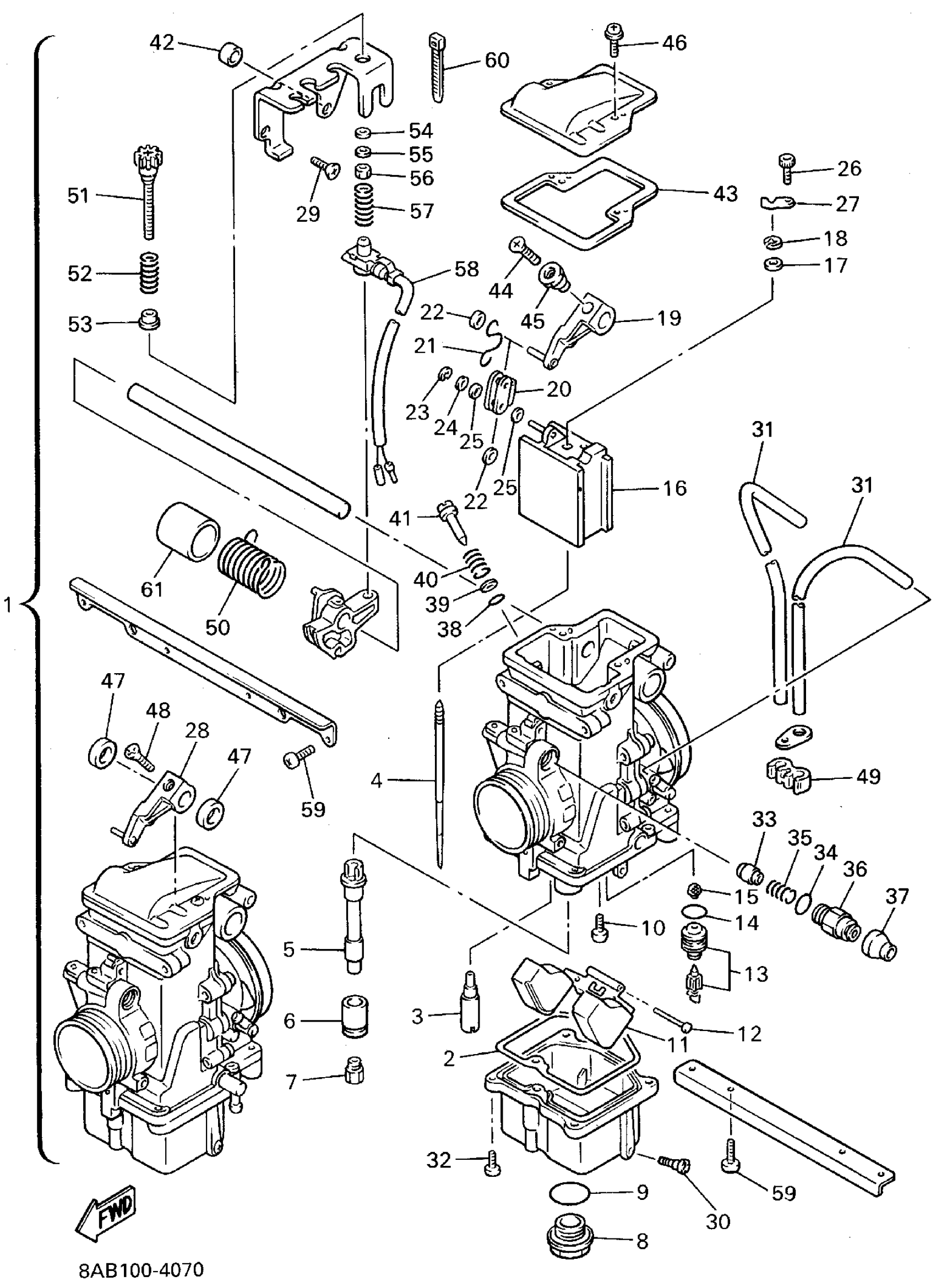

Find the part on the Carburetor diagram for your 1994 Yamaha Vmax 600 (VX600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR
8CA-14100-02-00
4
. NEEDLE
8CA-14116-00-00
5
. NOZZLE, MAIN
8AY-14141-56-00
7
JET, MAIN (#145)
3G2-14231-29-00
7
. JET, MAIN (#1588)
3G2-1423E-63-00
9
O-RING (541)
558-14147-00-00
10
SCREW
2LN-14565-00-00
11
. FLOAT
8AY-14185-10-00
12
PIN, FLOAT
537-14186-00-00
14
O-RING
8F2-14147-00-00
15
NET, FILTER
1J7-14994-00-00
17
. WASHER (T=08MM)
8AY-14227-00-00
19
. LEVER
8AY-14905-00-00
20
. PLATE
8AY-14243-00-00
21
. CLIP
8AY-14137-00-00
27
. PLATE
8AY-14945-00-00
28
. LEVER
8AY-14573-00-00
29
SCREW, FLAT
98707-05012-00
31
HOSE
88R-14987-00-00
36
. HOLDER
8AY-14261-00-00
37
COVER, PLUNGER CAP
22F-14173-00-00
40
. SPRING, AIR ADJUSTING
3F7-14134-00-00
41
. SCREW, AIR ADJUSTING
3A3-14123-00-00
42
. COLLAR
8AY-14264-00-00
43
. GASKET
8AY-14199-00-00
44
. SCREW, FLAT HEAD (98701-05018-00)
98703-05018-00
45
. RING
8AY-14918-00-00
46
SCREW, PAN HEAD WITH WASHER
97607-04108-00
47
. SPACER
583-14264-00-00
50
. SPRING
8AY-14275-00-00
55
. WASHER
1UF-14952-00-00
60
CLIP, PIPE
35H-14139-00-00
61
. COLLAR
8AY-14265-00-00
