2016 Kawasaki Vulcan® S Taillight Diagram

← All diagrams

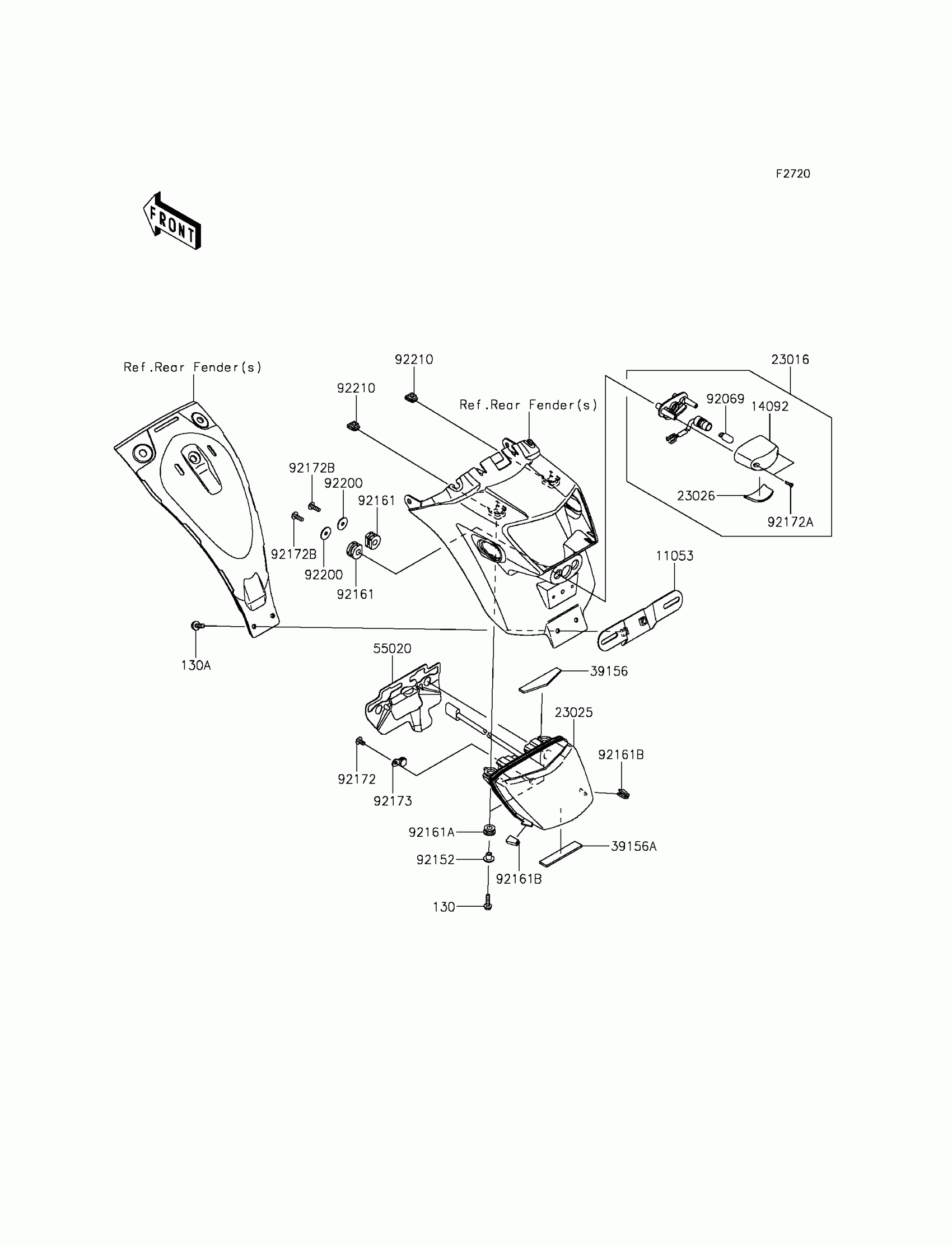

Find the part on the Taillight diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X20

130BA0520

1

$0.92

In stock

130A

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

11053

BRACKET,LICENSE

11053-0400

1

$13.08

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENCE

23016-0557

1

$73.13

In stock

23025

LAMP-TAIL,LED

23025-0342

1

$263.57

In stock

23026

LENS,LICENSE LAMP

23026-0015

1

$29.34

In stock

39156

PAD,20X80X3

39156-1869

1

$1.80

In stock

39156A

PAD,15X76X3

39156-1928

1

$0.98

In stock

55020

GUARD,TAIL LAMP

55020-1882

1

$18.49

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92152

COLLAR

92152-1592

1
Out of stock

92161

DAMPER

92161-0776

1

$4.39

In stock

92161A

DAMPER,8X18X8.1

92161-1369

1

$1.44

In stock

92161B

DAMPER,TAIL LAMP

92161-1694

1

$1.47

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1

$1.20

In stock

92172A

1

$1.53

In stock

92172B

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92173

CLAMP

92173-1337

1

$1.10

In stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock
