2016 Kawasaki Vulcan® S Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

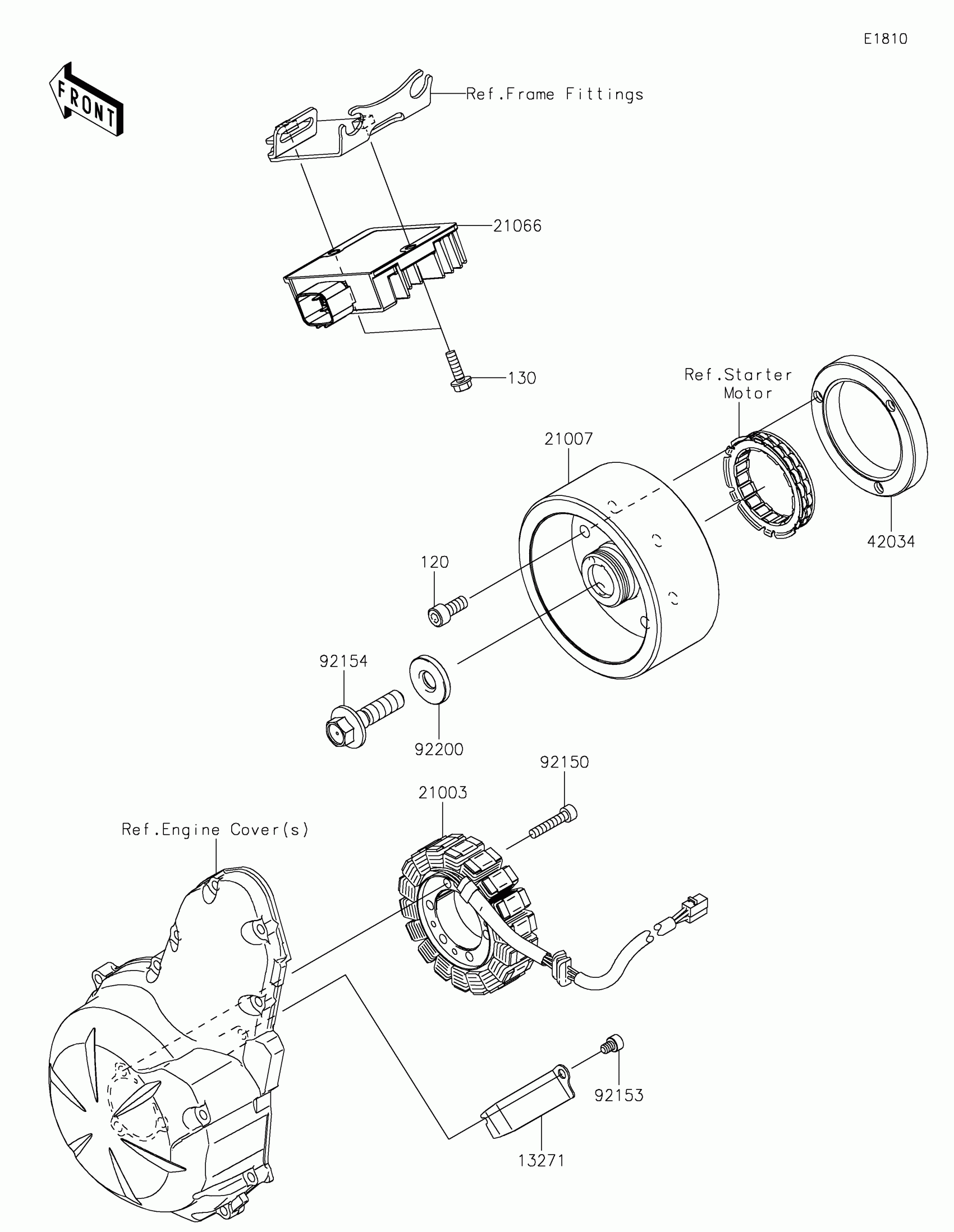

2016 Kawasaki Vulcan® S Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X18

120CA0818

1

$2.29

In stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

13271

PLATE

13271-0952

1
Out of stock

21003

STATOR

21003-0164

1

$363.35

In stock

21007

ROTOR

21007-0601

1

$531.63

In stock

21066

REGULATOR-VOLTAGE

21066-0720

1

$214.22

In stock

42034

COUPLING

42034-1143

1

$123.69

In stock

92150

BOLT,SOCKET,6X30

92150-1433

1

$3.87

In stock

92153

BOLT,SOCKET,6X8

92153-1414

1
Out of stock

92154

BOLT,FLANGED,12X45

92154-1812

1

$17.47

In stock

92200

WASHER,12X33X5

92200-0220

1
Out of stock
