2016 Kawasaki Vulcan® S Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

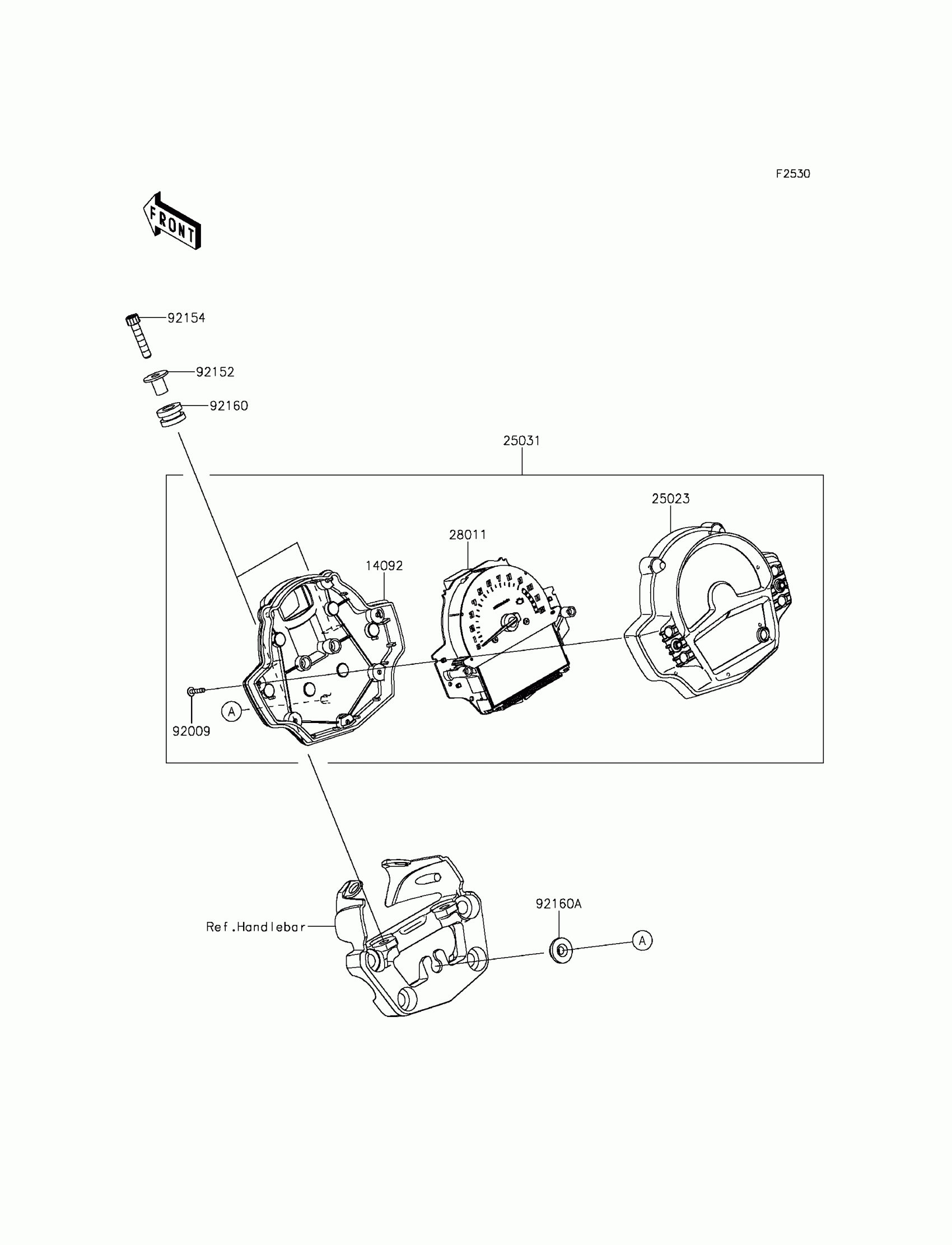

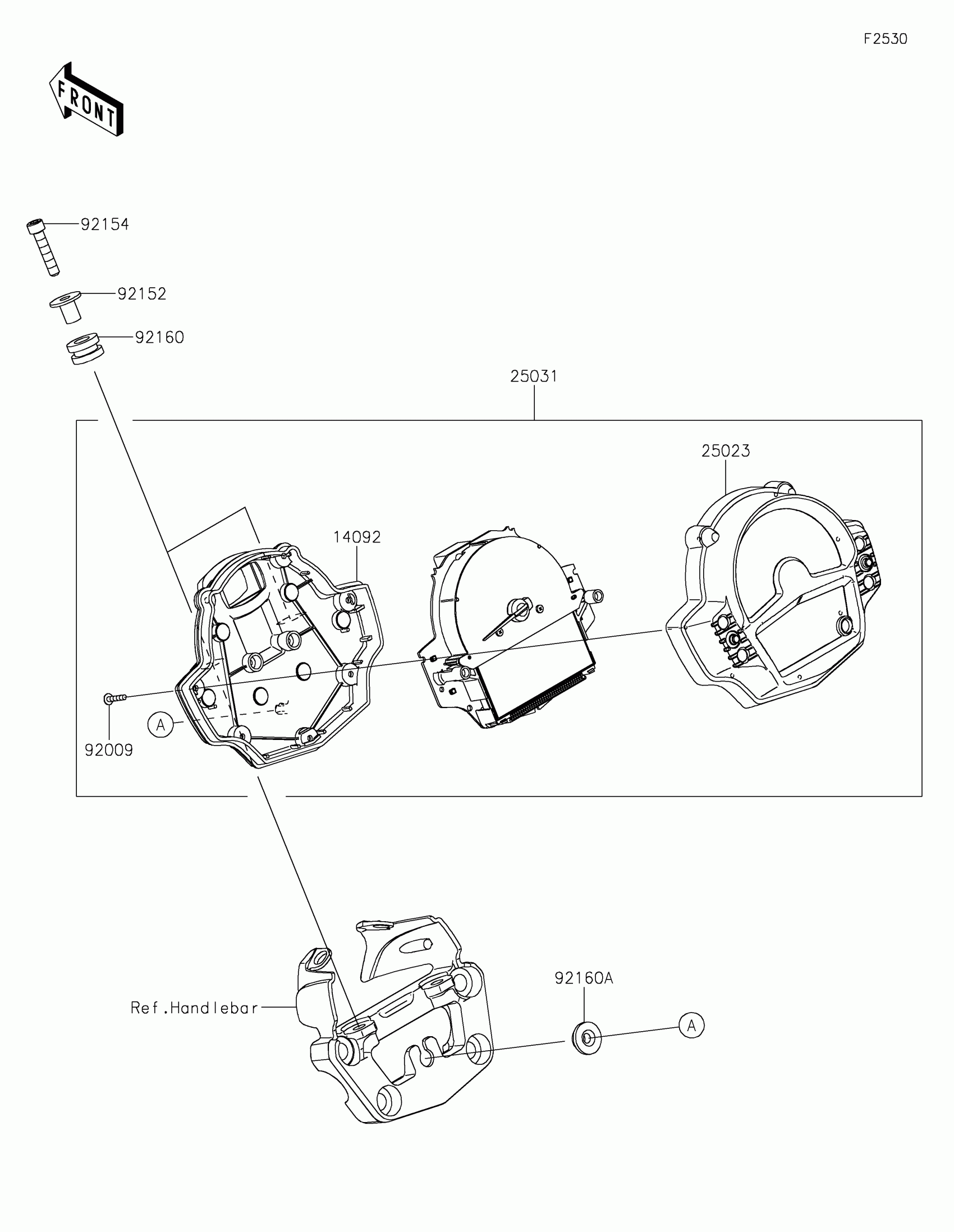

2016 Kawasaki Vulcan® S Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,METER

14092-0865

1

$120.60

In stock

25023

COVER-METER CASE

25023-0102

1

$201.32

In stock

25031

1

$845.50

In stock

28011

METER,TACHO&LCD

28011-0619

1

$519.95

In stock

92009

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92152

COLLAR,6.3X9.5X13.5

92152-1942

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0962

1

$1.10

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock
