2016 Kawasaki Vulcan® S Ignition Switch/locks/reflectors Diagram

← All diagrams

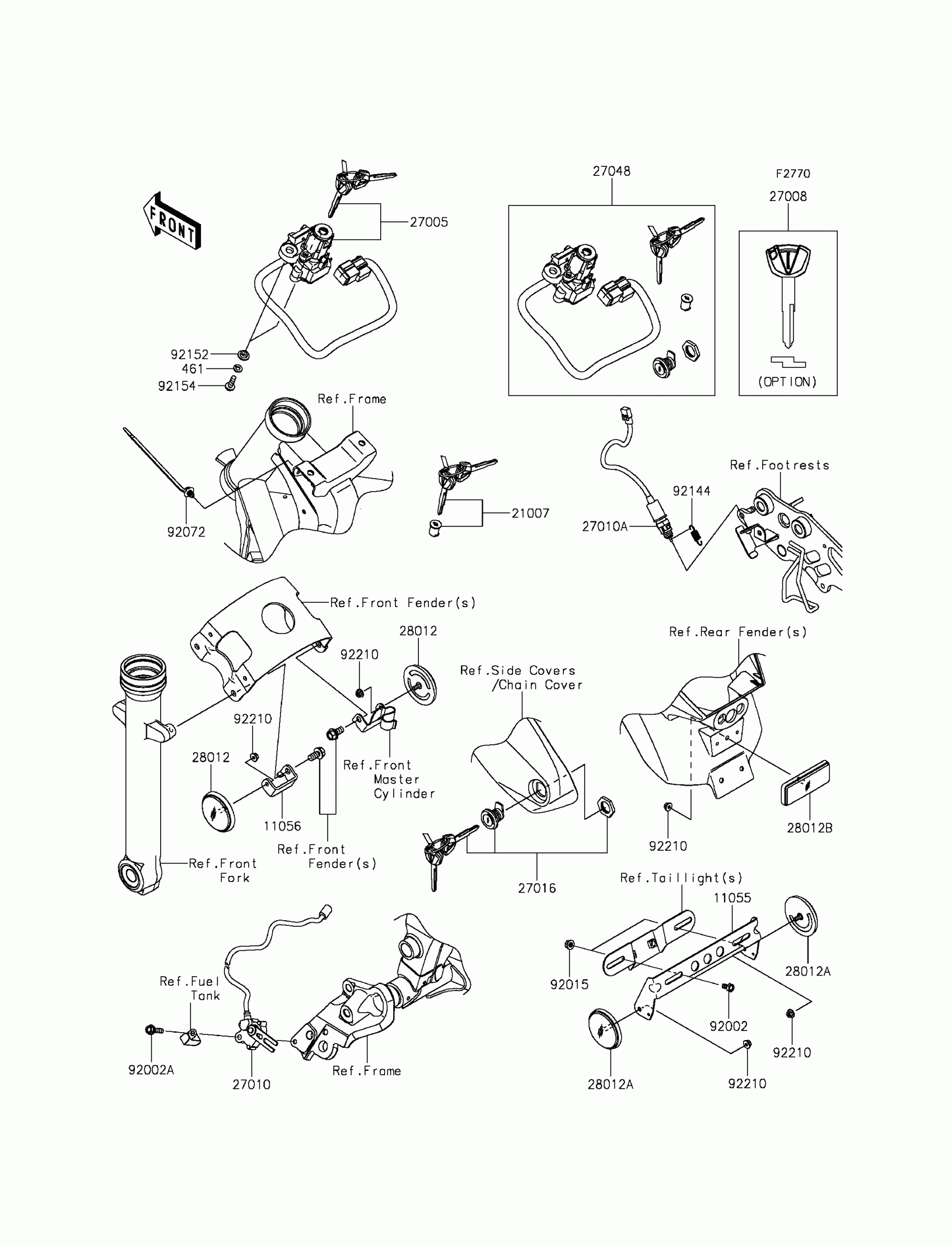

Find the part on the Ignition Switch/locks/reflectors diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock

11055

BRACKET,REFLECTOR

11055-1092

1

$33.99

In stock

11056

1

$2.92

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5077

1

$126.11

In stock

27005

1

$178.58

In stock

27008

KEY-LOCK,BLANK

27008-0596

1

$20.30

In stock

27010

SWITCH,SIDE STAND

27010-0722

1

$118.06

In stock

27010A

SWITCH,RR BRAKE

27010-0760

1

$33.64

In stock

27016

LOCK-ASSY

27016-5387

1

$92.11

In stock

27048

SWITCH-ASSY

27048-5053

1

$410.39

In stock

28012

1

$22.37

In stock

28012A

REFLECTOR-REFLEX

28012-0002

1

$22.37

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92002

BOLT,6X12

92002-1132

1

$1.32

In stock

92002A

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92072

1

$2.97

In stock

92144

1

$4.34

In stock

92152

COLLAR,6.15X10.15X6

92152-1535

1

$2.97

In stock

92154

BOLT,FLANGED,6X20

92154-0107

1

$2.10

In stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
