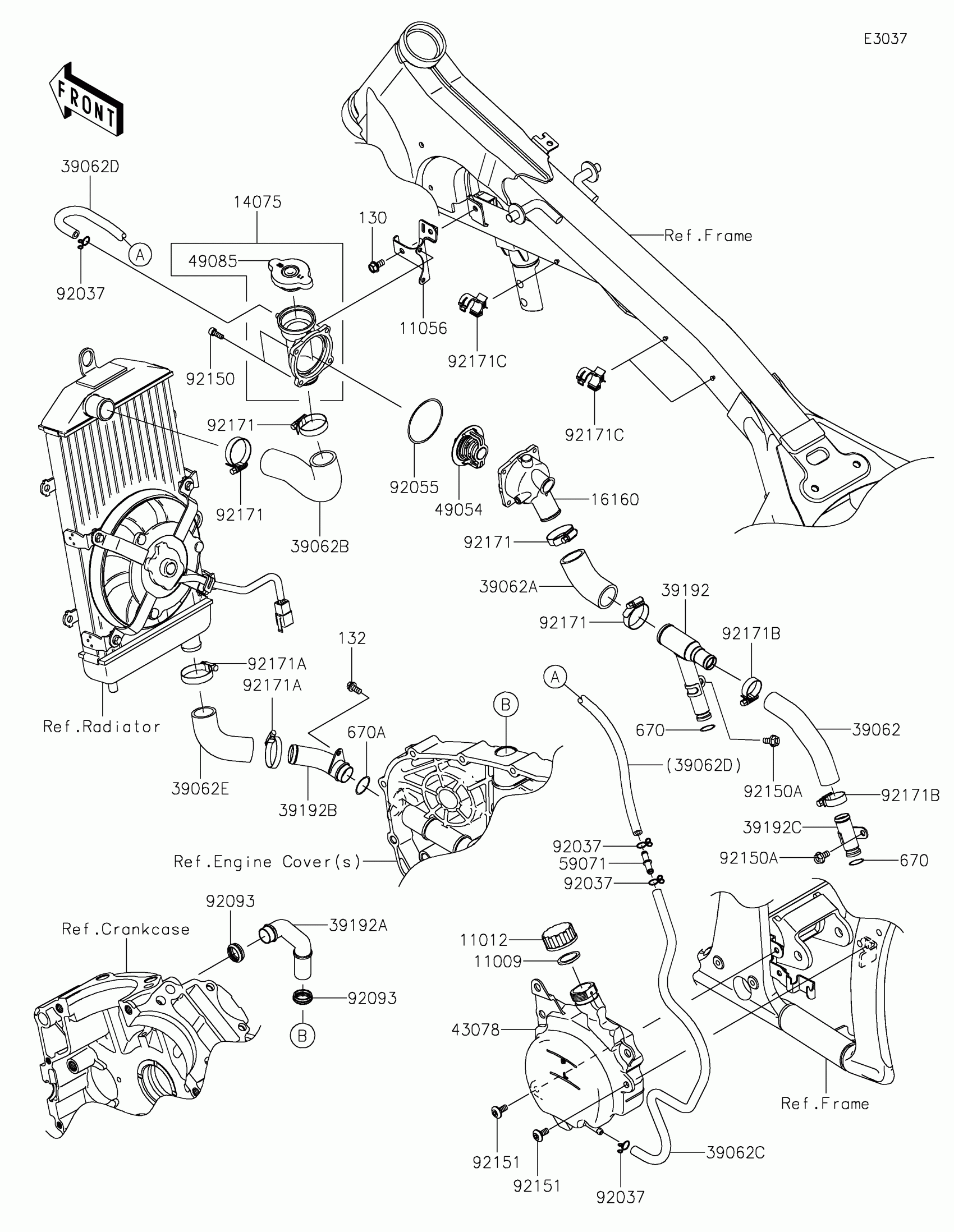

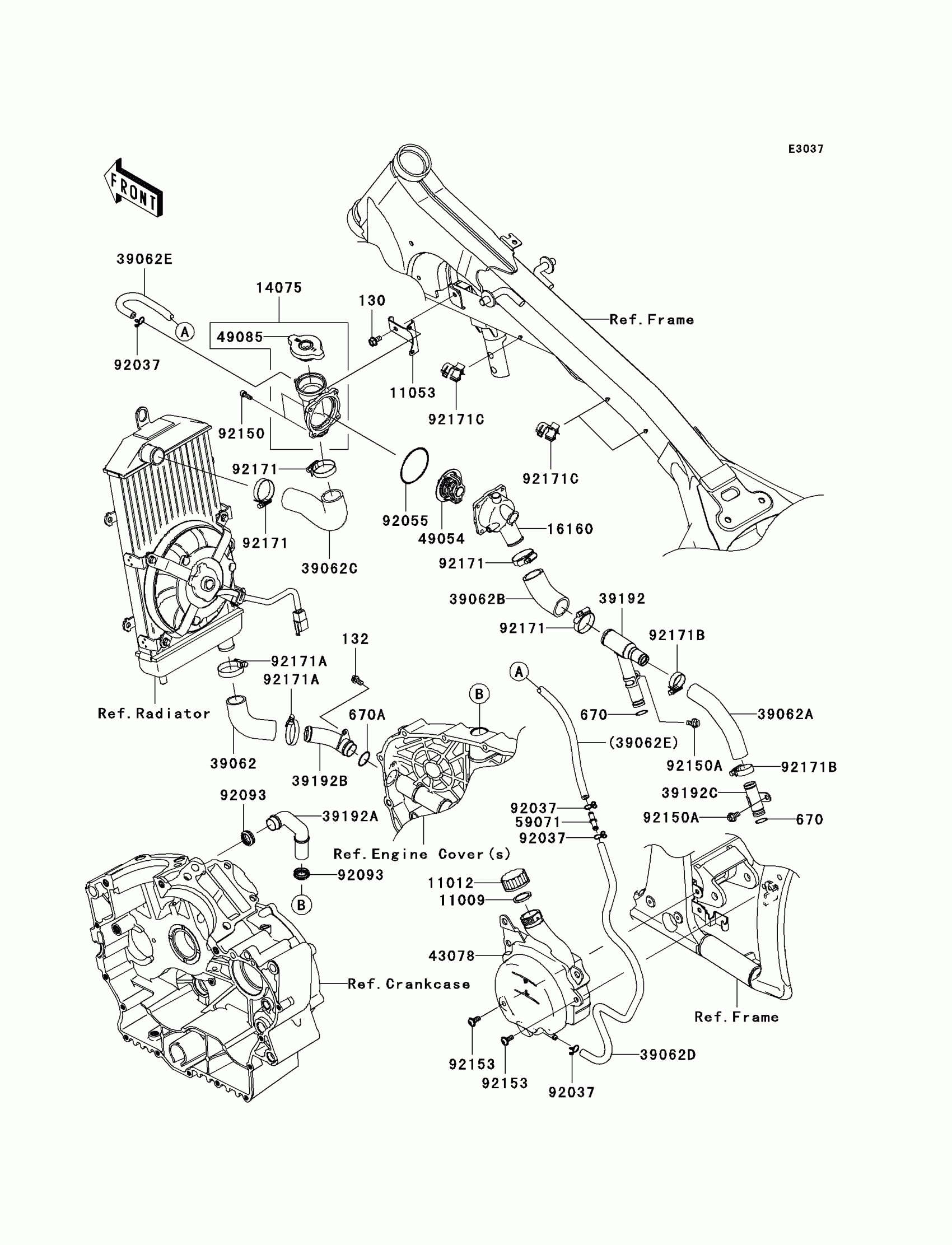

2009 Kawasaki Vulcan® 900 Custom Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BB0614

1

$1.84

In stock

132

1

$1.73

In stock

670

O RING,14MM

670B2014

1

$1.08

In stock

670A

O RING,21MM

670B2021

1

$3.72

In stock

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

11053

BRACKET,THERMO CASE

11053-1989

1

$4.63

In stock

14075

CAP-ASSY

14075-0001

1

$145.52

In stock

16160

BODY,THERMOSTAT

16160-0095

1

$66.77

In stock

39062

1

$10.54

In stock

39062A

1

$10.75

In stock

39062B

1

$8.69

In stock

39062C

1

$17.54

In stock

39062D

1

$10.75

In stock

39062E

1

$14.25

In stock

39192

PIPE-WATER,FR HEAD

39192-0042

1

$54.48

In stock

39192A

PIPE-WATER

39192-0043

1

$31.36

In stock

39192B

PIPE-WATER

39192-0044

1

$31.36

In stock

39192C

PIPE-WATER,RR HEAD

39192-0048

1

$16.37

In stock

43078

RESERVOIR

43078-0029

1
Out of stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

59071

JOINT

59071-3717

1

$3.07

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,53.5X2.6

92055-112

1

$5.25

In stock

92093

SEAL

92093-1427

1

$3.69

In stock

92150

BOLT,SOCKET,5X14

92150-1180

1

$3.53

In stock

92150A

BOLT,FLANGED,6X12

92150-1826

1

$3.20

In stock

92153

BOLT,SOCKET,6X15

92153-1451

1
Out of stock

92171

CLAMP

92171-0179

1

$6.51

In stock

92171A

CLAMP

92171-0261

1

$13.29

In stock

92171B

CLAMP

92171-0338

1

$6.64

In stock

92171C

CLAMP,DIA=15

92171-1424

1

$3.33

In stock
