2009 Kawasaki Vulcan® 900 Custom Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

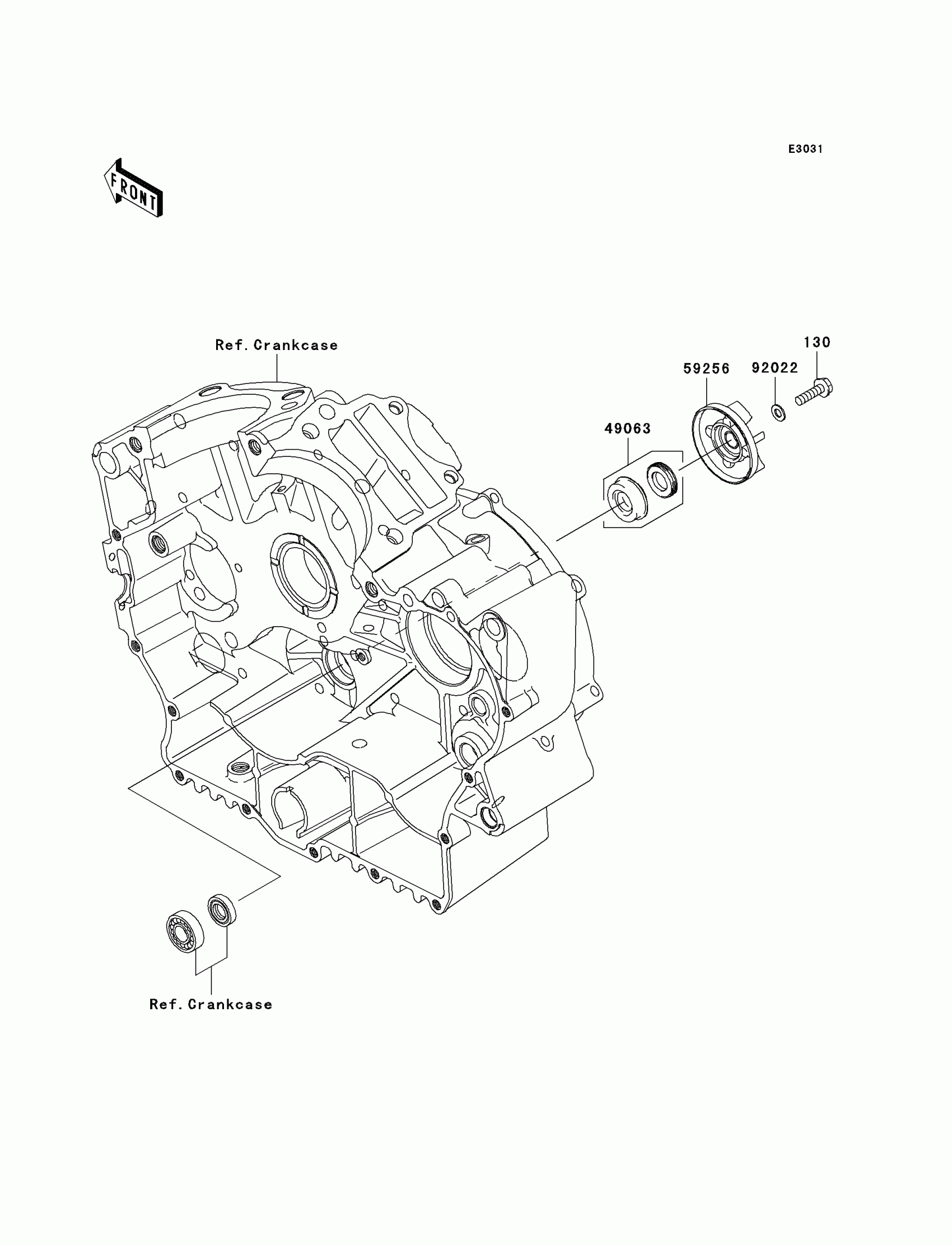

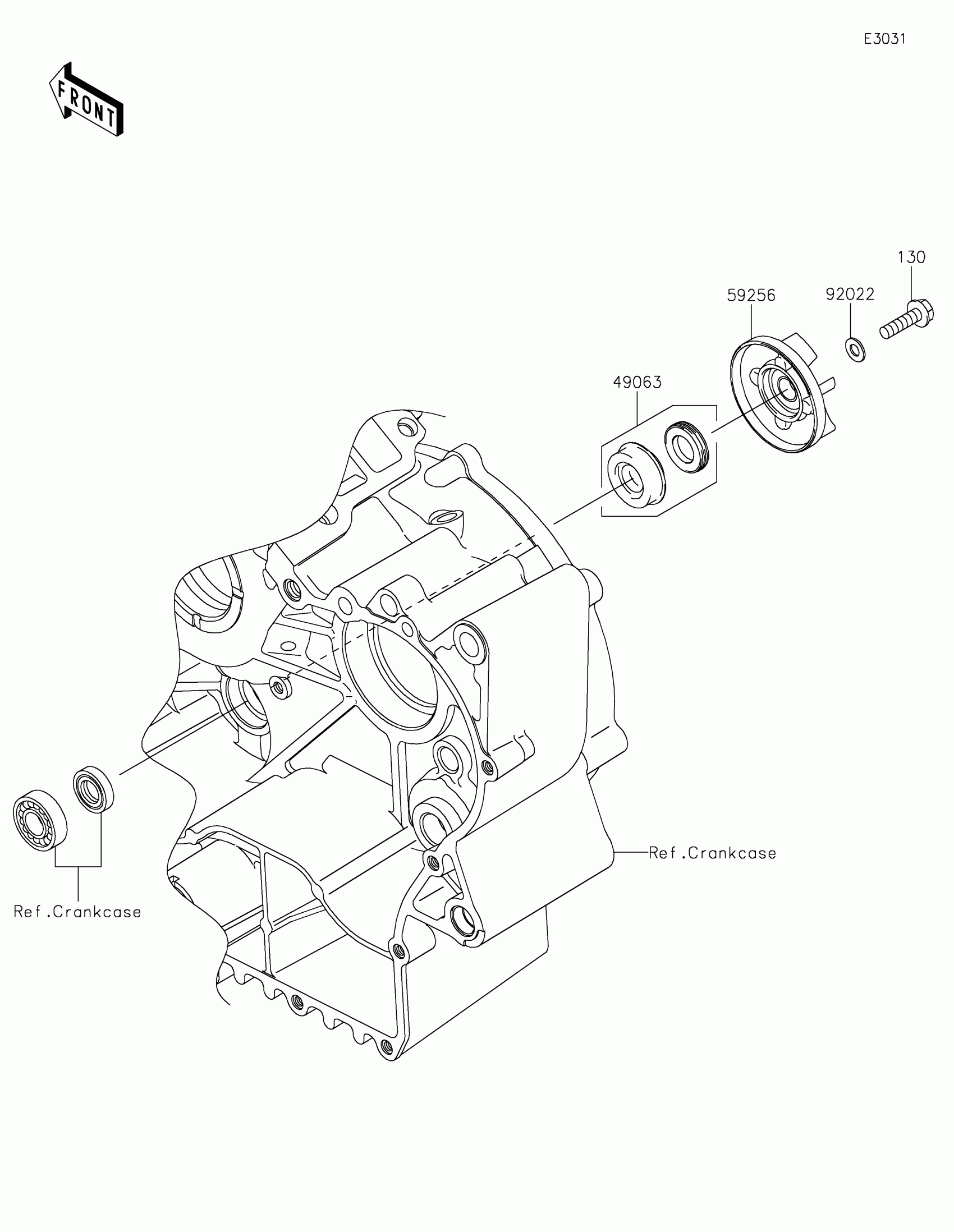

2009 Kawasaki Vulcan® 900 Custom Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130R0622

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

59256

IMPELLER

59256-1073

1

$36.81

In stock

92022

1

$3.13

In stock
