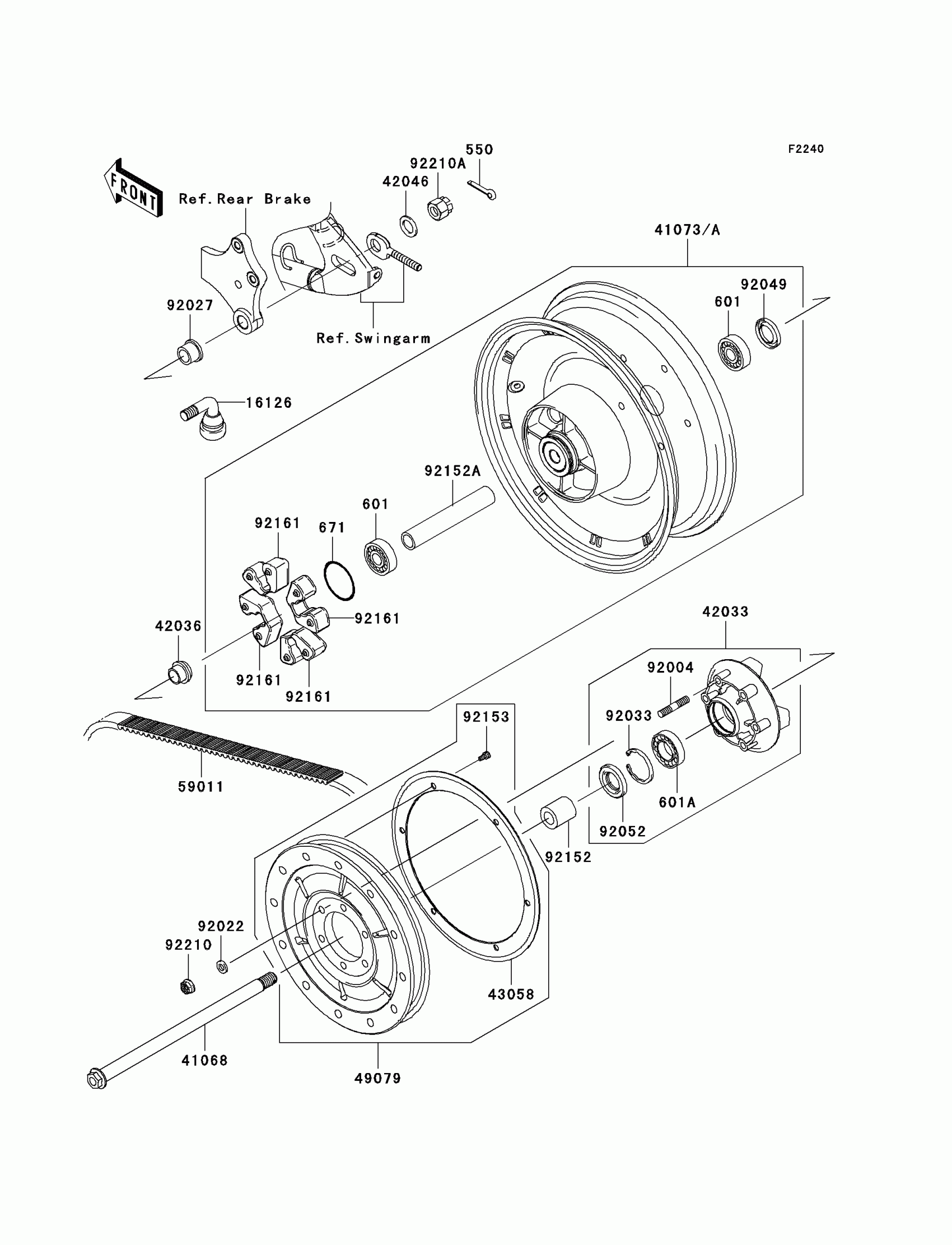

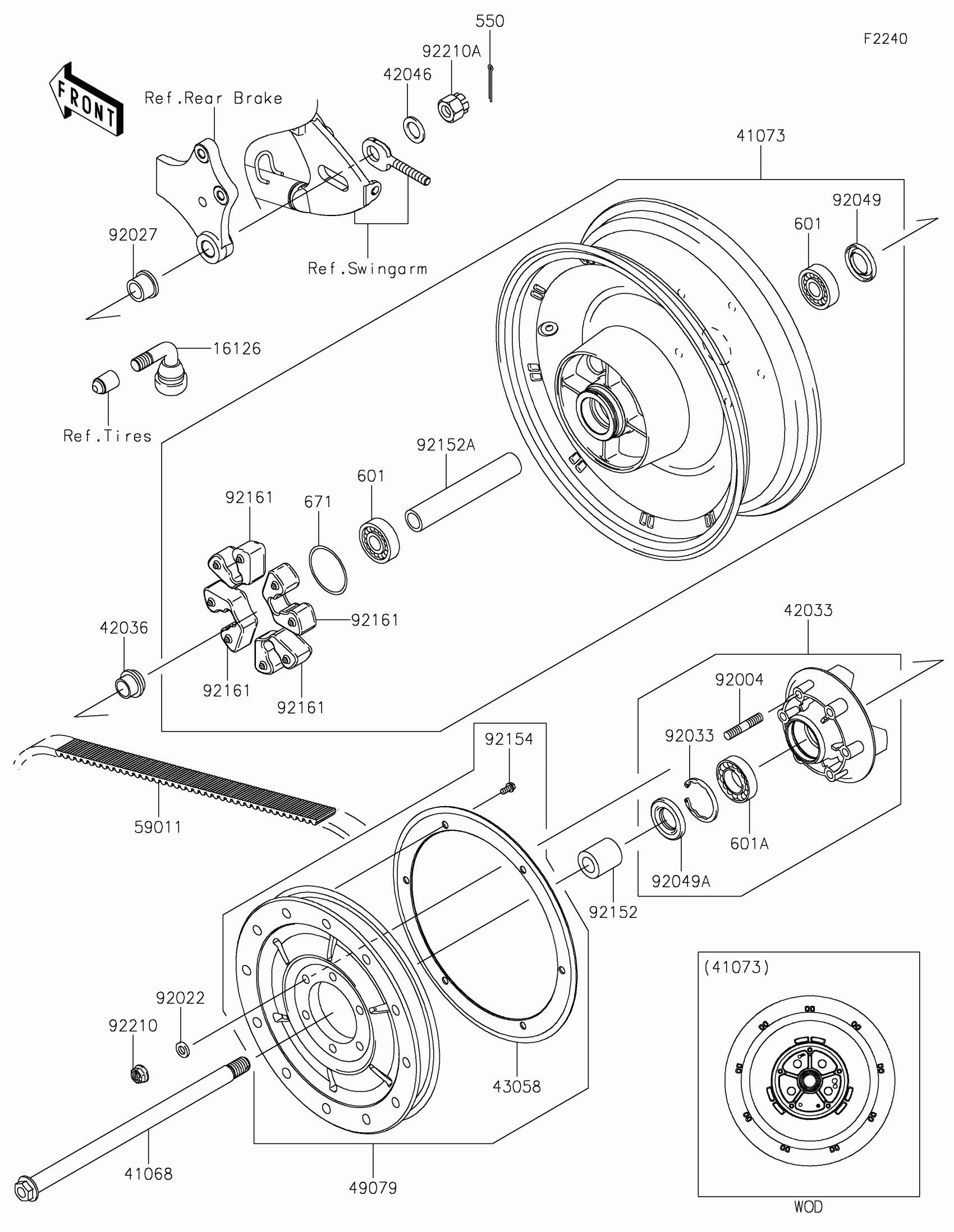

Find the part on the Rear Wheel/chain diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550AA4035

1
Out of stock

601

BEARING-BALL,6204UUC3

601B6204UU

1
Out of stock

601A

BEARING-BALL

601B6205UU

1
Out of stock

671

O RING,60MM

671B2560

1
Out of stock

16126

VALVE,TIRE

16126-0036

1
Out of stock

41068

AXLE,RR

41068-0057

1
Out of stock

41073

WHEEL-ASSY,RR

41073-0083

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0022

1
Out of stock

42036

SLEEVE,RR HUB,L=23

42036-1251

1
Out of stock

42046

WASHER,21X33X2.6

42046-003

1
Out of stock

43058

RING,REAR PULLEY

43058-0011

1
Out of stock

49079

PULLEY-BELT

49079-0011

1
Out of stock

59011

BELT,DRIVE,153T

59011-0013

1
Out of stock

92004

STUD,10X35

92004-0016

1
Out of stock

92022

WASHER,10.5X19X3.2

92022-1820

1
Out of stock

92027

COLLAR,RR AXLE,L=21.5

92027-1902

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92152

COLLAR,RR AXLE,LH,L=38.6

92152-0350

1
Out of stock

92152A

COLLAR,REAR BRAKE DRUM,L=166.4

92152-0351

1
Out of stock

92153

BOLT,SOCKET,6X12

92153-1525

1
Out of stock

92161

DAMPER,SHOCK,RR HUB

92161-0466

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

92210A

NUT,CASTLE,18MM

92210-1134

1
Out of stock
