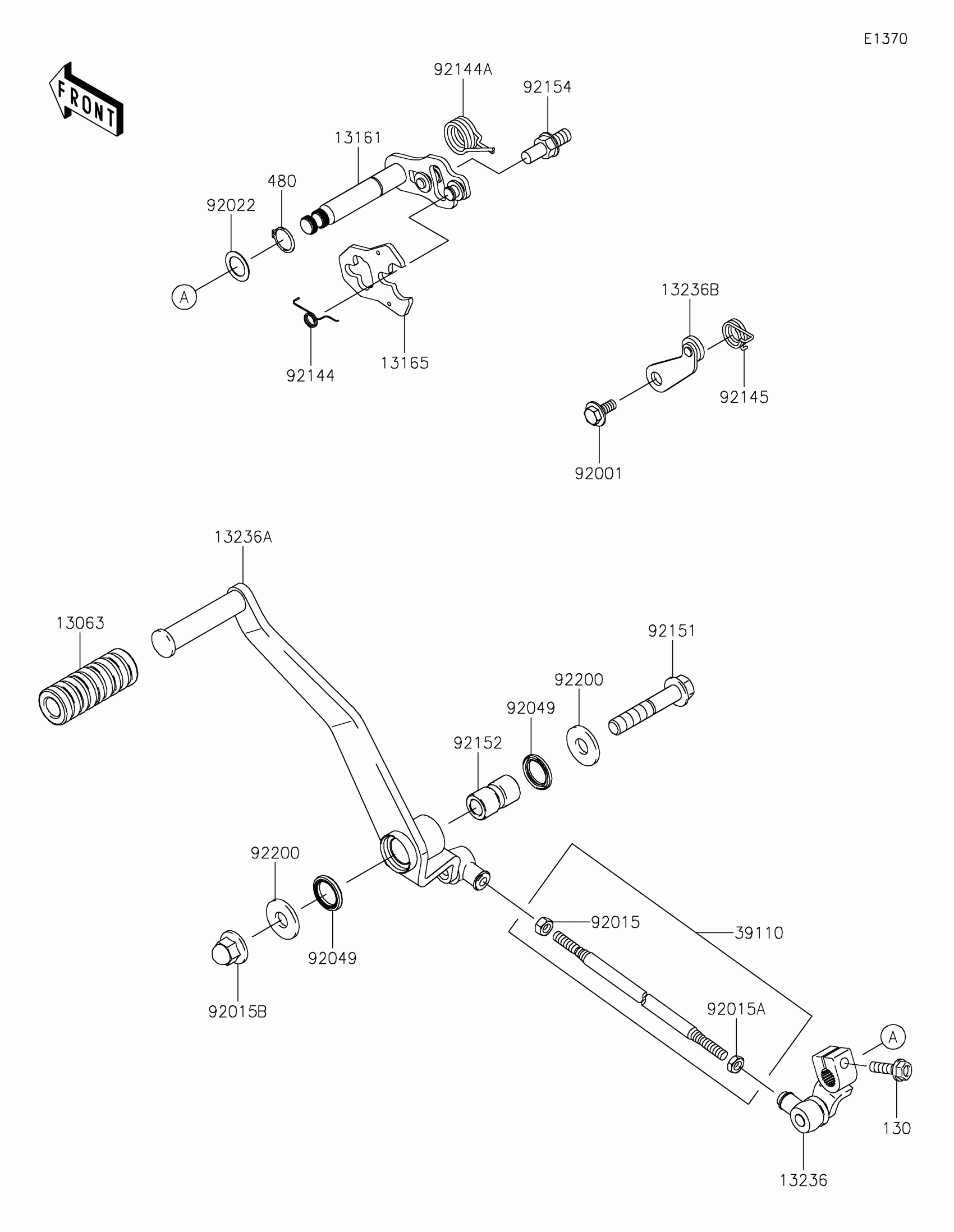

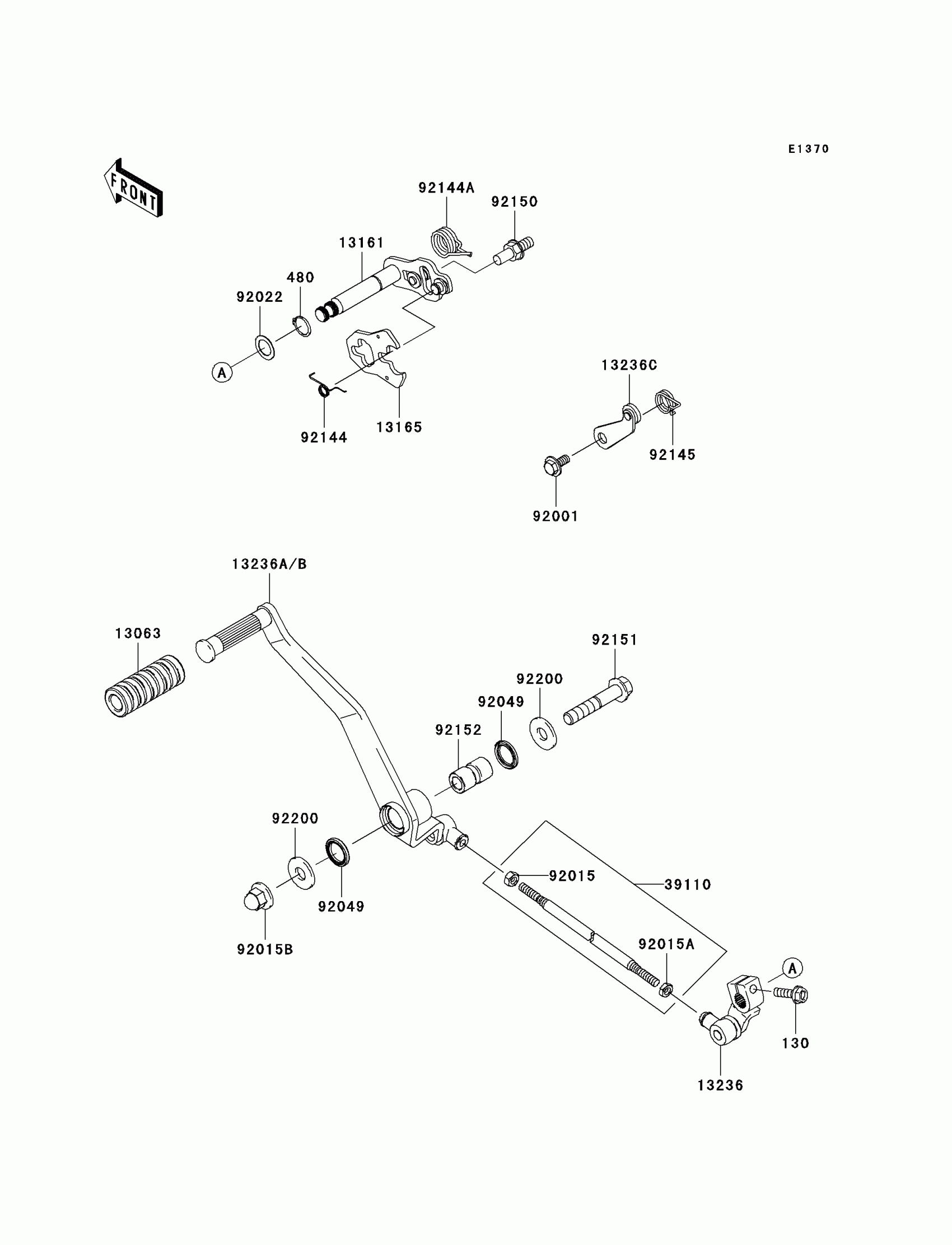

Kawasaki Vulcan® 900 Custom Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CB0620

$5.84

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13063

DAMPER,PEDAL

13063-002

$3.44

13161

LEVER-COMP-CHANGE SHAFT

13161-0046

$69.44

13165

PAWL,CHANGE LEVER

13165-1151

$13.39

13236

LEVER-COMP

13236-0132

Unavailable

13236A

LEVER-COMP

13236-0133

$137.01

13236C

LEVER-COMP,POSITION

13236-1126

$12.95

39110

ROD-ASSY-TIE

39110-1100

$16.78

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92015

NUT,6MM

92015-1443

$2.99

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.57

92015B

NUT,10MM

92015-1649

$3.79

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92049

SEAL-OIL

92049-0093

$4.27

92144

SPRING

92144-1029

$5.93

92144A

SPRING,CHANGE PEDAL RETURN

92144-1074

$7.18

92145

SPRING,RETURN

92145-0462

$7.22

92150

BOLT,RETURN SPRING

92150-1869

$8.37

92151

BOLT,FLANGED,10X54

92151-1785

$3.69

92152

COLLAR,10.5X17X30.5

92152-0531

$15.93

92200

WASHER,11X26X2.6

92200-0352

$2.34
