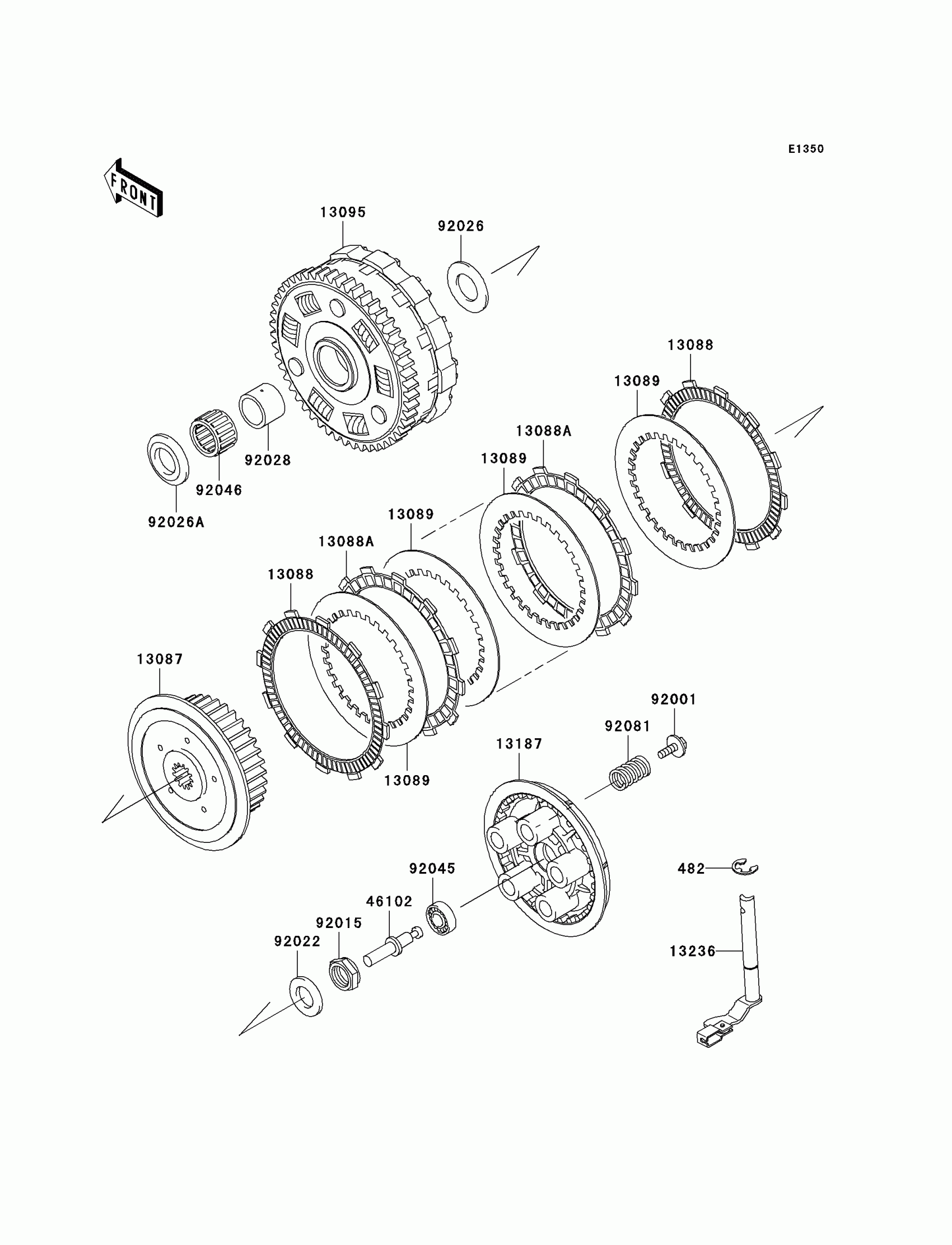

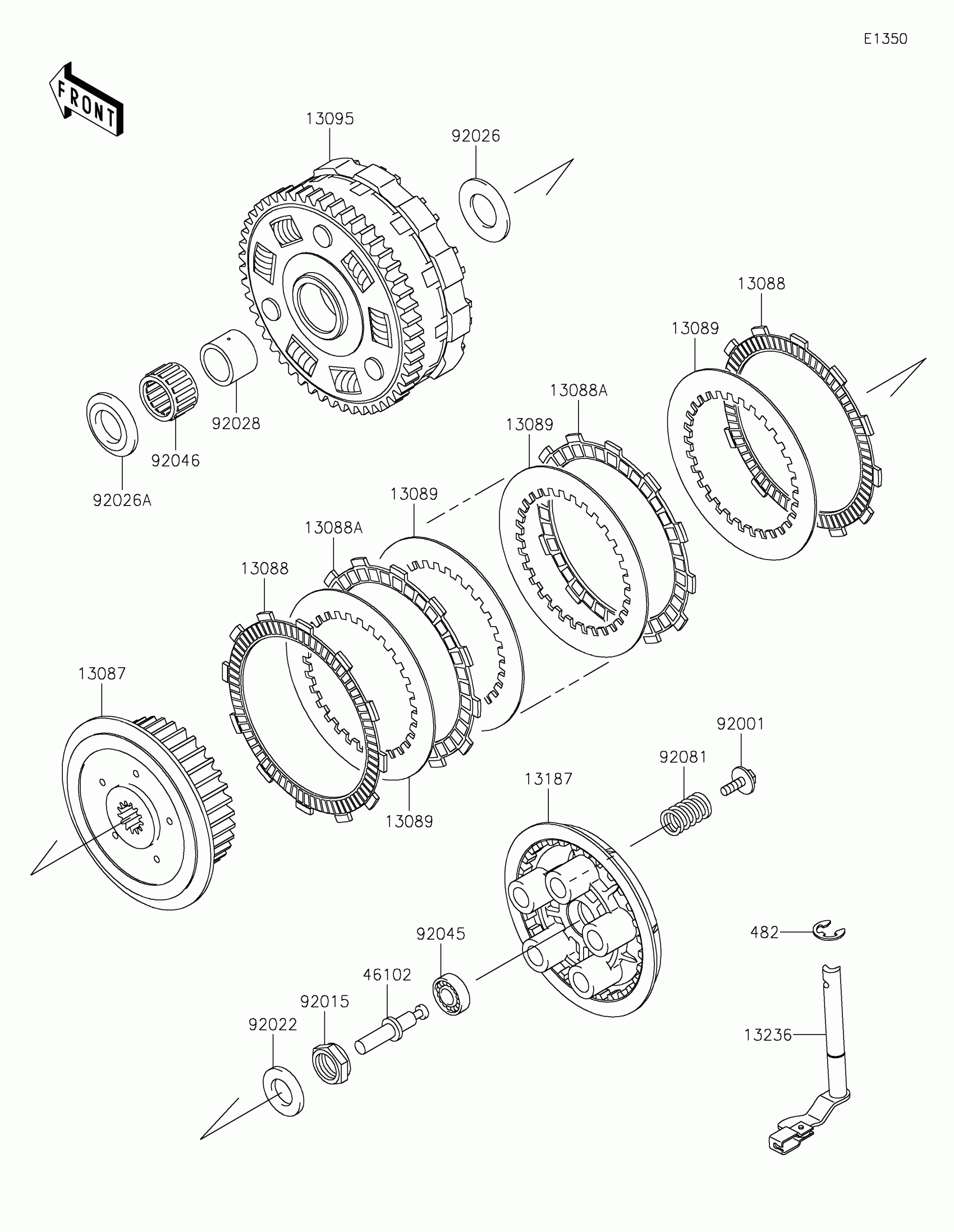

Find the part on the Clutch diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

1

$0.75

In stock

13087

HUB-CLUTCH

13087-0042

1

$149.11

In stock

13088

PLATE-FRICTION

13088-0023

1

$13.11

In stock

13088A

PLATE-FRICTION

13088-1133

1

$12.15

In stock

13089

PLATE-CLUTCH

13089-027

1

$10.14

In stock

13095

HOUSING-COMP-CLUTCH

13095-0054

1
Out of stock

13187

1

$76.98

In stock

13236

LEVER-COMP,CLUTCH RELEASE

13236-1269

1
Out of stock

46102

ROD,PULL

46102-1374

1

$15.43

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

1

$16.49

In stock

92028

BUSHING,25X32X23.6

92028-178

1

$23.53

In stock

92045

1

$12.85

In stock

92046

1

$19.92

In stock

92081

SPRING,CLUTCH

92081-1033

1

$5.88

In stock
