2009 Kawasaki Vulcan® 900 Custom Gear Change Drum/shift Fork Diagram

← All diagrams

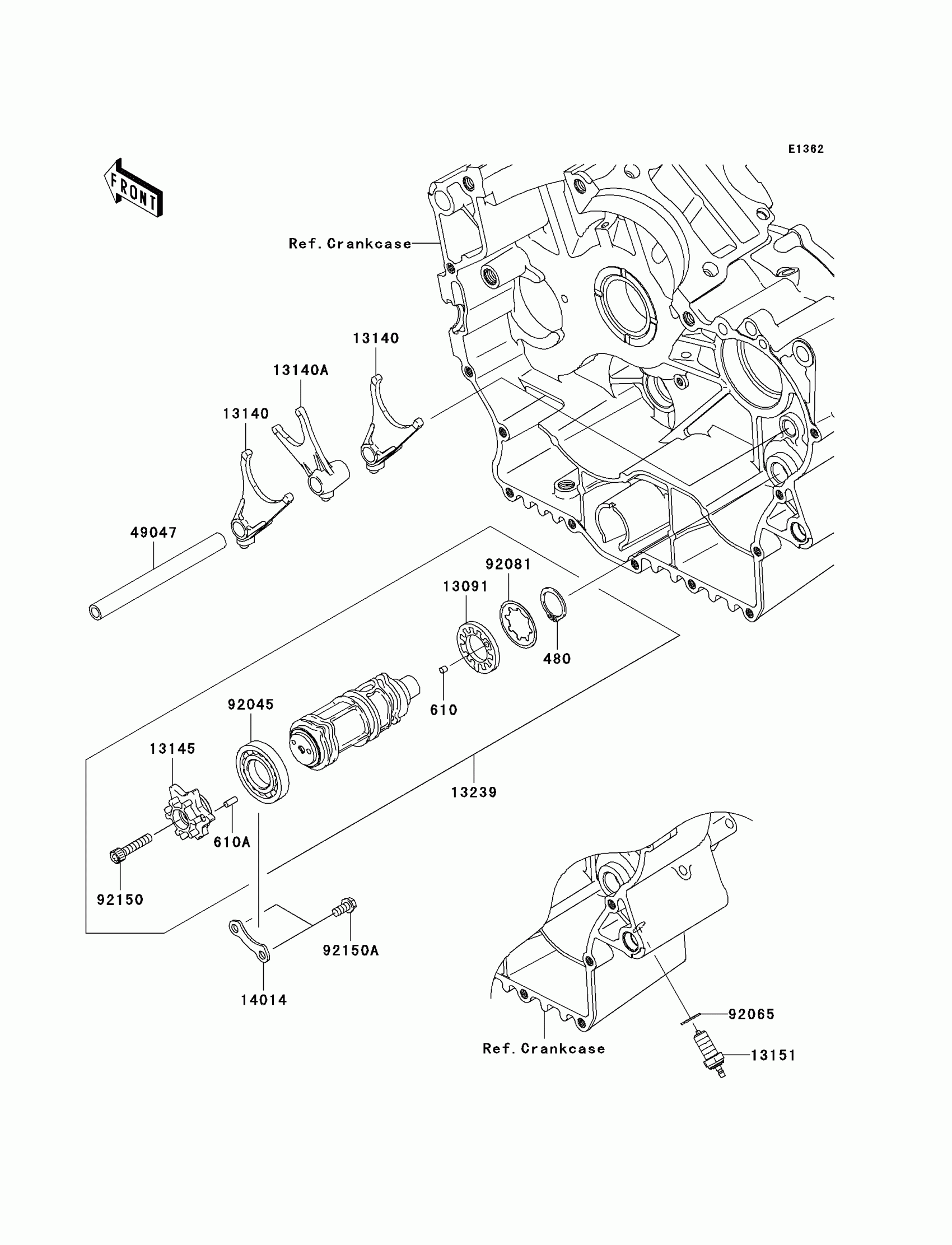

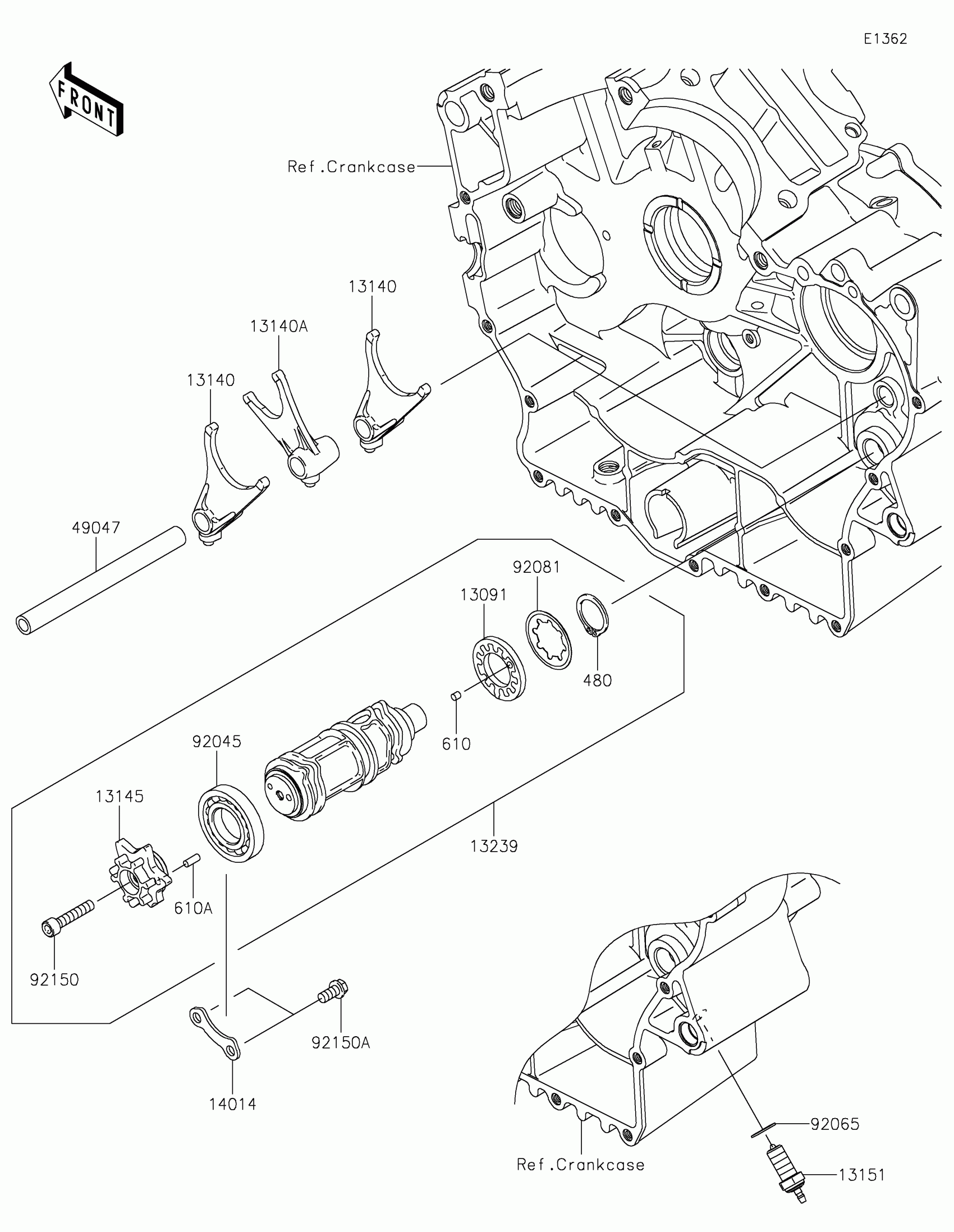

Find the part on the Gear Change Drum/shift Fork diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Vulcan® 900 Custom Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,22MM

480J2200

1
Out of stock

610

ROLLER,4X4

610A0404

1
Out of stock

610A

ROLLER,4X10

610A0410

1
Out of stock

13091

HOLDER,CHANGE DRUM

13091-1389

1
Out of stock

13140

FORK-SHIFT

13140-0031

1
Out of stock

13140A

FORK-SHIFT

13140-1138

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0028

1
Out of stock

13151

SWITCH-COMP

13151-1085

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0018

1
Out of stock

14014

PLATE-POSITION

14014-1014

1
Out of stock

49047

ROD-SHIFT

49047-0036

1
Out of stock

92045

BEARING-BALL,16005Z

92045-1030

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92081

SPRING

92081-1895

1
Out of stock

92150

BOLT,SOCKET,6X30

92150-1433

1
Out of stock

92150A

BOLT,6X12

92150-1868

1
Out of stock
