2009 Kawasaki Vulcan® 900 Custom Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

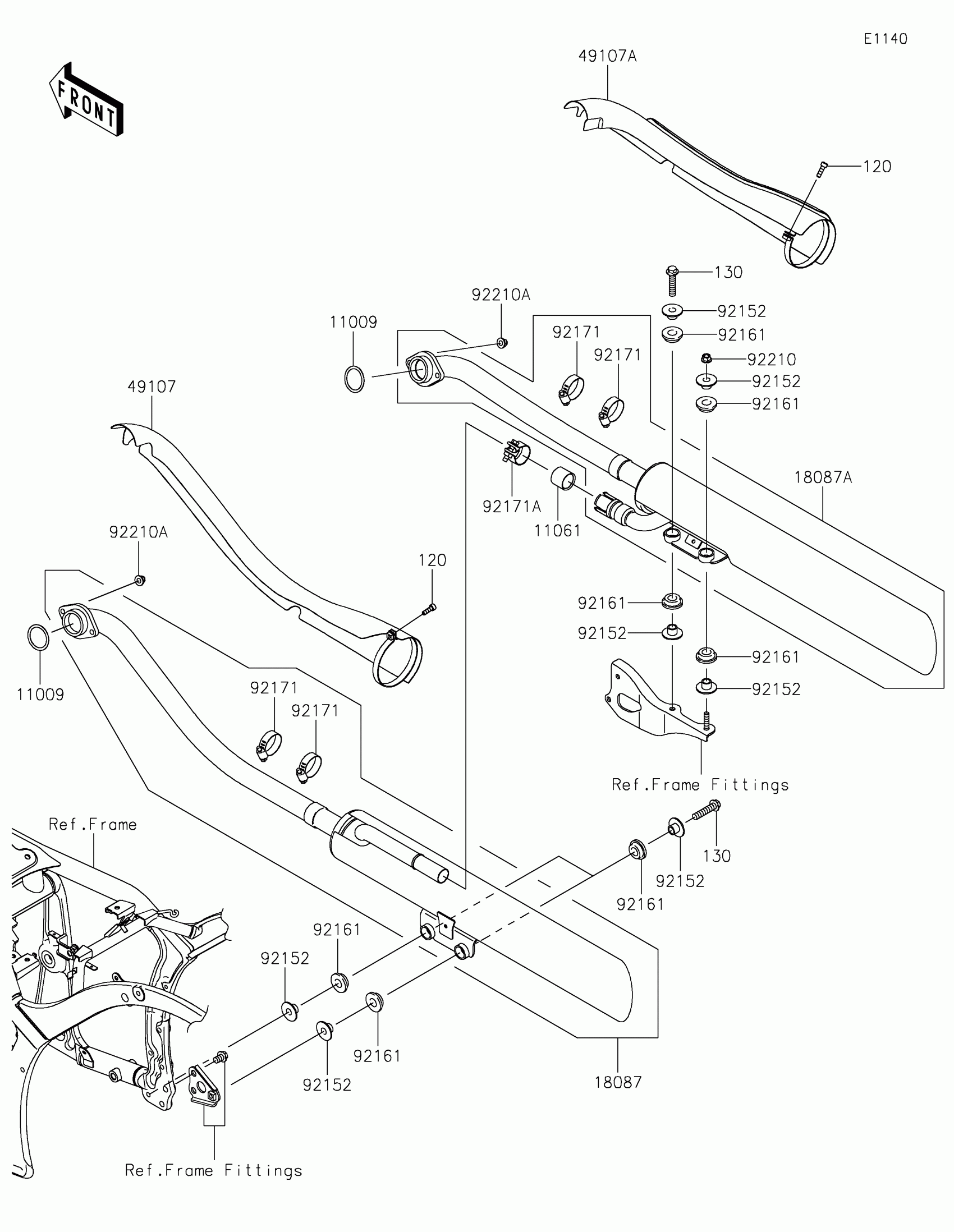

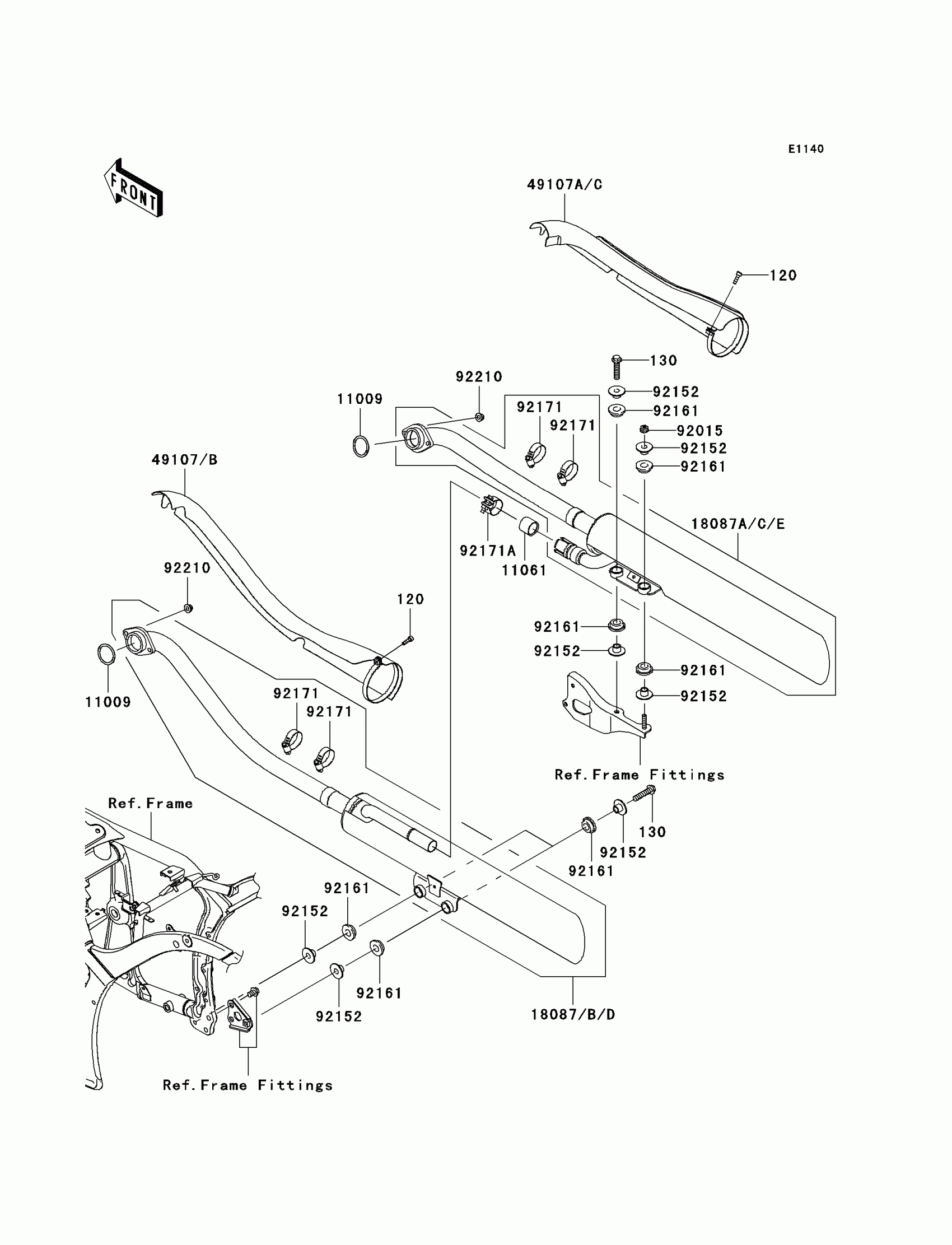

2009 Kawasaki Vulcan® 900 Custom Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120CC0620

1

$1.53

In stock

130

BOLT-FLANGED,8X35

130BB0835

1

$3.53

In stock

11009

1

$4.48

In stock

11061

1

$24.45

In stock

18087B

MUFFLER

18087-0143

1

$1,029.56

In stock

18087C

MUFFLER

18087-0144

1

$1,029.56

In stock

49107

1

$328.54

In stock

49107A

1

$328.54

In stock

92015

NUT,8MM

92015-1357

1
Out of stock

92152

COLLAR,8.8X12X10.6

92152-0082

1

$9.18

In stock

92161

DAMPER

92161-0135

1

$2.76

In stock

92171

CLAMP

92171-0059

1

$6.34

In stock

92171A

CLAMP

92171-0593

1

$15.93

In stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock
