2010 Kawasaki Vulcan® 900 Classic LT Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

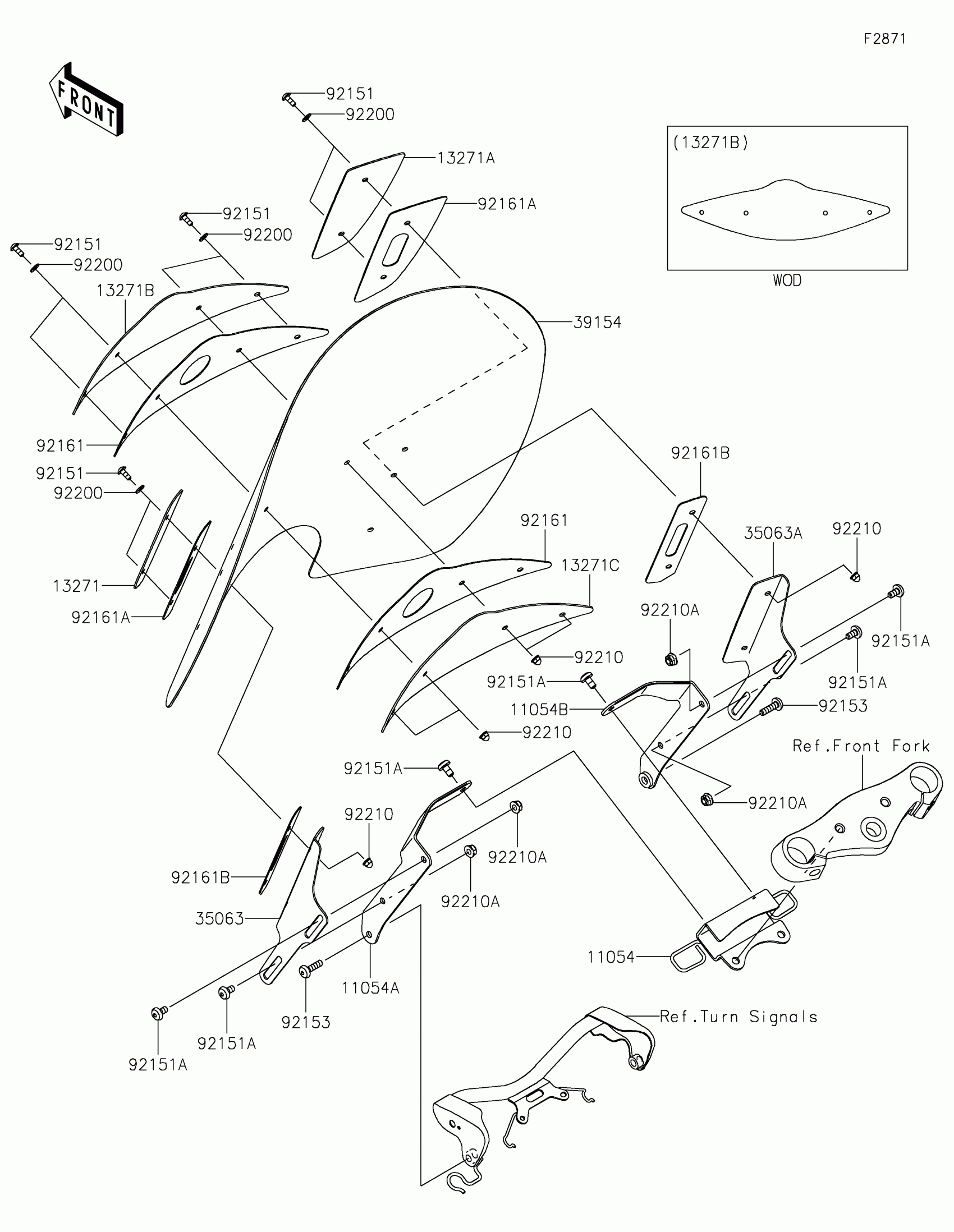

2010 Kawasaki Vulcan® 900 Classic LT Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,CNT

11054-0787

1
Out of stock

11054A

BRACKET,LH

11054-0789

1
Out of stock

11054B

BRACKET,RH

11054-0791

1
Out of stock

13271

PLATE,WINDSHIELD,LH,OUTER

13271-0704

1
Out of stock

13271A

PLATE,WINDSHIELD,RH,OUTER

13271-0705

1
Out of stock

13271B

PLATE,WINDSHIELD,CNT,OUTER

13271-0706

1
Out of stock

13271C

PLATE,WINDSHIELD,CNT,INNER

13271-0707

1
Out of stock

35063

STAY,WINDSHIELD,LH

35063-0267

1
Out of stock

35063A

STAY,WINDSHIELD,RH

35063-0268

1
Out of stock

39154

WINDSHIELD

39154-0018

1
Out of stock

92151

BOLT,SOCKET,6X16

92151-1751

1
Out of stock

92151A

BOLT,SOCKET,8X16

92151-1752

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-1467

1
Out of stock

92161

DAMPER,WINDSHIELD,CNT

92161-0330

1
Out of stock

92161A

DAMPER,WINDSHIELD,LH&RH,OUTER

92161-0332

1
Out of stock

92161B

DAMPER,WINDSHIELD,LH&RH,INNER

92161-0382

1
Out of stock

92200

WASHER,6.5X14.5X1.5

92200-3775

1
Out of stock

92210

NUT,LOCK,FLANGED,8MM

92210-0330

1
Out of stock

92210A

NUT,CAP,6MM

92210-1252

1
Out of stock
