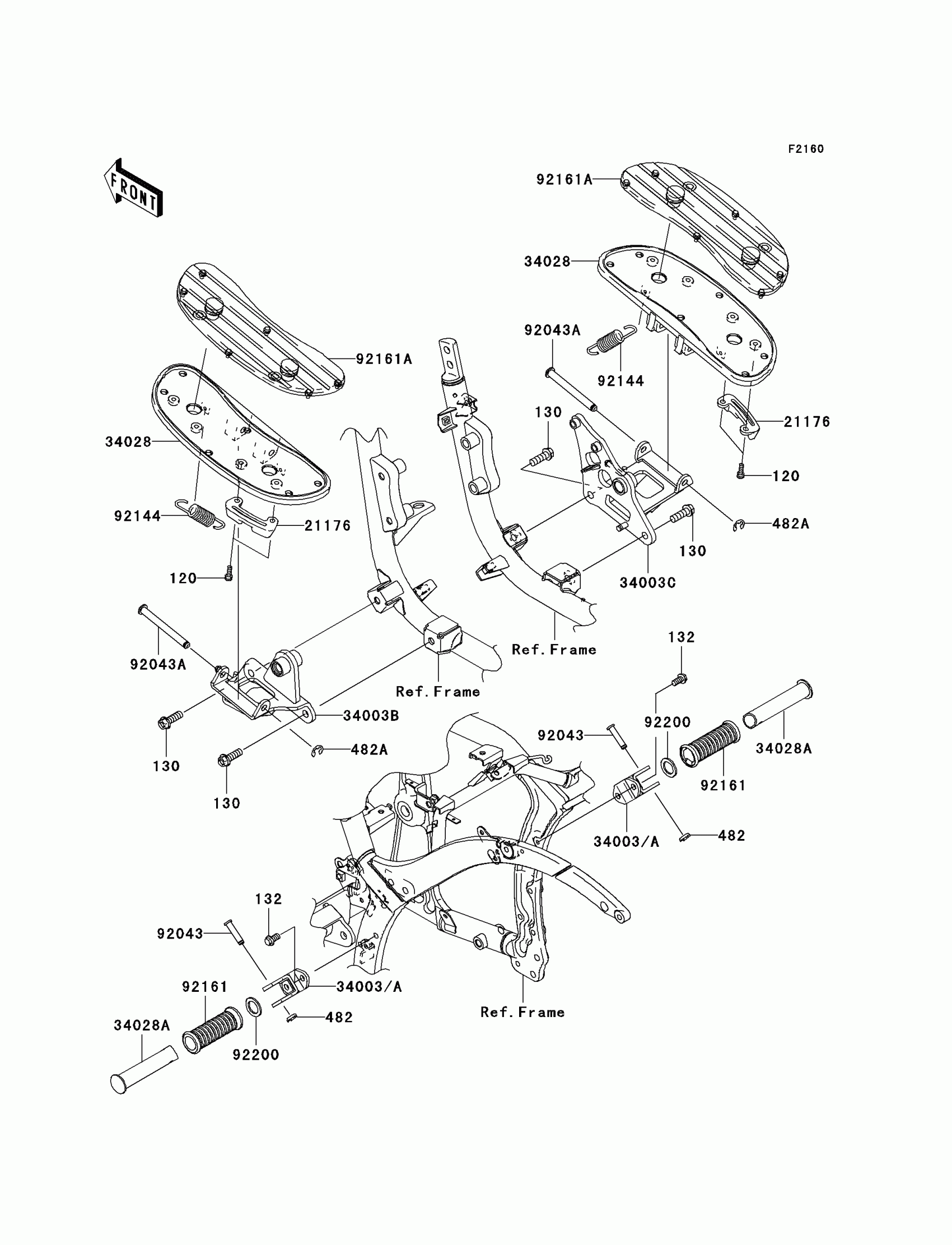

2010 Kawasaki Vulcan® 900 Classic LT Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic LT Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120CB0616

1
Out of stock

130

BOLT-FLANGED,10X30

130BB1030

1
Out of stock

132

BOLT-FLANGED-SMALL,8X16

132BB0816

1
Out of stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

482A

CIRCLIP-TYPE-E,8MM

482EA8000

1
Out of stock

21176

SENSOR,BANK

21176-0021

1
Out of stock

34003A

HOLDER-STEP,RR,F.S.BLACK

34003-0030-18R

1
Out of stock

34003B

HOLDER-STEP,FR,LH

34003-0039

1
Out of stock

34003C

HOLDER-STEP,FR,RH

34003-0050

1
Out of stock

34028

STEP,FR

34028-0011

1
Out of stock

34028A

STEP,RR

34028-0017

1
Out of stock

92043

PIN,8X36.5

92043-1339

1
Out of stock

92043A

PIN,10X98.5

92043-1707

1
Out of stock

92144

SPRING

92144-1266

1
Out of stock

92161

DAMPER,STEP

92161-0232

1
Out of stock

92161A

DAMPER,FRONT STEP

92161-1325

1
Out of stock

92200

WASHER,22.5X33X2.3

92200-1482

1
Out of stock
