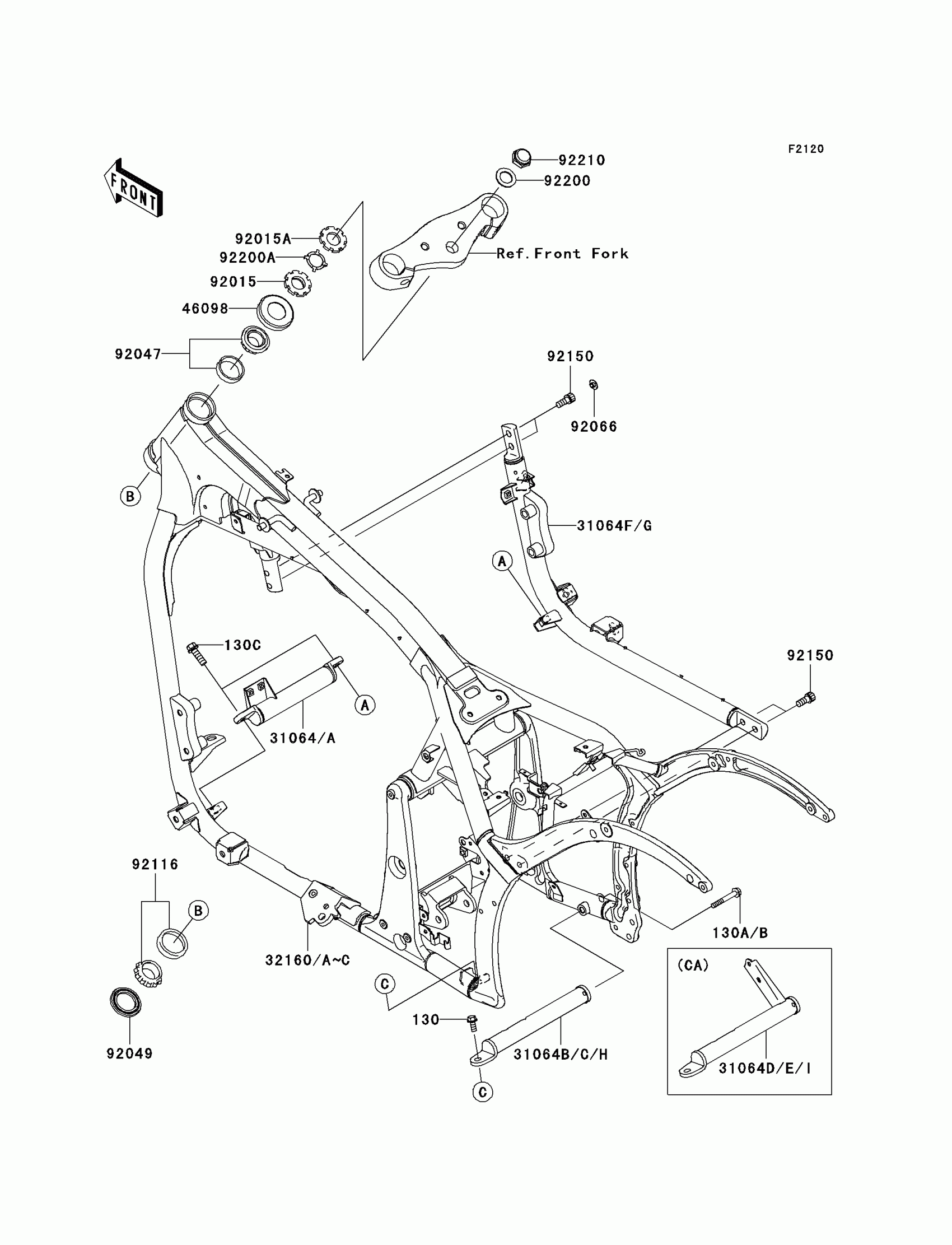

Kawasaki Vulcan® 900 Classic LT Frame Diagram

Description

Price

31064A

PIPE-COMP,FRONT CROSS,F.S.BLK

31064-0047-18R

$107.62

31064G

PIPE-COMP,DOWNTUBE,RH,F.S.BLK

31064-0097-18R

$328.54

32160C

FRAME-COMP,F.S.BLACK

32160-0446-18R

Unavailable

46098

CAP,STEERING STEM

46098-017

$5.37

92015

NUT,25MM,T=10

92015-1377

$25.61

92015A

NUT,25MM,T=6

92015-1378

$16.96

92047

RACE,ROLLER,32005JR RS

92047-017

$38.84

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.08

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

92150

BOLT,SOCKET,10X23

92150-1942

$5.61

92200

WASHER,22.5X36X2.3

92200-0270

$3.51

130

BOLT-FLANGED,8X18

130BB0818

$1.27

130C

BOLT-FLANGED,10X25

130BB1025

$4.63

92200A

WASHER,CLAW,25.5X34X0.6

92200-0353

$3.51

92210

NUT,CAP,22MM

92210-0263

$20.63

31064H

PIPE-COMP,REAR CROSS,F.S.BLK

31064-0183-18R

$76.10

31064I

PIPE-COMP,REAR CROSS,F.S.BLACK

31064-0184-18R

$76.10

130B

BOLT-FLANGED,8X65

130BB0865

$4.53

130B

BOLT-FLANGED,8X65

130BB0865

$4.53
