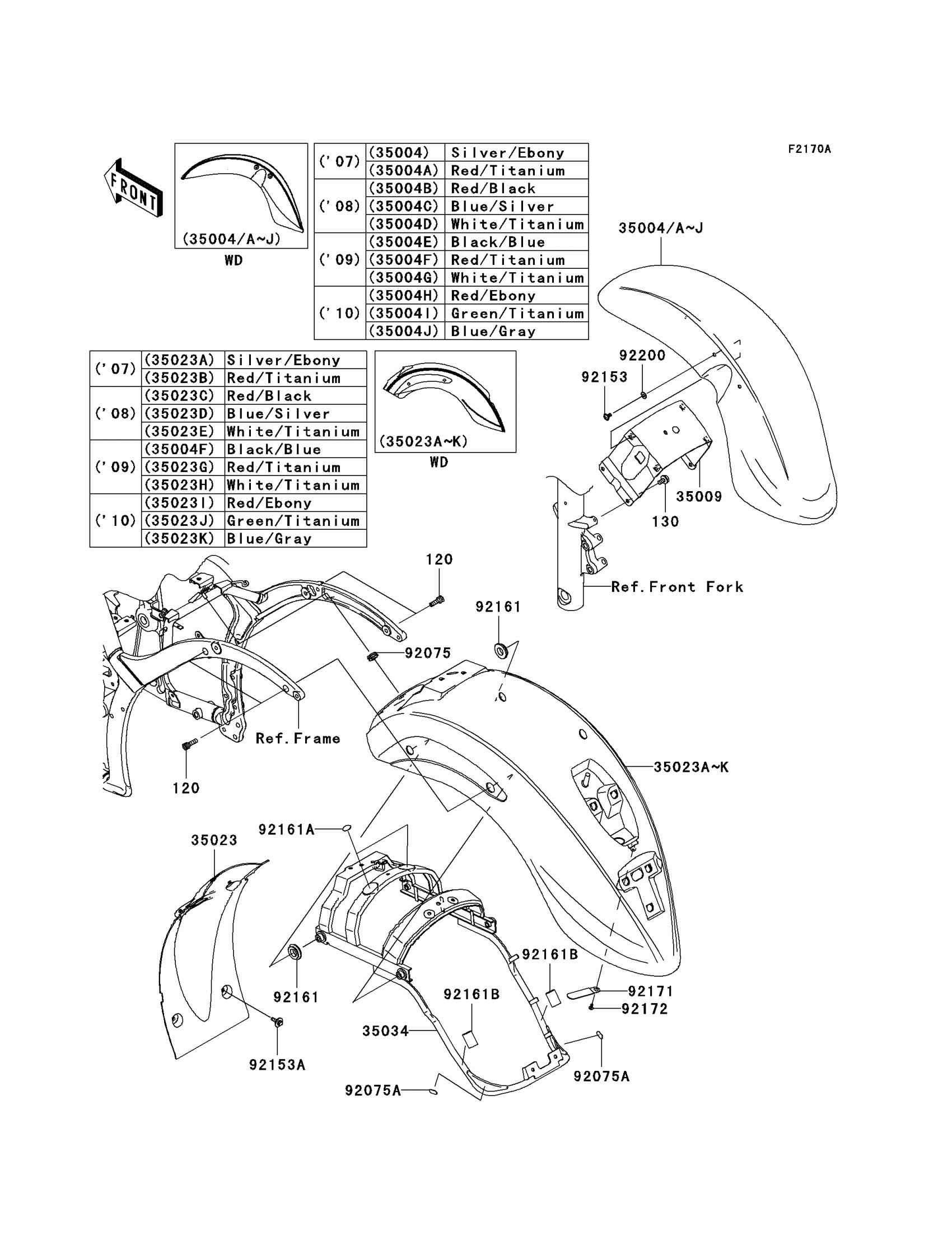

Kawasaki Vulcan® 900 Classic LT Fenders(JKAVN2D1 7A011497-) Diagram

Description

Price

35004H

FENDER-FRONT,RED/EBONY

35004-5331-28C

$415.52

35004I

FENDER-FRONT,GREEN/TITANIUM

35004-5332-25A

$415.52

35004J

FENDER-FRONT,BLUE/GRAY

35004-5333-28E

$415.52

35009

BRACE,FRONT FENDER

35009-0014

$47.69

35023

FENDER-REAR,INNER

35023-0073

$49.01

35023I

FENDER-REAR,RED/EBONY

35023-5163-28C

$587.05

35023J

FENDER-REAR,GREEN/TITANIUM

35023-5164-25A

$560.29

35023K

FENDER-REAR,BLUE/GRAY

35023-5165-28E

$587.05

35034

REINFORCE,REAR FENDER

35034-0090

$215.56

92075

DAMPER

92075-1067

$3.72

120

BOLT-SOCKET,8X25

120CA0825

$1.55

130

BOLT-FLANGED,8X14

130BB0814

$3.69

92075A

DAMPER

92075-1841

$4.17

92153

BOLT,SOCKET,6X16

92153-0817

$1.81

92153A

BOLT,6X20

92153-1599

$1.53

92161

DAMPER

92161-0375

$3.11

92161A

DAMPER

92161-0406

$2.42

92161B

DAMPER

92161-0459

$5.31

92171

CLAMP

92171-0181

$7.80

92172

SCREW,TAPPING,4X10

92172-0172

$3.71

92200

WASHER,6.5X14X1

92200-1388

$2.03
