1999 Kawasaki Vulcan 800 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

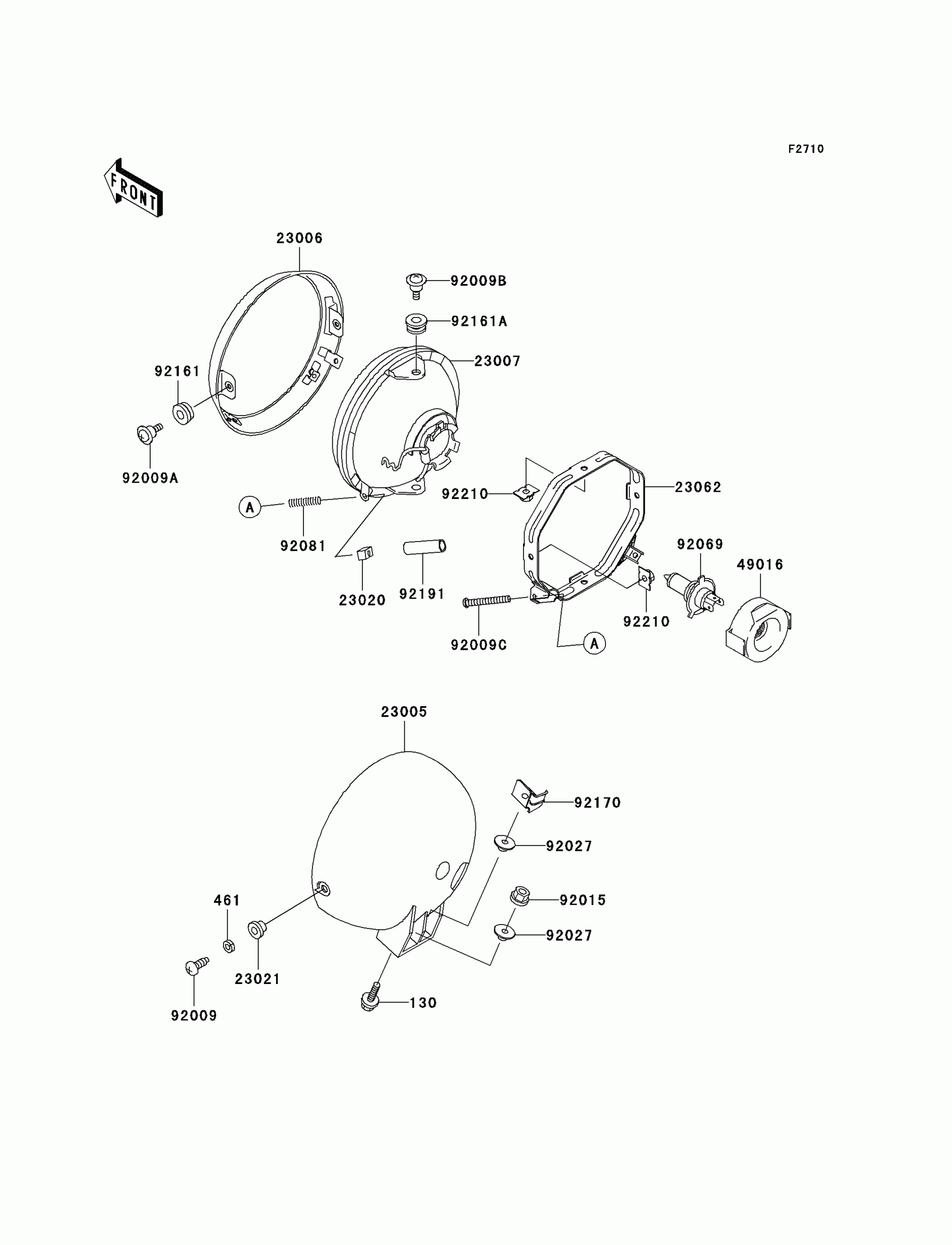

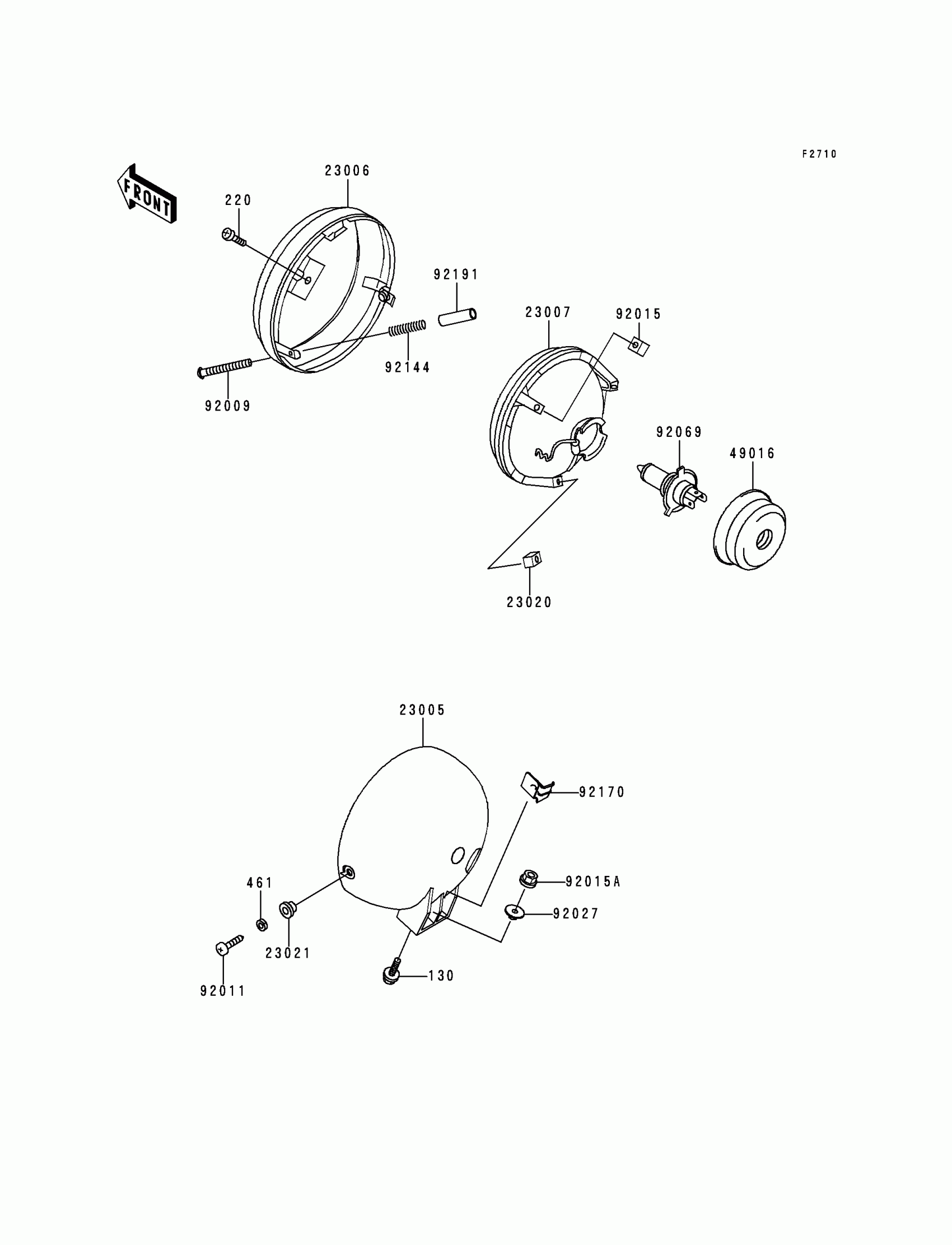

1999 Kawasaki Vulcan 800 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130V0620

1
Out of stock

220

1

$0.51

In stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

23005

BODY-COMP-HEAD LAMP

23005-1149

1

$146.96

In stock

23006

RIM-LAMP

23006-1070

1

$87.41

In stock

23007

LENS-COMP,HEAD LAMP

23007-1169

1

$156.62

In stock

23020

1

$3.69

In stock

23021

WASHER

23021-010

1

$3.43

In stock

49016

1

$9.69

In stock

92009

SCREW,FOCUS ADJUST,4X65

92009-1472

1
Out of stock

92011

SCREW,5MM

92011-024

1
Out of stock

92015

NUT,5MM

92015-1157

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92027

COLLAR,L=6.5

92027-252

1

$4.61

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92144

SPRING,FOCUS ADJUST

92144-1149

1

$7.98

In stock

92170

CLAMP,HARNESS

92170-1624

1

$5.07

In stock

92191

TUBE,3.5X5.5X19

92191-1217

1

$2.02

In stock
