2000 Kawasaki Vulcan 800 Classic Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

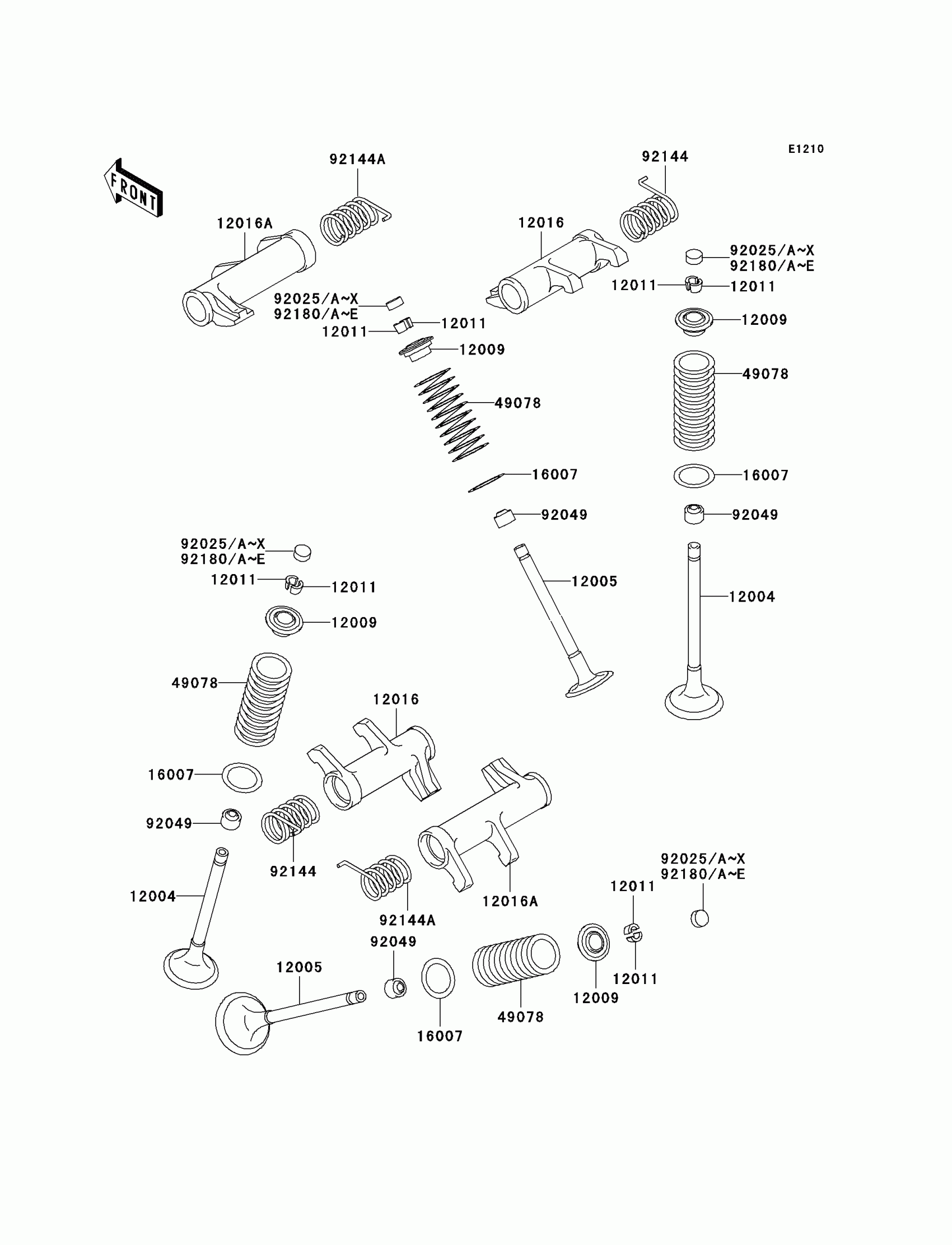

2000 Kawasaki Vulcan 800 Classic Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1139

1

$44.89

In stock

12005

VALVE-EXHAUST

12005-1225

1

$65.32

In stock

12009

1

$12.19

In stock

12011

COLLET

12011-1051

1

$1.64

In stock

12016

ARM-ROCKER,INTAKE

12016-1093

1

$152.65

In stock

12016A

ARM-ROCKER,EXHAUST

12016-1094

1

$152.65

In stock

16007

1

$4.88

In stock

49078

1

$11.67

In stock

92025

SHIM,T=2.00

92025-1870

—
Out of stock

92025A

SHIM,T=2.05

92025-1871

—
Out of stock

92025B

SHIM,T=2.10

92025-1872

—
Out of stock

92025C

SHIM,T=2.15

92025-1873

—
Out of stock

92025D

SHIM,T=2.20

92025-1874

—
Out of stock

92025E

SHIM,T=2.25

92025-1875

—
Out of stock

92025F

SHIM,T=2.30

92025-1876

—
Out of stock

92025G

SHIM,T=2.35

92025-1877

—
Out of stock

92025H

SHIM,T=2.40

92025-1878

1
Out of stock

92025I

SHIM,T=2.45

92025-1879

—
Out of stock

92025J

SHIM,T=2.50

92025-1880

—
Out of stock

92025K

SHIM,T=2.55

92025-1881

—
Out of stock

92025L

SHIM,T=2.60

92025-1882

—
Out of stock

92025M

SHIM,T=2.65

92025-1883

—
Out of stock

92025N

SHIM,T=2.70

92025-1884

—
Out of stock

92025O

SHIM,T=2.75

92025-1885

—
Out of stock

92025P

SHIM,T=2.80

92025-1886

—
Out of stock

92025Q

SHIM,T=2.85

92025-1887

—
Out of stock

92025R

SHIM,T=2.90

92025-1888

—
Out of stock

92025S

SHIM,T=2.95

92025-1889

—
Out of stock

92025T

SHIM,T=3.00

92025-1890

—
Out of stock

92025U

SHIM,T=2.425

92025-1982

—
Out of stock

92025V

SHIM,T=2.475

92025-1983

—
Out of stock

92025W

SHIM,T=2.525

92025-1984

—
Out of stock

92025X

SHIM,T=2.575

92025-1985

—
Out of stock

92049

SEAL-OIL,VSB58.558

92049-1218

1
Out of stock

92144

1

$2.25

In stock

92144A

1

$2.25

In stock

92180

SHIM,T=1.95

92180-1208

—

$15.29

In stock

92180A

SHIM,T=1.90

92180-1209

—

$15.29

In stock

92180B

SHIM,T=1.85

92180-1210

—

$15.29

In stock

92180C

SHIM,T=1.80

92180-1211

—

$15.29

In stock

92180D

SHIM,T=1.75

92180-1212

—

$15.29

In stock

92180E

SHIM,T=1.70

92180-1213

—

$15.29

In stock
