2000 Kawasaki Vulcan 800 Classic Cylinder Head Diagram

← All diagrams

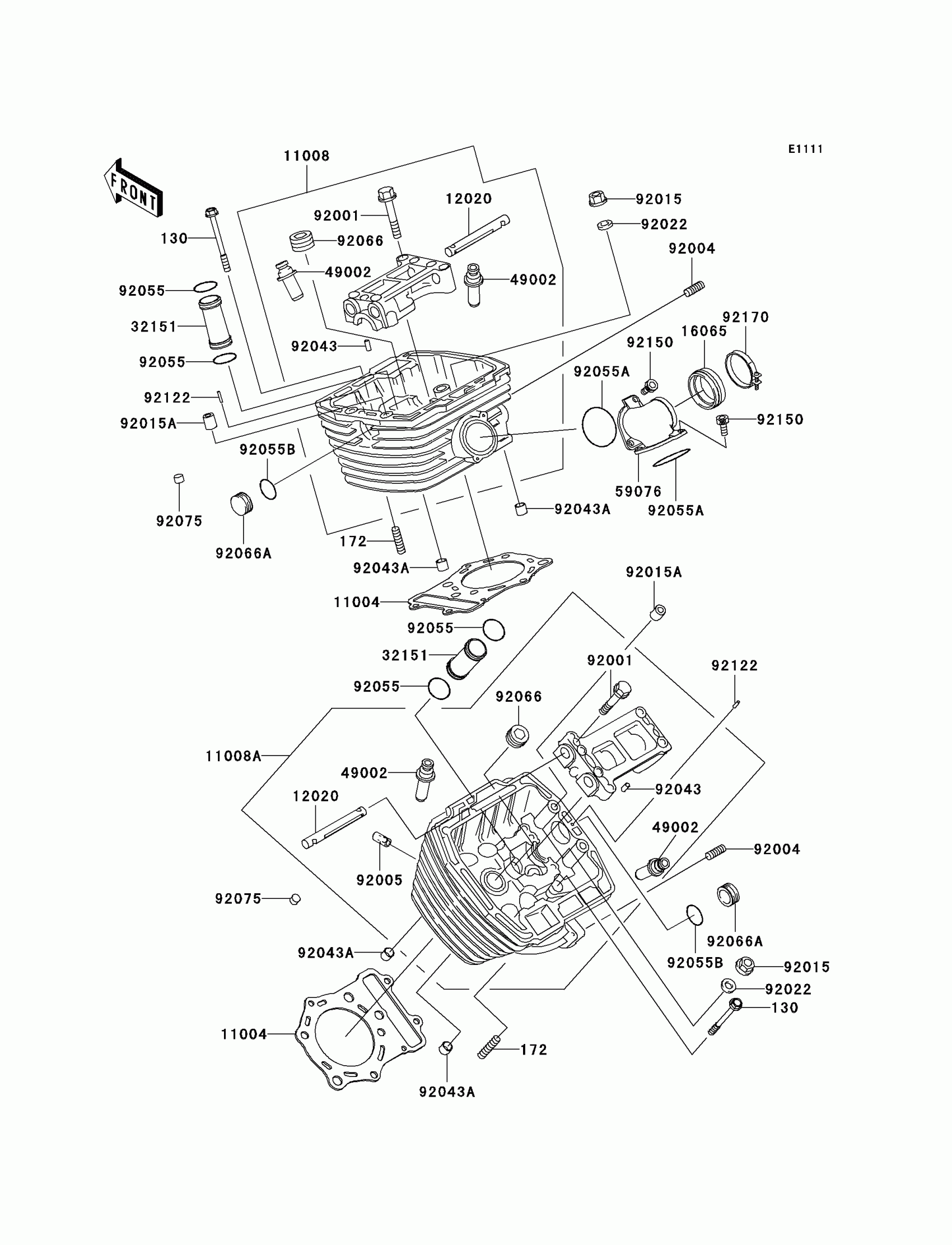

Find the part on the Cylinder Head diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 800 Classic Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X65

130S0665

1
Out of stock

172

BOLT-STUD,8X25

172G0825

1
Out of stock

11004

GASKET-HEAD

11004-1310

1
Out of stock

11008

HEAD-COMP-CYLINDER,FR

11008-1301

1
Out of stock

11008A

HEAD-COMP-CYLINDER,RR

11008-1302

1
Out of stock

12020

SHAFT-ROCKER

12020-1070

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1308

1
Out of stock

32151

PIPE,PLUG

32151-1893

1
Out of stock

49002

GUIDE-VALVE

49002-1097

—
Out of stock

59076

MANIFOLD-INTAKE

59076-1102

1
Out of stock

92001

BOLT,FLANGED,8X58

92001-1005

1
Out of stock

92004

STUD,8X22

92004-1217

1
Out of stock

92005

FITTING,BREATHER PIPE

92005-1061

1
Out of stock

92015

NUT,FLANGED,10MM

92015-077

1
Out of stock

92015A

NUT

92015-1923

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN,11X14X12.3

92043-1266

1
Out of stock

92055

RING-O,27.7X1.9

92055-1272

1
Out of stock

92055A

RING-O,44.7X2.4

92055-1279

1
Out of stock

92055B

RING-O,ID=24.5

92055-1459

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-1253

1
Out of stock

92066A

PLUG,CAM HOLE

92066-1462

1
Out of stock

92075

DAMPER

92075-182

1
Out of stock

92122

ROLLER,3X15.8

92122-1126

1
Out of stock

92150

BOLT,SOCKET,6X20

92150-1880

1
Out of stock

92170

CLAMP

92170-1632

1
Out of stock
