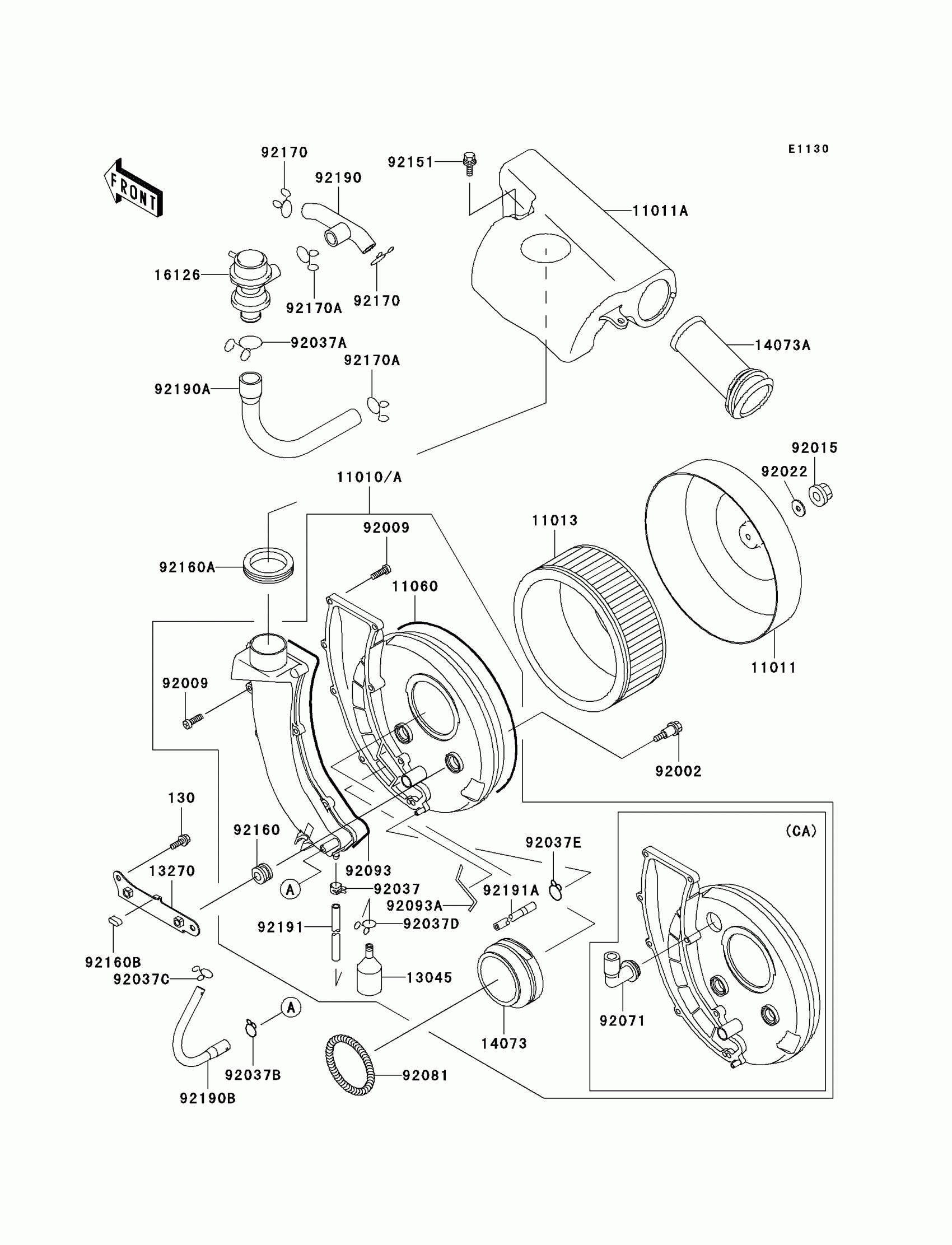

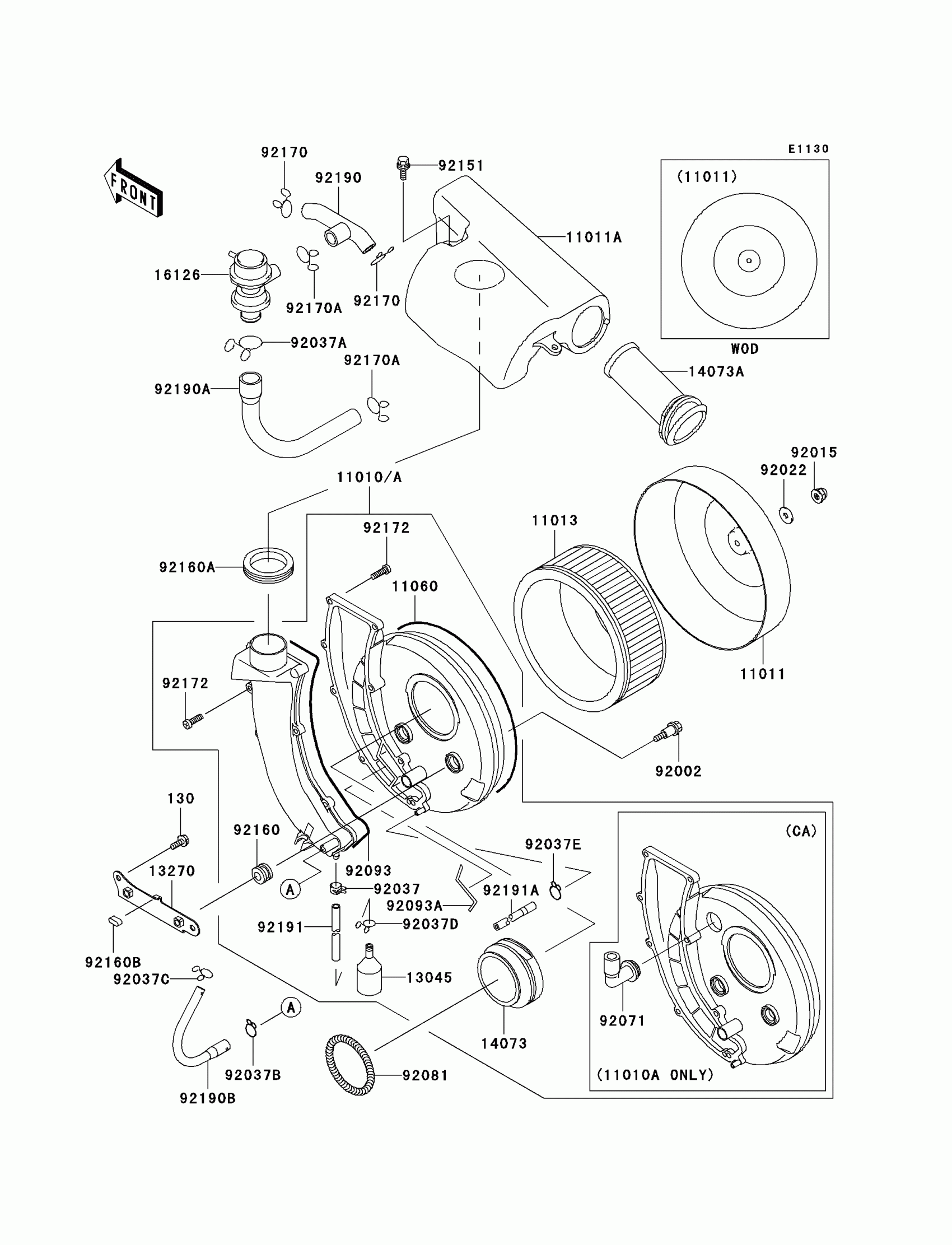

Kawasaki Vulcan 800 Classic Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,COVER

11011-1453

Unavailable

11011A

CASE-AIR FILTER,CHAMBER

11011-1454

Unavailable

11013

ELEMENT-AIR FILTER

11013-1243

$42.39

11060

GASKET,AIR FILTER

11060-1721

$7.24

13045

RECEIVER-OIL

13045-1057

$7.48

13270

PLATE,AIR FILTER CASE

13270-1388

$12.06

14073

DUCT,AIR FILTER

14073-1622

$18.53

14073A

DUCT,AIR FILTER CHAMBER

14073-1623

Unavailable

16126

VALVE,AIR SWITCH

16126-1289

$204.57

92002

BOLT,FLANGED,6X14X13.5

92002-1595

$9.94

92009

SCREW,TAPPING,5X20

92009-1399

$1.98

92015

NUT,CAP,6MM

92015-1385

$3.29

92022

WASHER,6.5X20X1.6,WHITE

92022-193

$4.21

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,TUBE

92037-1076

$7.14

92037B

CLAMP,12.5MM

92037-1271

$1.73

92037C

CLAMP,TUBE

92037-147

$5.61

92037D

CLAMP

92037-1712

$3.81

92037E

CLAMP,TUBE

92037-3025

$4.71

92081

SPRING,DUCT

92081-1638

$9.47

92093

SEAL,AIR FILTER

92093-1501

$5.47

92093A

SEAL,AIR FILTER

92093-1502

Unavailable

92151

BOLT

92151-1579

$2.05

92160

DAMPER

92160-1594

$3.57

92160A

DAMPER

92160-1600

$7.49

92160B

DAMPER,PLATE

92160-1605

$2.84

92170

CLAMP

92170-1017

$3.57

92170A

CLAMP,TUBE

92170-1445

$4.34

92190

TUBE,AIR SWITCH-HEAD

92190-1600

Unavailable

92190A

TUBE,AIR SWITCH-FILTER CASE

92190-1601

Unavailable

92190B

TUBE,BREATHER

92190-1602

Unavailable

92191

TUBE,6X9X345

92191-1111

$7.44

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

92191A

TUBE

92191-1112

$10.36

11010

FILTER-ASSY-AIR

11010-1670

Unavailable

11010A

FILTER-ASSY-AIR

11010-1671

$191.98

92071

GROMMET,AIR FILTER

92071-1114

$23.73
