2000 Kawasaki Vulcan 800 Classic Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

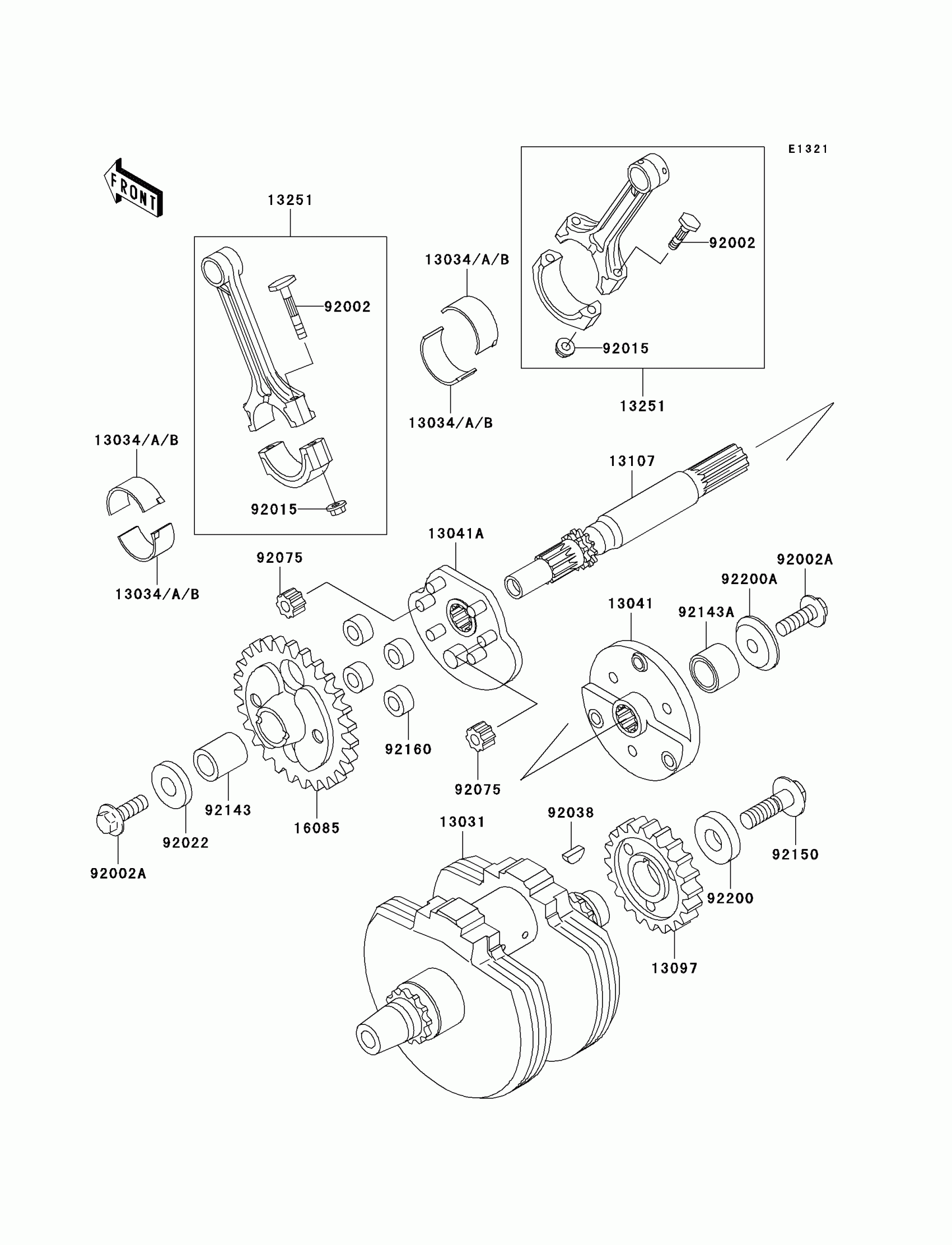

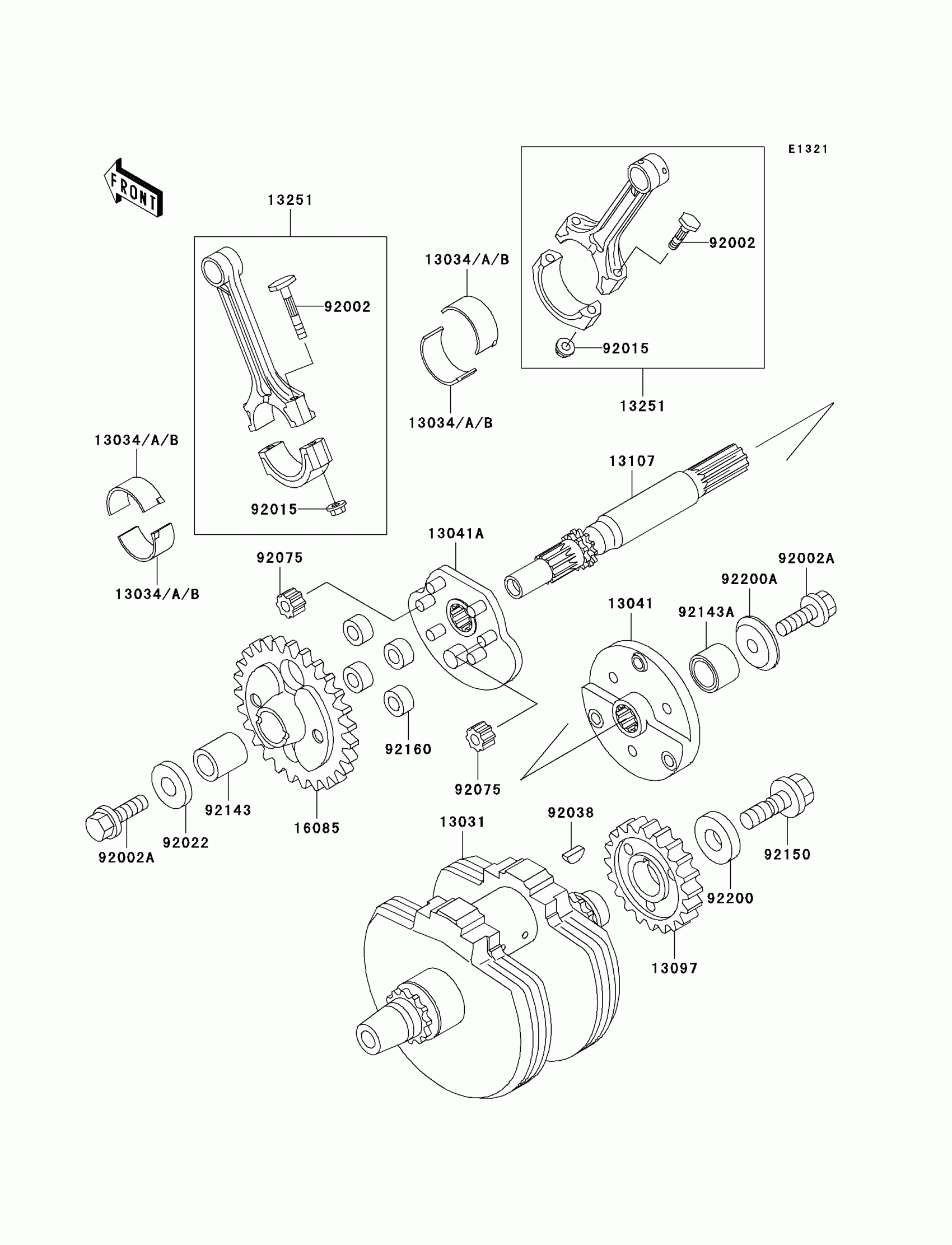

2000 Kawasaki Vulcan 800 Classic Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1398

1
Out of stock

13034

METAL,CONNECTING ROD,BLUE

13034-1057

—
Out of stock

13034A

METAL,CONNECTING ROD,BLACK

13034-1058

—
Out of stock

13034B

METAL,CONNECTING ROD,BROWN

13034-1059

—
Out of stock

13041

BALANCER,RH

13041-1112

1
Out of stock

13041A

BALANCER,LH

13041-1113

1
Out of stock

13097

GEAR-PRIMARY SPUR,38T

13097-1335

1
Out of stock

13107

SHAFT,BALANCER

13107-1336

1
Out of stock

13251

ROD-ASSY-CONNECTING,G

13251-1055-GG

1
Out of stock

16085

GEAR

16085-1279

1
Out of stock

92002

BOLT,CONNECTING ROD

92002-1405

1
Out of stock

92002A

BOLT,10X30

92002-1697

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1481

1
Out of stock

92022

WASHER,10X33X6

92022-1906

1
Out of stock

92038

KEY

92038-1059

1
Out of stock

92075

DAMPER

92075-1748

1
Out of stock

92143

COLLAR

92143-1736

1
Out of stock

92143A

COLLAR

92143-1743

1
Out of stock

92150

BOLT,12X40

92150-1717

1
Out of stock

92160

DAMPER

92160-1582

1
Out of stock

92200

WASHER,12X36X8

92200-1249

1
Out of stock

92200A

WASHER

92200-1250

1
Out of stock
