2000 Kawasaki Vulcan 800 Classic Right Engine Cover Diagram

← All diagrams

Find the part on the Right Engine Cover diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

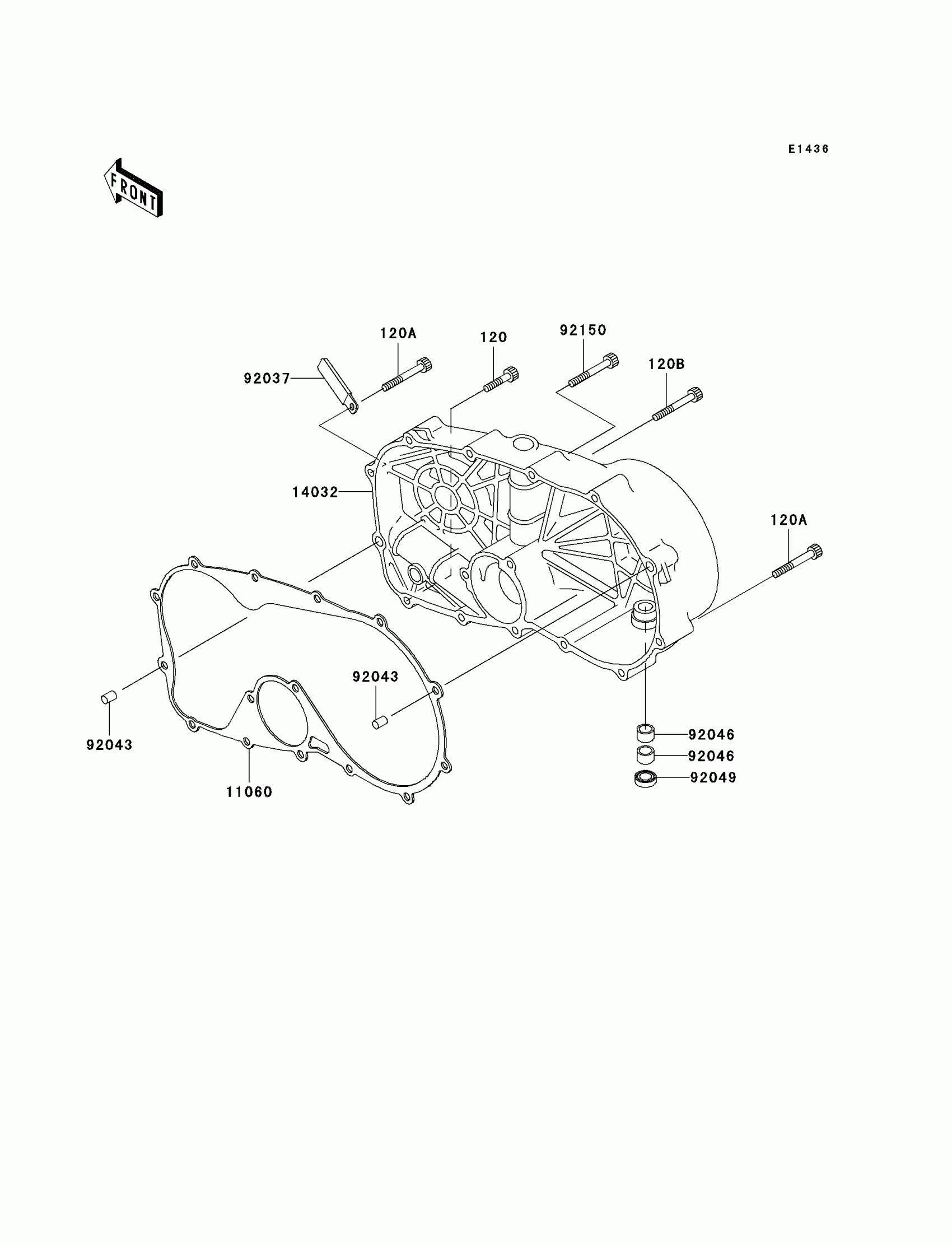

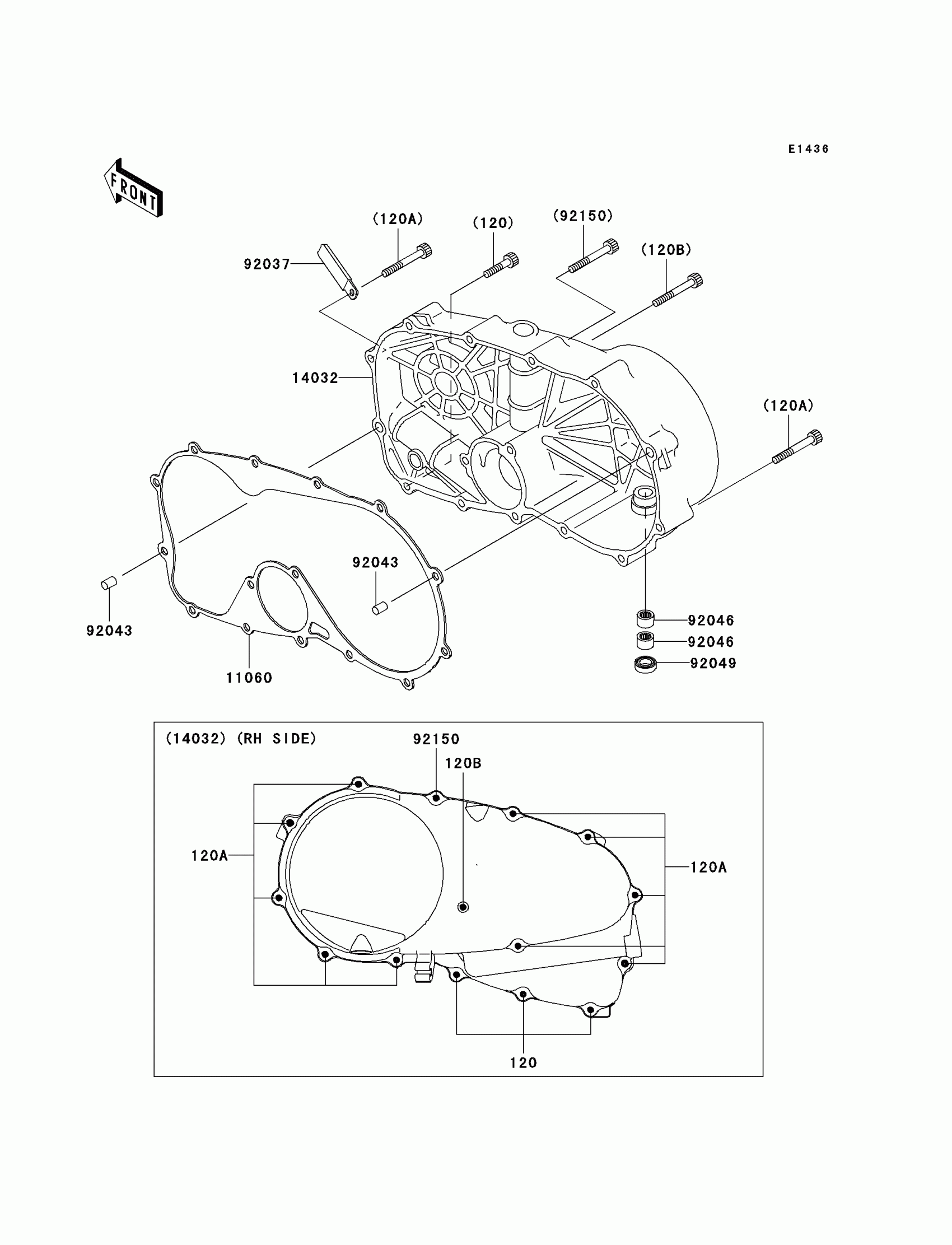

2000 Kawasaki Vulcan 800 Classic Right Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X30

120R0630

1
Out of stock

120A

BOLT-SOCKET,6X50

120R0650

1
Out of stock

120B

BOLT-SOCKET,6X65

120R0665

1
Out of stock

11060

GASKET,CLUTCH COVER

11060-1926

1
Out of stock

14032

COVER-CLUTCH

14032-1403

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92150

BOLT,SOCKET,6X50

92150-1436

1
Out of stock
