2000 Kawasaki Vulcan 800 Classic Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

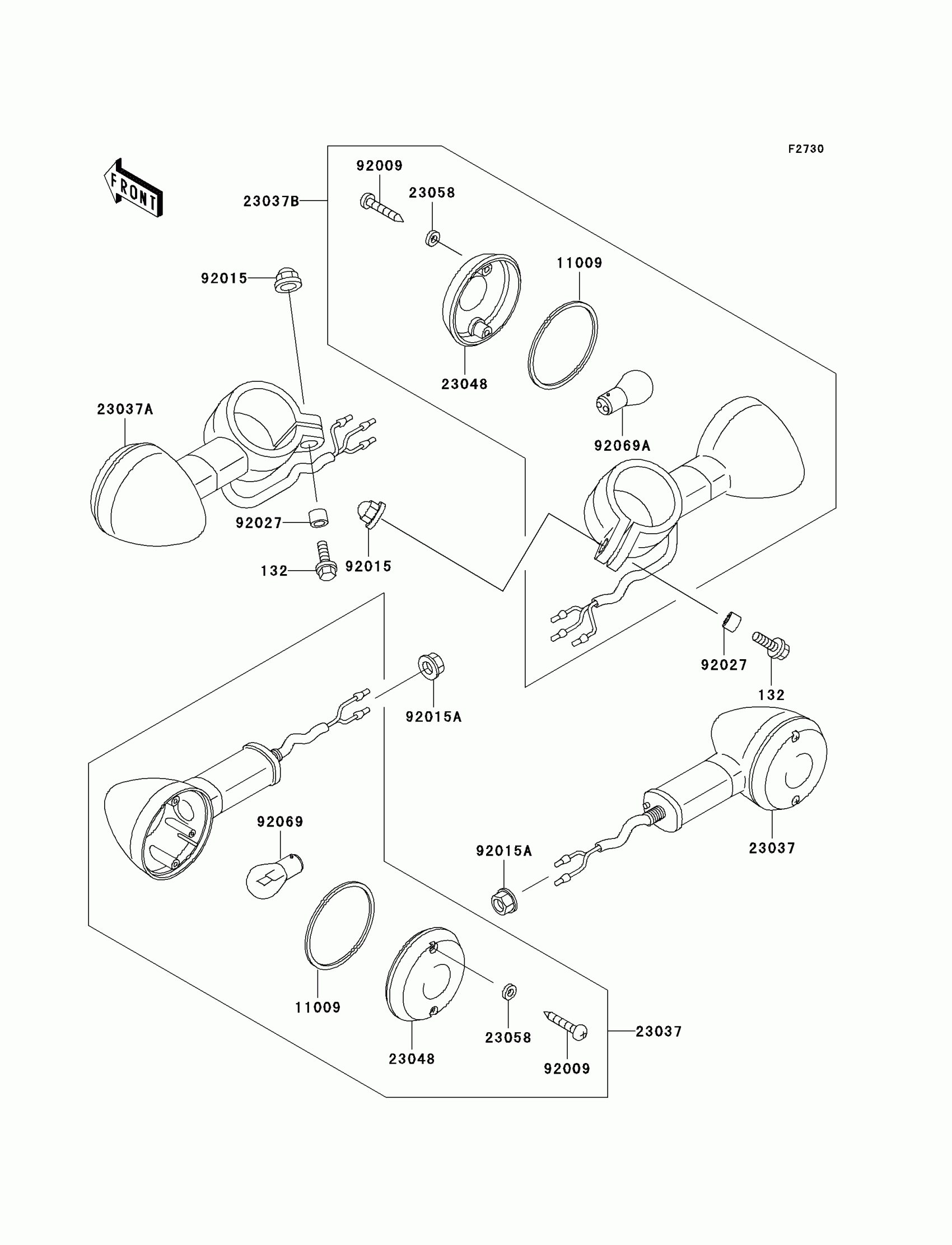

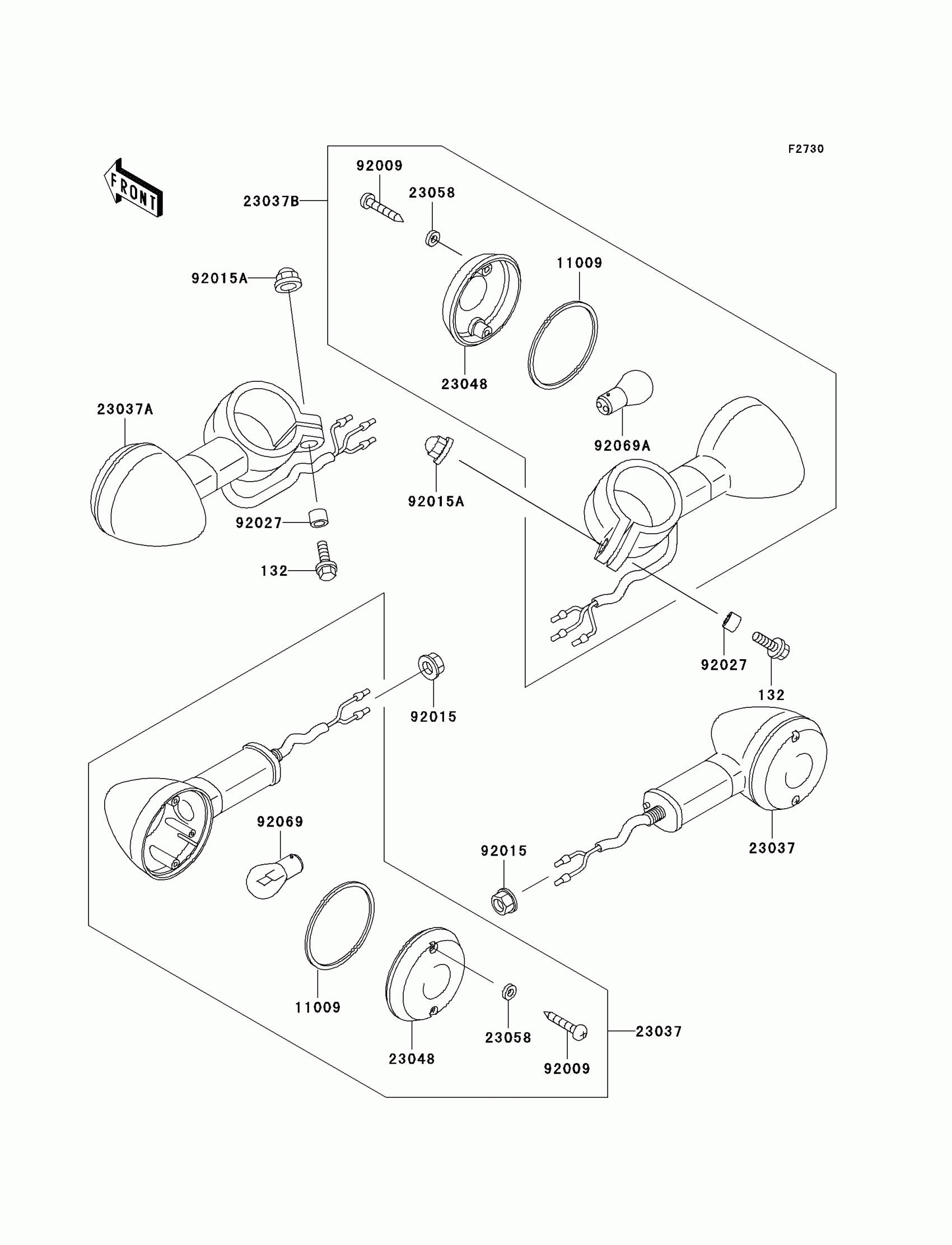

2000 Kawasaki Vulcan 800 Classic Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

11009

GASKET,SIGNAL LAMP

11009-1413

1

$3.94

In stock

23037

LAMP-ASSY-SIGNAL,RR

23037-1315

1

$73.09

In stock

23037A

1

$84.70

In stock

23037B

1

$84.70

In stock

23048

LENS-SIGNAL LAMP,FR

23048-1066

1

$7.56

In stock

23058

WASHER,PLAIN,4MM

23058-002

1

$2.05

In stock

92009

SCREW,TAPPING,4X25

92009-1637

1
Out of stock

92015

NUT,CAP,6MM

92015-1385

1

$3.43

In stock

92015A

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

92069A

1

$7.70

In stock
