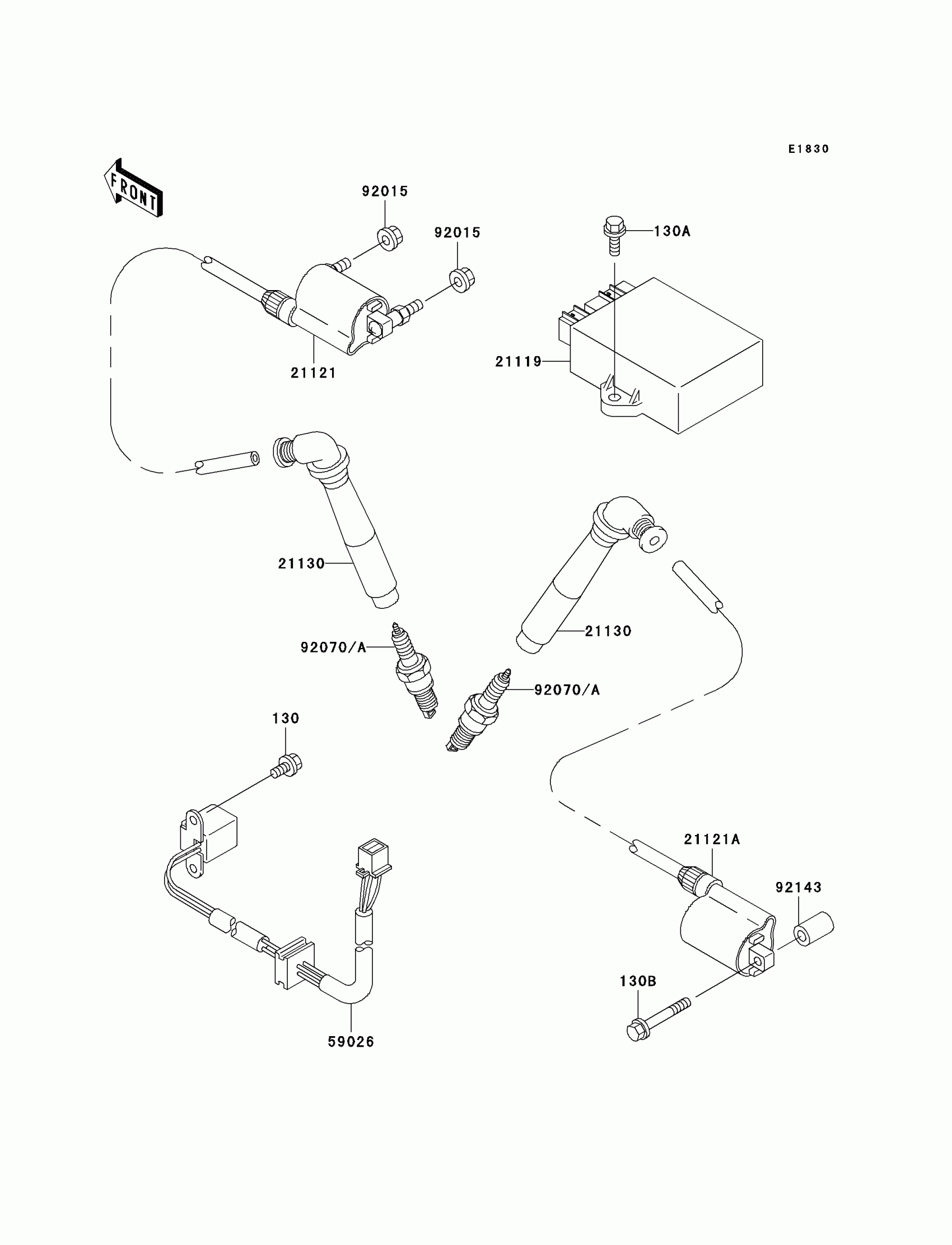

Kawasaki Vulcan 800 Classic Ignition System Diagram

Description

Price

130

BOLT-FLANGED,5X10

130G0510

Unavailable

130A

BOLT,FLANGED,6X14

130G0614

Unavailable

130B

BOLT-FLANGED,6X40

130V0640

Unavailable

21119

IGNITER

21119-1438

$590.34

21121

COIL-IGNITION,FR

21121-1245

$152.92

21121A

COIL-IGNITION,RR

21121-1246

$152.92

21130

CAP-SPARK PLUG

21130-1075

$49.63

59026

COIL-PULSING

59026-1130

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92070

PLUG-SPARK,CR8E(NGK)

92070-1169

Unavailable

92070A

PLUG-SPARK,CR7E(NGK)

92070-1209

$6.18

92143

COLLAR,6.8X13X20

92143-1773

$4.32
