2000 Kawasaki Vulcan 800 Classic Starter Motor Diagram

← All diagrams

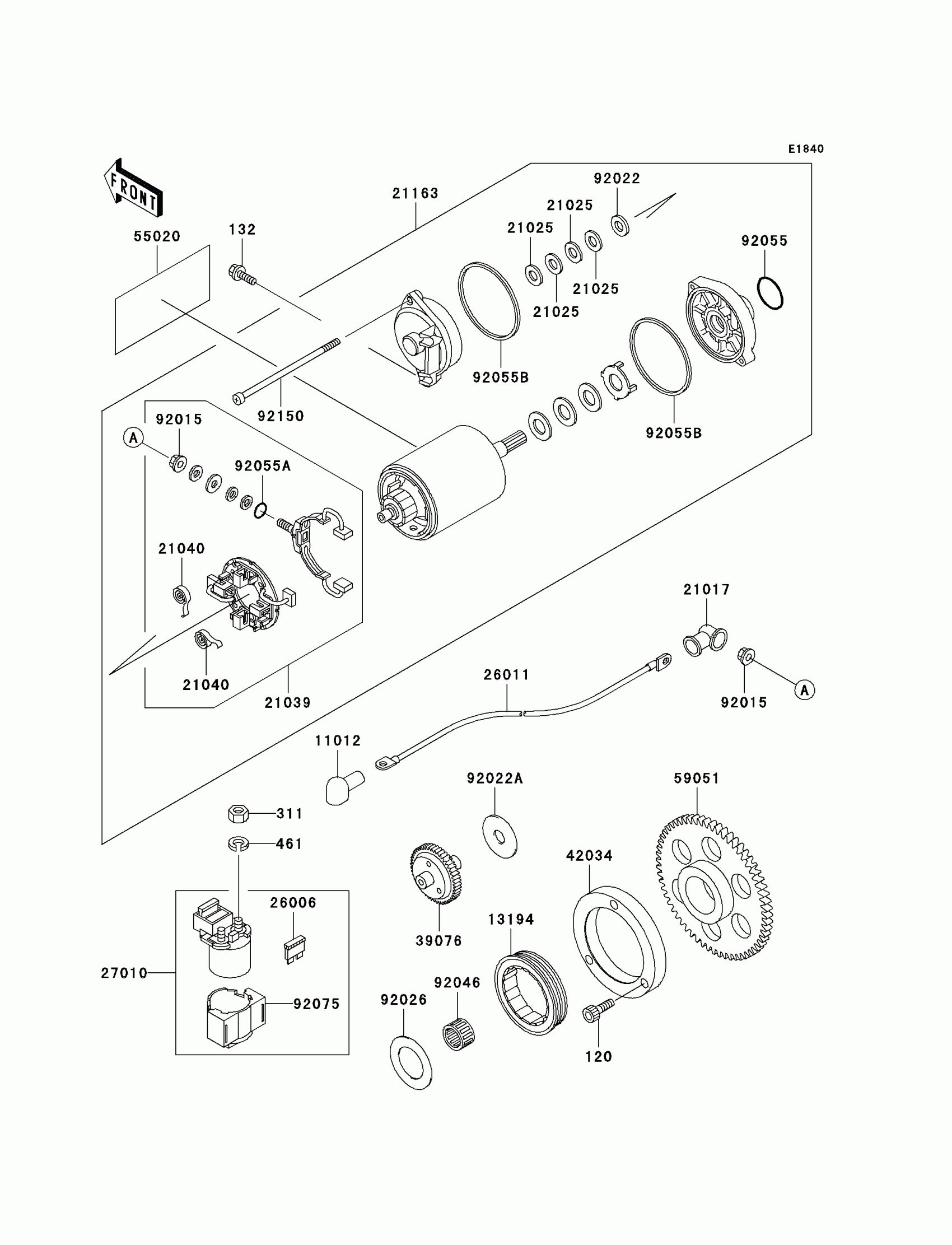

Find the part on the Starter Motor diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 800 Classic Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X20

120Q0820

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

11012

CAP,TERMINAL

11012-1354

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1085

1
Out of stock

21017

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

21025

WASHER,9.1X18X0.2

21025-011

—
Out of stock

21039

BRUSH,CARBON

21039-1060

1
Out of stock

21040

SPRING-BRUSH

21040-1055

1
Out of stock

21163

STARTER-ELECTRIC

21163-1263

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD

26011-1628

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1213

1
Out of stock

39076

LIMITER,STARTER IDLE GEAR

39076-1070

1
Out of stock

42034

COUPLING

42034-1143

1
Out of stock

55020

GUARD,STARTER MOTER

55020-1589

1
Out of stock

59051

GEAR-SPUR,STARTER,63T

59051-1130

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92022A

WASHER,12.3X38X2.0

92022-1664

1
Out of stock

92026

SPACER,29.1X47.5X1.2

92026-087

1
Out of stock

92046

BEARING-NEEDLE

92046-1137

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

92150

BOLT,STARTER MOTOR

92150-1913

1
Out of stock
