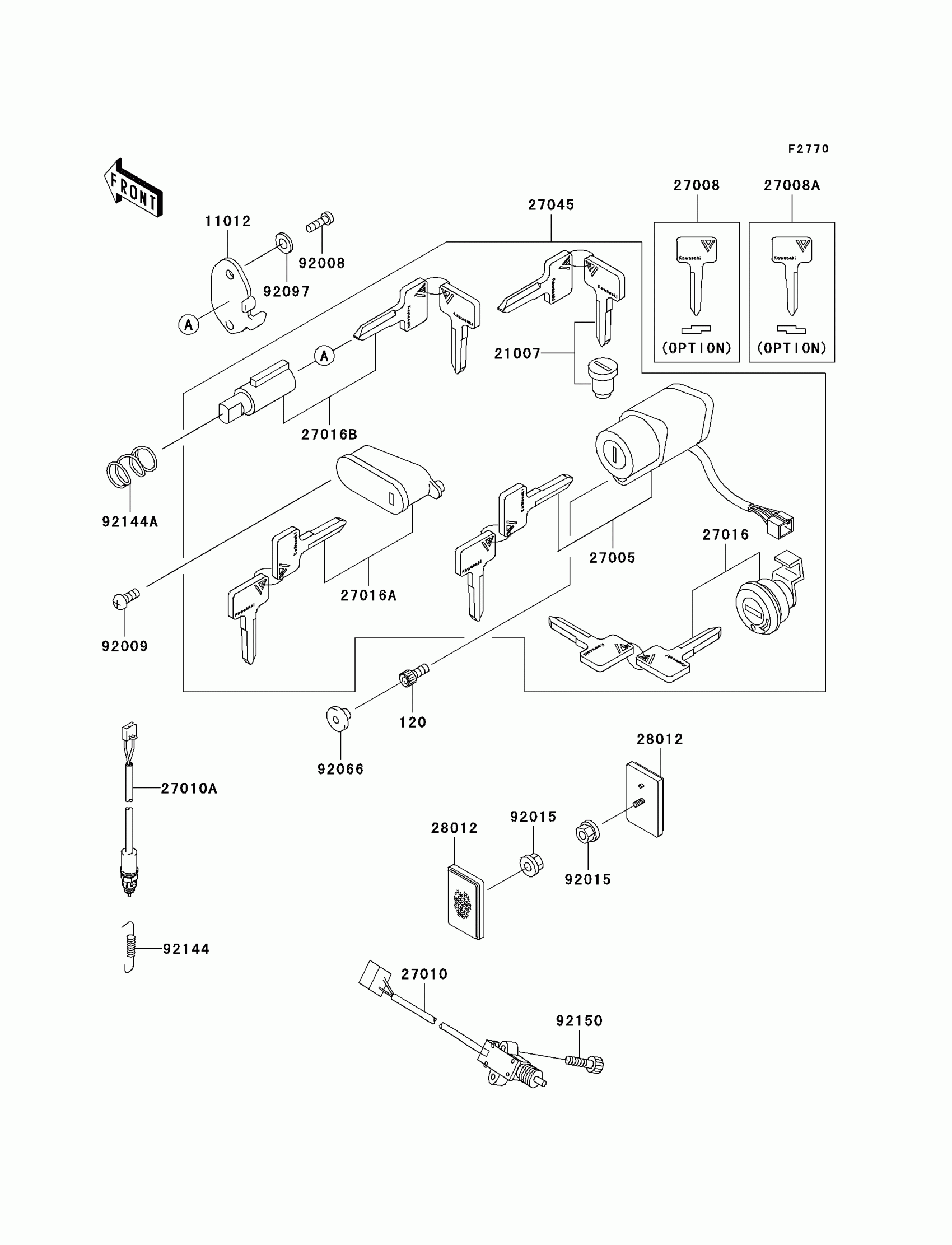

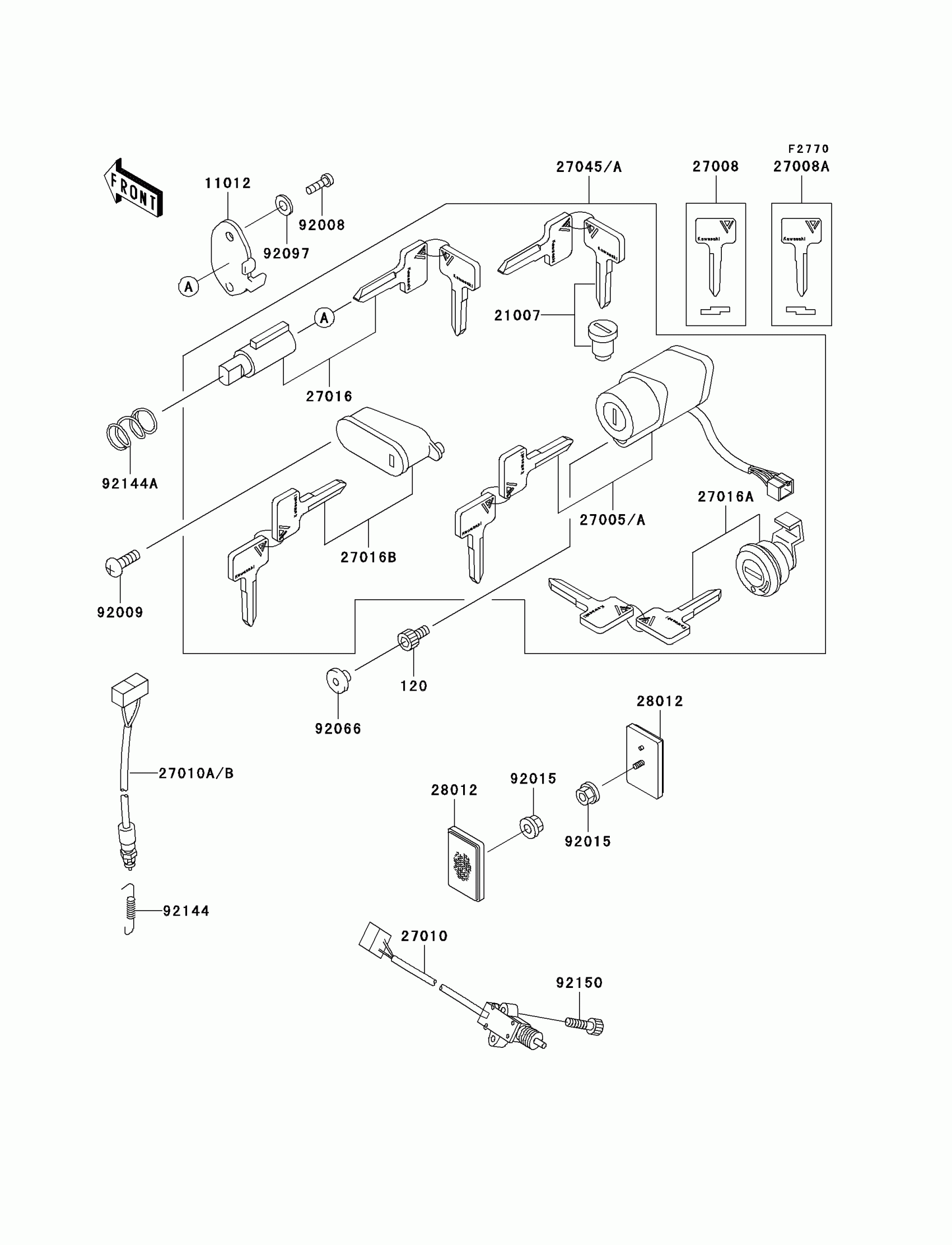

Kawasaki Vulcan 800 Classic Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET

120P0512

Unavailable

11012

CAP,STEERING LOCK

11012-1586

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5024

$74.13

27005A

SWITCH-ASSY-IGNITION

27005-1204

$163.93

27008

KEY-LOCK,BLANK,#A

27008-1138

$19.58

27008A

KEY-LOCK,BLANK,#B

27008-1139

$16.89

27010

SWITCH,SIDE STAND

27010-1352

$79.87

27010B

SWITCH,REAR BRAKE

27010-1370

$32.74

27016

LOCK-ASSY,STEERING

27016-5131

$87.55

27016A

LOCK-ASSY,LID

27016-5225

$70.92

27016B

LOCK-ASSY,HELMET

27016-5226

$69.10

27045A

SWITCH-ASSY

27045-5040

$377.37

28012

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

92008

SCREW,3.51MM

92008-007

$3.14

92009

SCREW,5X14

92009-1341

$3.75

92015

NUT,FLANGED,5MM

92015-1656

$2.00

92066

PLUG

92066-1435

$2.25

92097

WASHER,WAVE

92097-003

$3.43

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.14

92144A

SPRING,STEERING LOCK

92144-1222

$3.98

92150

BOLT,SOCKET,5X22

92150-1491

$3.03
