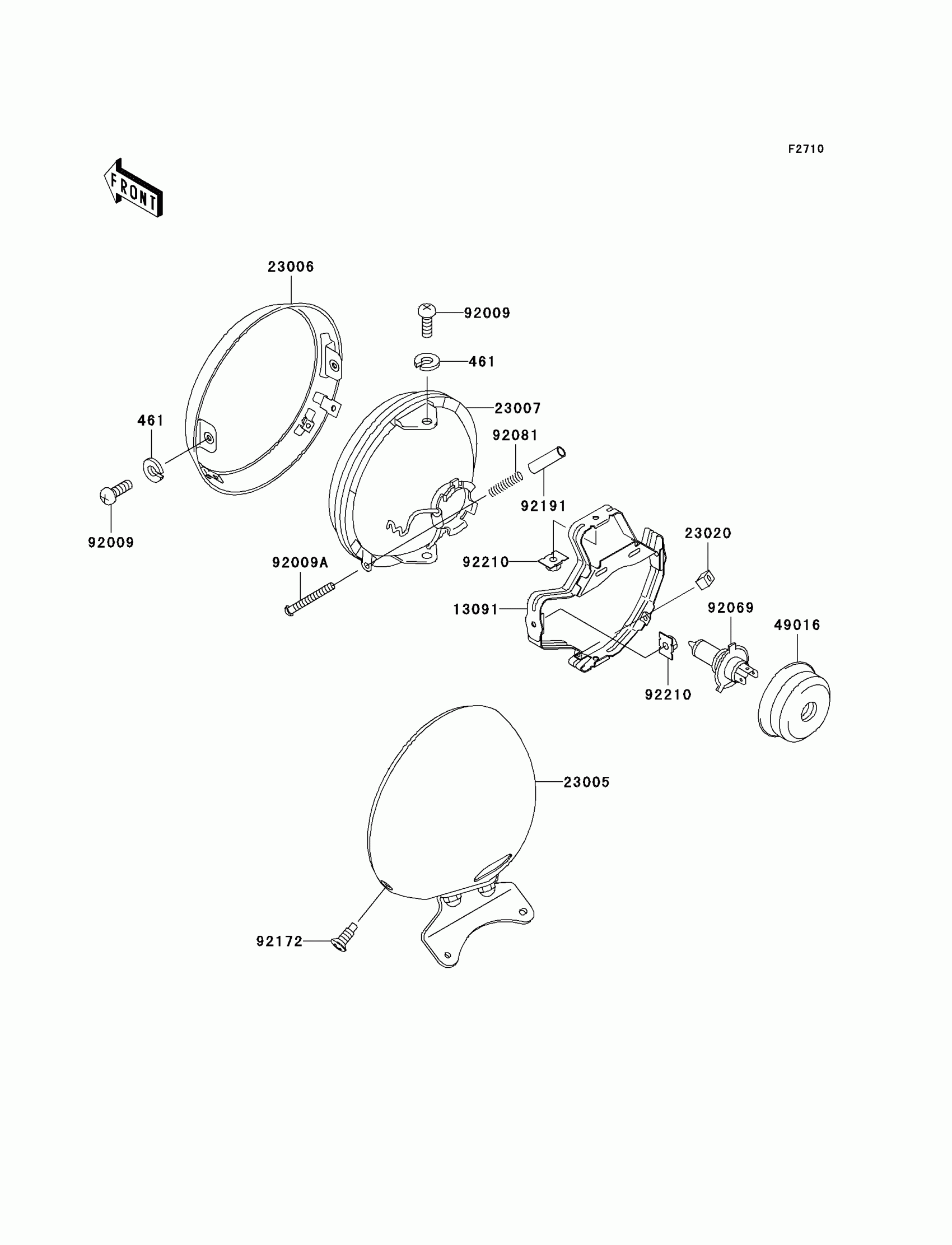

Kawasaki Vulcan 800 Classic Headlight(s) Diagram

Description

Price

461

WASHER SPRING 5MM

461F0500

Unavailable

13091

HOLDER,HEAD LAMP

13091-1948

$57.25

23005

BODY-COMP-HEAD LAMP

23005-1152

$449.79

23006

RIM-LAMP

23006-1071

$93.26

23007

LENS-COMP,HEAD LAMP

23007-1338

$142.67

23019

SCREW,SPECIAL,5X14

23019-024

$1.54

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

49016

COVER-SEAL,HEAD LAMP

49016-1046

$11.85

92009

SCREW,5X12

92009-1296

$3.53

92009A

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.17

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92081

SPRING,HEAD LAMP LENS

92081-1103

$4.10

92191

TUBE,3.5X5.5X19

92191-1217

$2.02

92210

NUT,SPECIAL,5MM

92210-1060

$2.03
