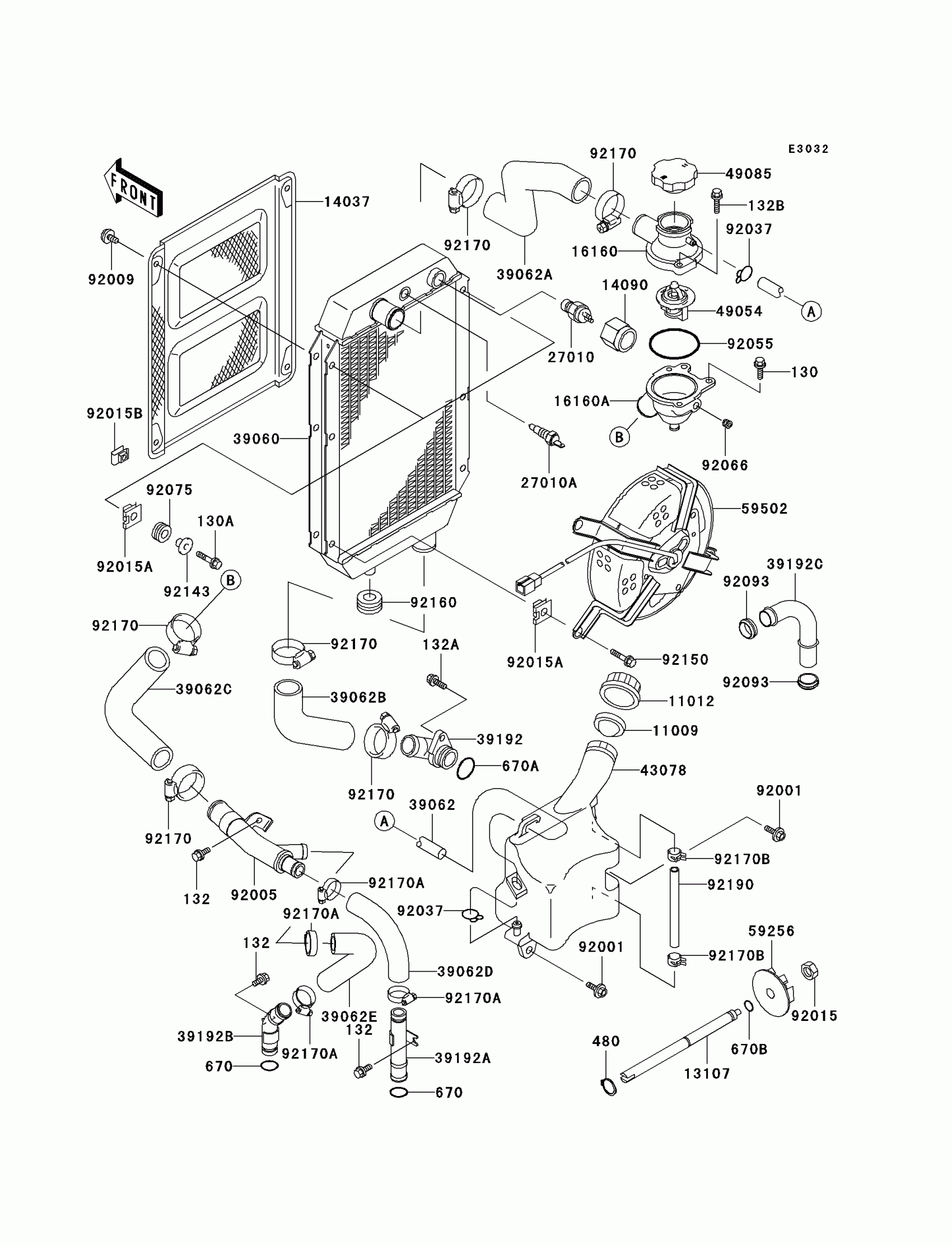

2000 Kawasaki Vulcan 800 Classic Radiator Diagram
Find the part on the Radiator diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
13107
SHAFT,IMPELLER
13107-1155
1
Out of stock
39062D
HOSE-COOLING,HEAD,RR-FITTING
39062-1649
1
Out of stock
39192C
PIPE-WATER,OUTLET
39192-1106
1
Out of stock
49054
THERMOSTAT
49054-1067
1
Out of stock
92005
FITTING
92005-1281
1
Out of stock
92009
SCREW,TAPPING,6MM
92009-1261
1
Out of stock
92015
NUT,LOCK,6MM,BLACK
92015-1191
1
Out of stock
92075
DAMPER
92075-1901
1
Out of stock
130
BOLT-FLANGED,6X16,BLACK
130J0616
1
Out of stock
130A
BOLT-FLANGED,6X25
130J0625
1
Out of stock
132
BOLT-FLANGED-SMALL,6X12
132J0612
1
Out of stock
132A
BOLT-FLANGED-SMALL,6X18
132J0618
1
Out of stock
132B
BOLT-FLANGED-SMALL,6X20
132J0620
1
Out of stock
