1989 Kawasaki Vulcan 750 Clutch Diagram

← All diagrams

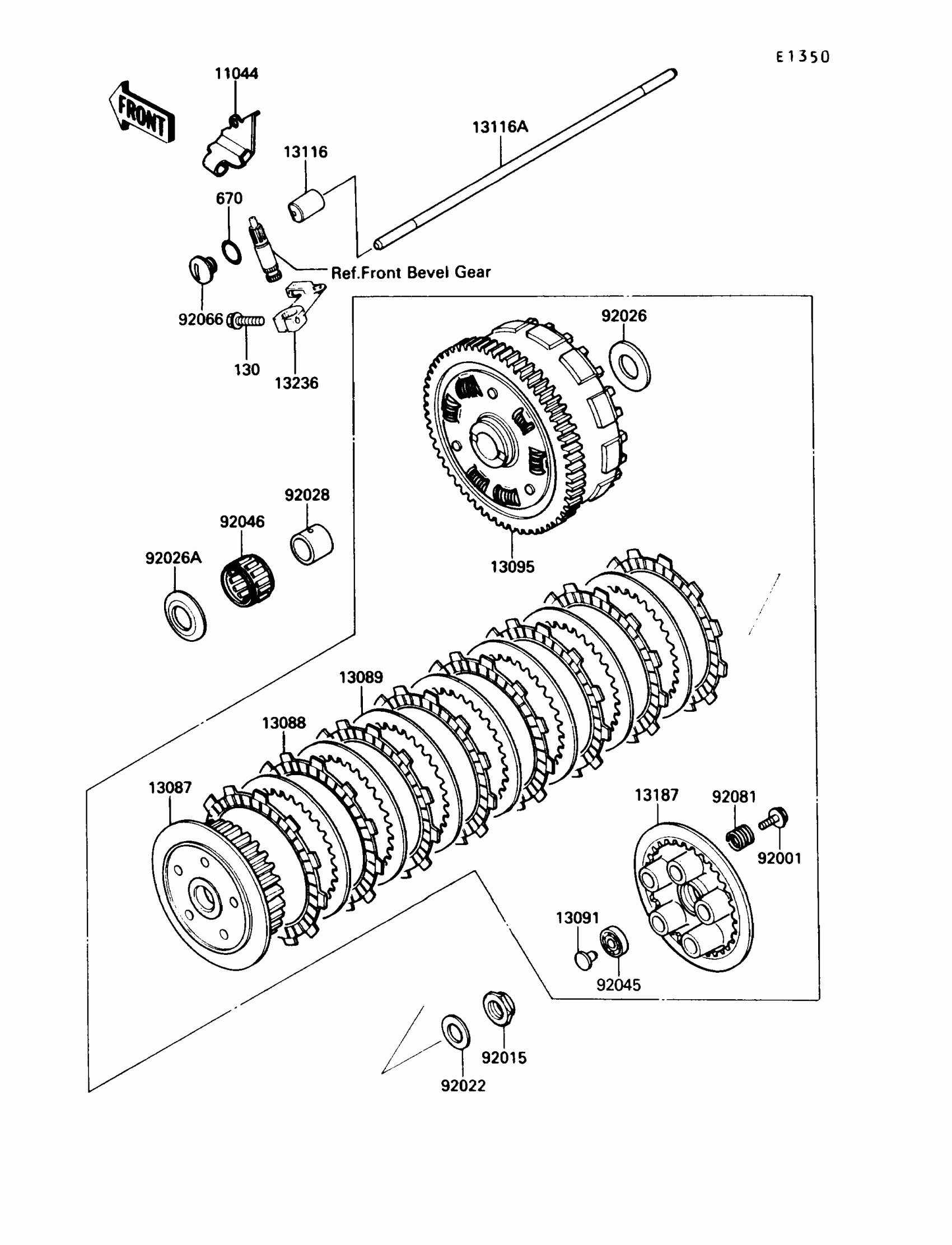

Find the part on the Clutch diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

1

$11.41

In stock

13087

HUB-CLUTCH

13087-042

1
Out of stock

13088

PLATE-FRICTION

13088-1062

1
Out of stock

13089

PLATE-CLUTCH

13089-027

1

$10.14

In stock

13091

HOLDER,CLUTCH PUSH ROD

13091-1085

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1119

1
Out of stock

13116

ROD-PUSH,CLUTCH,6T

13116-1040

1

$20.88

In stock

13116A

ROD-PUSH,L=316.5

13116-1114

1

$41.49

In stock

13187

1

$76.98

In stock

13236

LEVER-COMP,CLUTCH RELEASE

13236-1140

1
Out of stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

1

$16.49

In stock

92028

BUSHING,25X32X23.6

92028-178

1

$23.53

In stock

92045

1

$12.85

In stock

92046

1

$19.92

In stock

92066

PLUG

92066-1237

1

$32.70

In stock

92081

SPRING,CLUTCH

92081-1033

1

$5.88

In stock

130

1

$1.41

In stock

670

O RING,15MM

670B2015

1

$1.25

In stock
