1989 Kawasaki Vulcan 750 Front Bevel Gear Diagram

← All diagrams

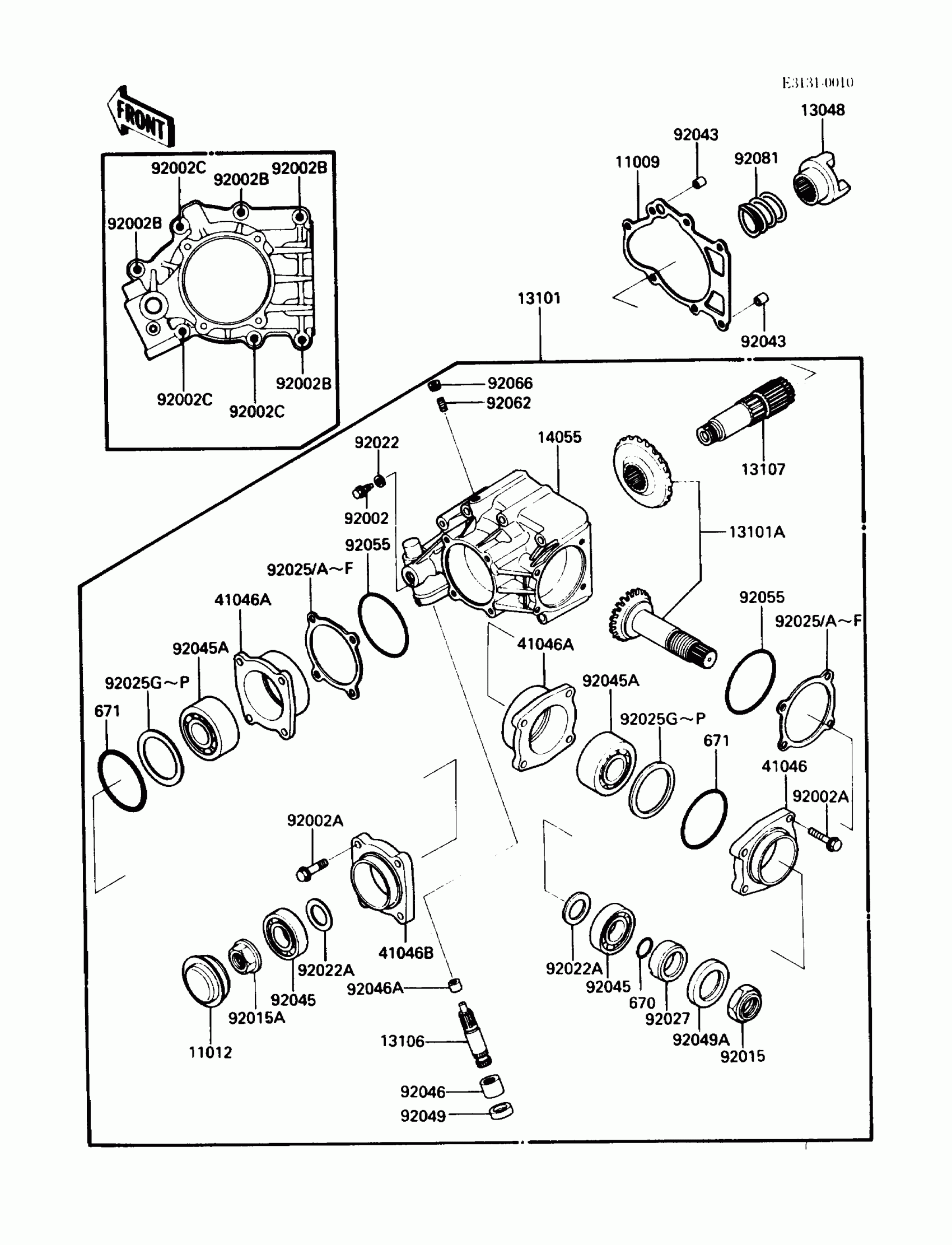

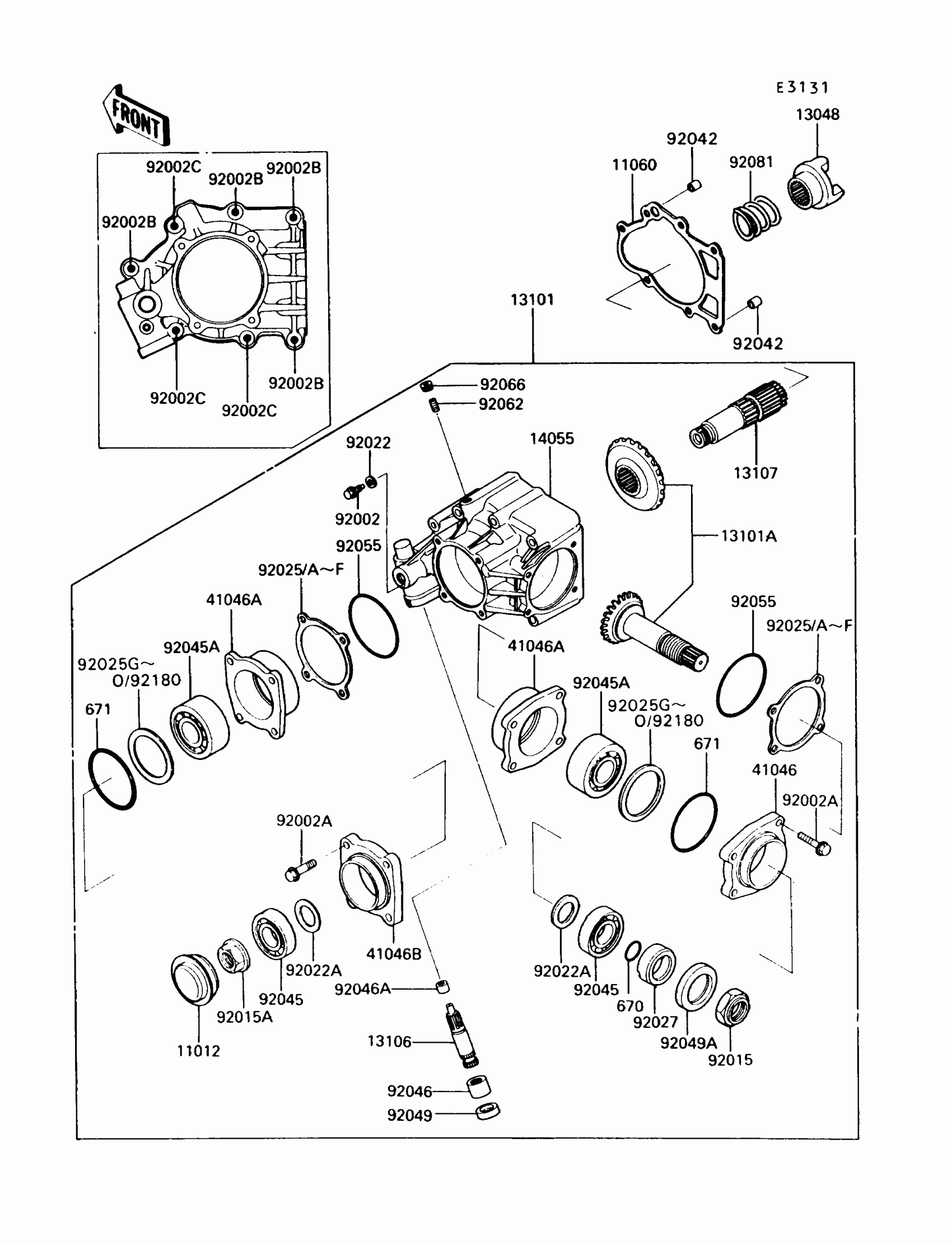

Find the part on the Front Bevel Gear diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,GEAR CASE

11009-1510

1
Out of stock

11012

CAP,FRONT BEVEL

11012-1672

1
Out of stock

13048

CAM-DAMPER

13048-1058

1
Out of stock

13101

GEAR-ASSY,BEVEL,FR

13101-1094

1
Out of stock

13101A

GEAR-ASSY,BEVEL,FR

13101-5048

1
Out of stock

13106

SHAFT-CLUTCH RELEASE

13106-1068

1
Out of stock

13107

SHAFT,BEVEL GEAR,FR

13107-1166

1
Out of stock

14055

CASE-GEAR,BEVEL,FR

14055-1068

1
Out of stock

41046

HOUSING-BEARING,BEVEL,FR

41046-1072

1
Out of stock

41046A

HOUSING-BEARING,BEVEL,FR

41046-1073

1
Out of stock

41046B

HOUSING-BEARING,BEVEL,FR

41046-1090

1
Out of stock

92002

BOLT,FLANGED-SMALL,6X7X2.5

92002-1357

1
Out of stock

92002A

BOLT,6X32

92002-1623

1
Out of stock

92002B

BOLT,6X85

92002-1624

1
Out of stock

92002C

BOLT,FLANGED-SMALL,M6X95

92002-1625

1
Out of stock

92015

NUT,25MM

92015-1480

1
Out of stock

92015A

NUT

92015-1543

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92022A

WASHER

92022-1719

1
Out of stock

92025

SHIM,T=0.10

92025-1258

—
Out of stock

92025A

SHIM,T=0.15

92025-1259

—
Out of stock

92025B

SHIM,T=0.20

92025-1260

—
Out of stock

92025C

SHIM,T=0.30

92025-1261

—
Out of stock

92025D

SHIM,T=0.60

92025-1262

—
Out of stock

92025E

SHIM,T=0,90

92025-1263

—
Out of stock

92025F

SHIM,T=1.20

92025-1264

—
Out of stock

92025G

SHIM,52.5X61.5X0.12

92025-1668

—
Out of stock

92025H

SHIM,52.5X61.5X0.15

92025-1669

—
Out of stock

92025I

SHIM,52.5X61.5X0.18

92025-1670

—
Out of stock

92025J

SHIM,52.5X61.5X0.8

92025-1671

—
Out of stock

92025K

SHIM,52.5X61.5X0.9

92025-1672

—
Out of stock

92025L

SHIM,52.5X61.5X1.0

92025-1673

—
Out of stock

92025M

SHIM,52.5X61.5X1.1

92025-1674

—
Out of stock

92025N

SHIM,52.5X61.5X1.2

92025-1675

—
Out of stock

92025O

SHIM,52.5X61.5X1.3

92025-1676

—
Out of stock

92025P

SHIM,52.5X61.5X1.4

92025-1677

—
Out of stock

92027

COLLAR

92027-1843

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92045

BEARING-BALL,6205

92045-1115

1
Out of stock

92045A

BEARING-BALL,5305SH2CD2

92045-1147

1
Out of stock

92046

BEARING-NEEDLE,7E-HK1412

92046-037

1
Out of stock

92046A

BEARING-NEEDLE,HK0709

92046-1142

1
Out of stock

92049

SEAL-OIL,TC14244.8

92049-1037

1
Out of stock

92049A

SEAL-OIL,TC35527

92049-1038

1
Out of stock

92055

RING-O

92055-1306

1
Out of stock

92062

NOZZLE,BLACK

92062-011

1
Out of stock

92066

PLUG,PT1/8X7

92066-1227

1
Out of stock

92081

SPRING

92081-1552

1
Out of stock

670

O RING,21MM

670B2021

1
Out of stock

671

O RING,65MM

671B2565

1
Out of stock
