1989 Kawasaki Vulcan 750 Rear Wheel/chain Diagram

← All diagrams

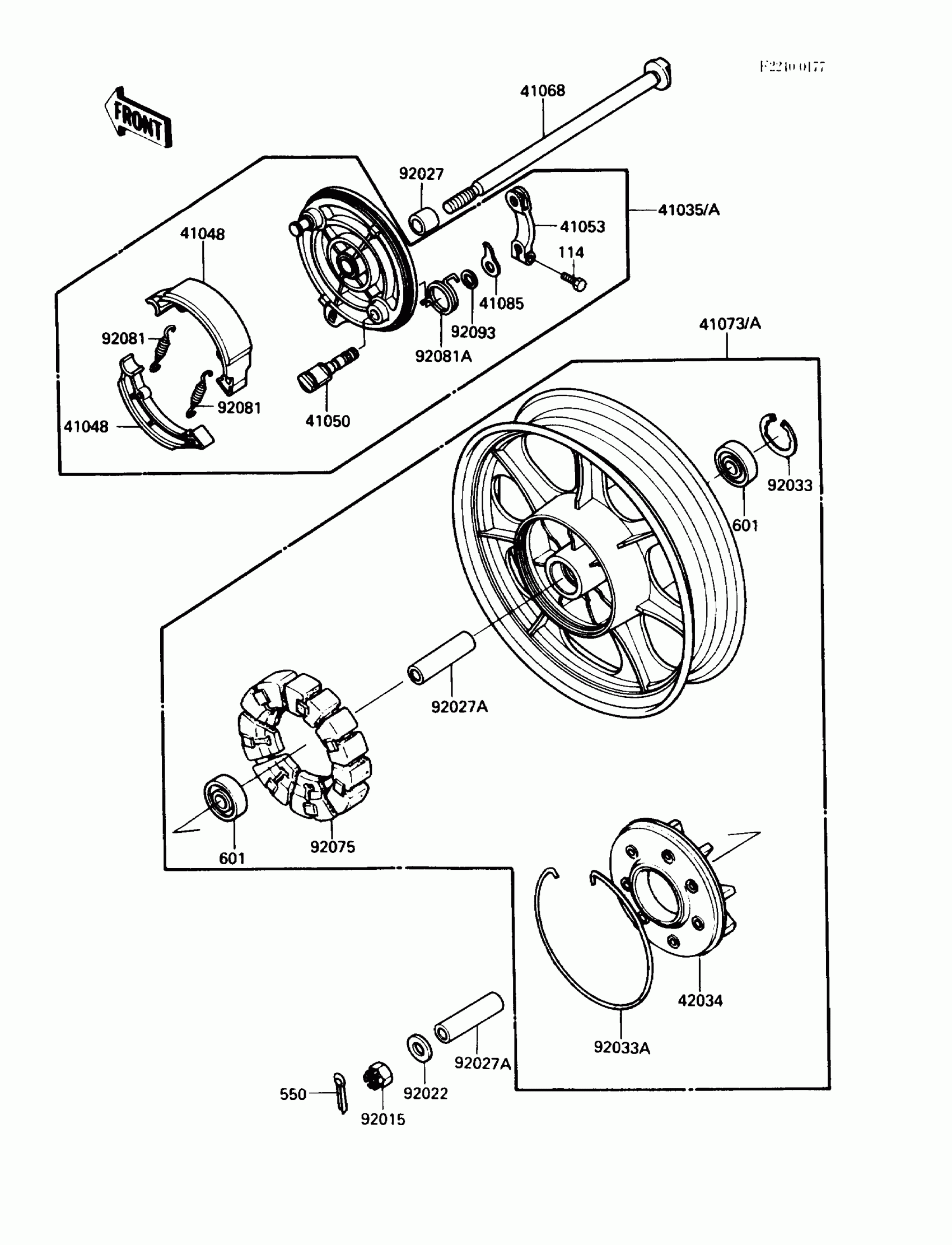

Find the part on the Rear Wheel/chain diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41035A

PANEL-ASSY-BRAKE,RR

41035-1221

1
Out of stock

41048

SHOE-BRAKE

41048-1059

1
Out of stock

41050

CAM-BRAKE

41050-1059

1
Out of stock

41053

LEVER-BRAKE CAM

41053-1063

1
Out of stock

41068

AXLE,RR

41068-1191

1
Out of stock

41073

WHEEL-ASSY,RR,SILVER NO.1

41073-1307-T7

1
Out of stock

41085

INDICATOR

41085-1054

1
Out of stock

42034

COUPLING,RR HUB

42034-1029

1
Out of stock

92015

NUT,16MM

92015-055

1
Out of stock

92022

WASHER,17.3X32X3.2

42046-009

1
Out of stock

92027

COLLAR

92027-1486

1
Out of stock

92027A

COLLAR,17.2X25X74

92027-1867

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92033A

RING-SNAP,194MM

92033-1075

1
Out of stock

92075

DAMPER,RR HUB SHOCK

92075-1372

1
Out of stock

92081

SPRING,BRAKE SHOE

41049-007

1
Out of stock

92081A

SPRING,BRAKE CAM LEVER RETURN

92081-1816

1
Out of stock

92093

SEAL,BRAKE CAM

41051-003

1
Out of stock

114

BOLT HEX HEAD 8X28

114G0828

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6303ZZC3

601B6303ZZ

1
Out of stock
