1989 Kawasaki Vulcan 750 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

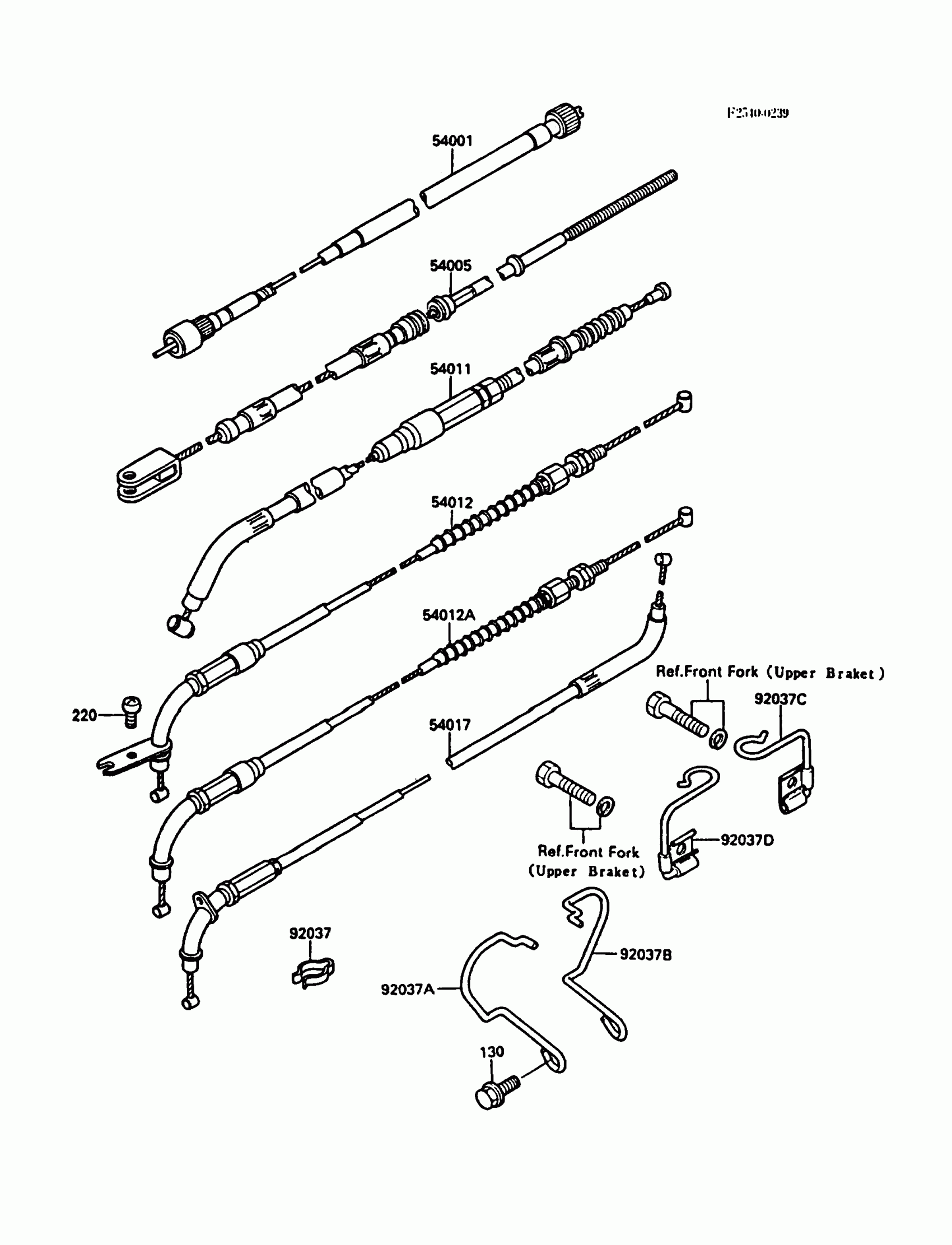

1989 Kawasaki Vulcan 750 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE-SPEEDOMETER

54001-1029

1
Out of stock

54005

CABLE-BRAKE

54005-1124

1

$54.21

In stock

54011

CABLE-CLUTCH

54011-1227

1

$40.22

In stock

54012

1

$39.72

In stock

54012A

1

$35.55

In stock

54017

CABLE-STARTER

54017-1059

1

$38.42

In stock

92037

CLAMP

92037-093

1

$10.92

In stock

92037A

CLAMP,HARNESS

92037-1638

1

$11.02

In stock

92037B

CLAMP,CABLE

92037-1639

1

$16.46

In stock

92037C

CLAMP,CABLE

92037-1666

1

$16.46

In stock

92037D

CLAMP,CABLE

92037-1667

1

$13.73

In stock

130

BOLT-FLANGED,6X14

130C0614

1
Out of stock

220

SCREW-PAN-CROS

220C0514

1

$1.54

In stock
