1989 Kawasaki Vulcan 750 Swingarm Diagram

← All diagrams

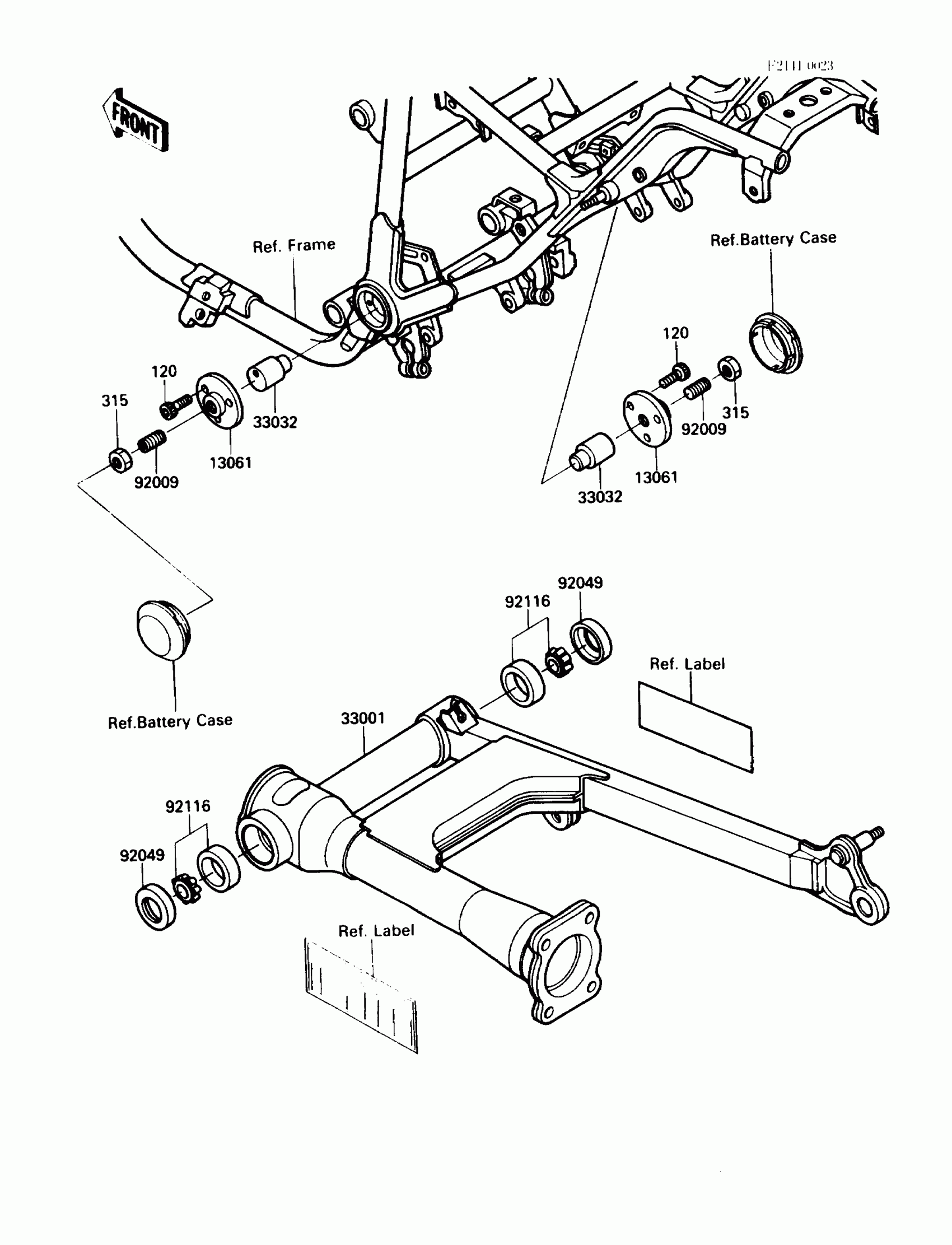

Find the part on the Swingarm diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS

13061-1149

1

$42.93

In stock

33001

ARM-COMP-SWING

33001-1234

1

$530.23

In stock

33032

SHAFT-SWING ARM

33032-1043

1

$47.12

In stock

92009

SCREW,SOCKET,12X22

92009-1374

1
Out of stock

92049

SEAL-OIL,26406

92049-1030

1
Out of stock

92116

1

$34.73

In stock

120

BOLT-SOCKET,6X16

120P0616

1
Out of stock

315

NUT-HEX-FINE

315B1200

1
Out of stock
