1989 Kawasaki Vulcan 750 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

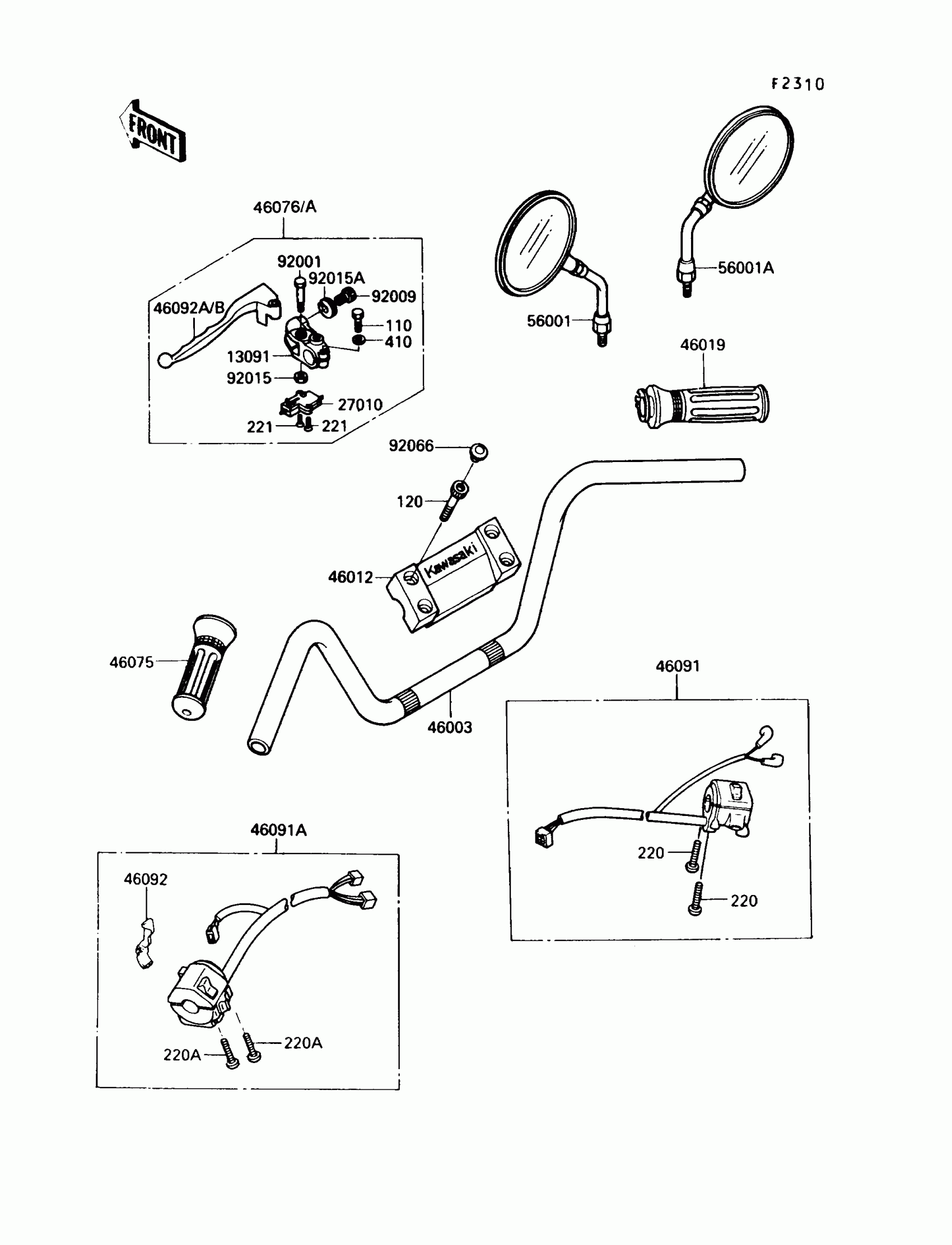

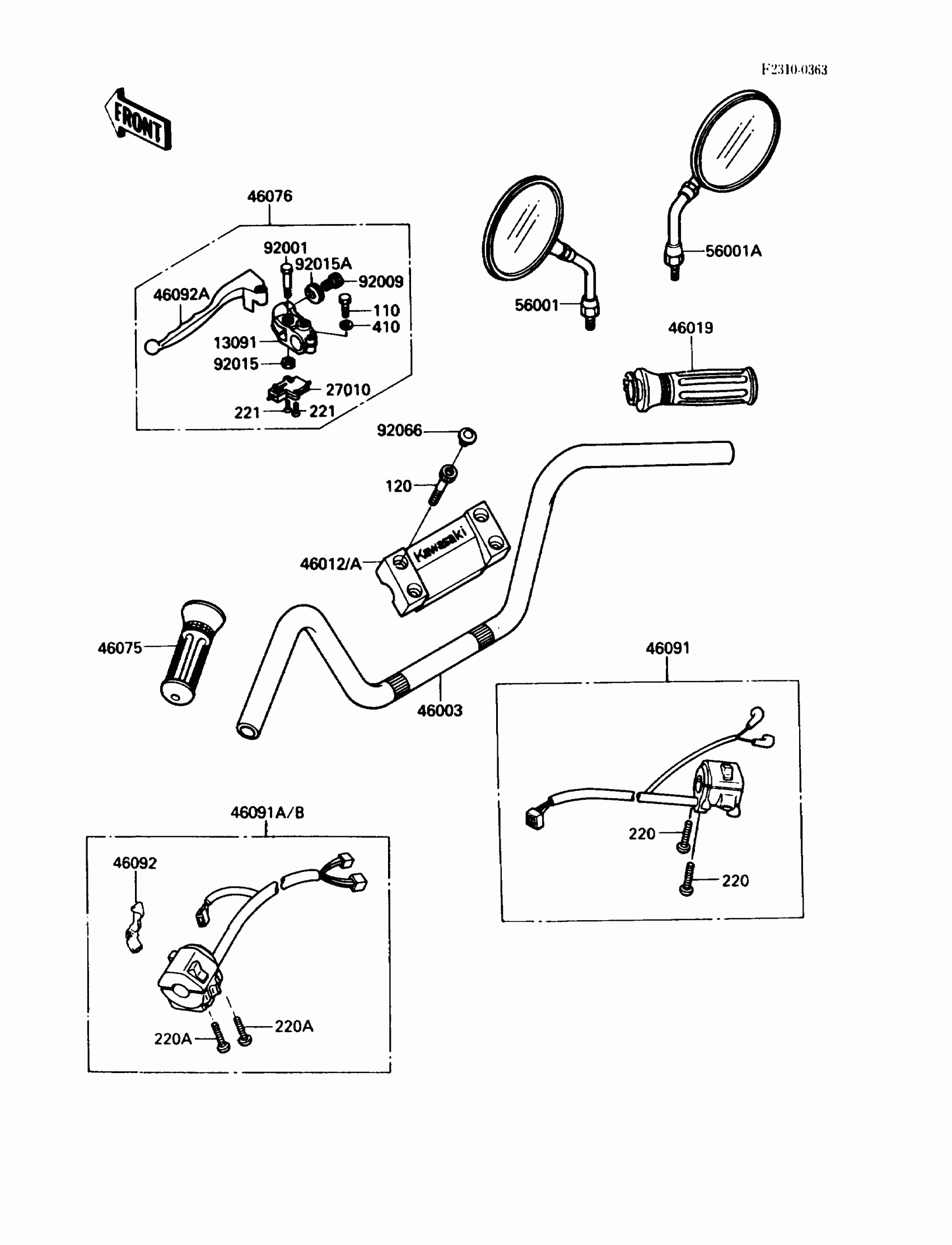

1989 Kawasaki Vulcan 750 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CLUTCH LEVER,F.BLACK

13091-1185

1
Out of stock

27010

SWITCH,CLUTCH,BLACK

27010-1094

1

$26.29

In stock

46003

HANDLE

46003-1179

1
Out of stock

46012A

HOLDER-HANDLE

46012-1139

1

$163.55

In stock

46019

GRIP-ASSY,THROTTLE

46019-1062

1

$34.15

In stock

46075

GRIP,LH

46075-1061

1
Out of stock

46076

1

$120.41

In stock

46091

HOUSING-ASSY-CONTROL,RH

46091-1372

1
Out of stock

46091B

1

$223.56

In stock

46092

LEVER-GRIP,CHOKE

46092-1124

1

$6.95

In stock

46092A

LEVER-GRIP,CLUTCH

46092-1151

1

$57.52

In stock

56001

MIRROR-ASSY,LH

56001-1264

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1265

1
Out of stock

92001

1

$6.73

In stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92066

PLUG

92066-1216

1

$3.69

In stock

110

BOLT,6X22,BLACK

110C0622

1
Out of stock

120

BOLT-SOCKET,8X30

120S0830

1
Out of stock

220

SCREW-PAN-CROS,5X40

220C0540

1
Out of stock

220A

1

$1.73

In stock

221

SCREW-CSK-CROS

221C0316

1

$3.24

In stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock
