1989 Kawasaki Vulcan 750 Front Master Cylinder Diagram

← All diagrams

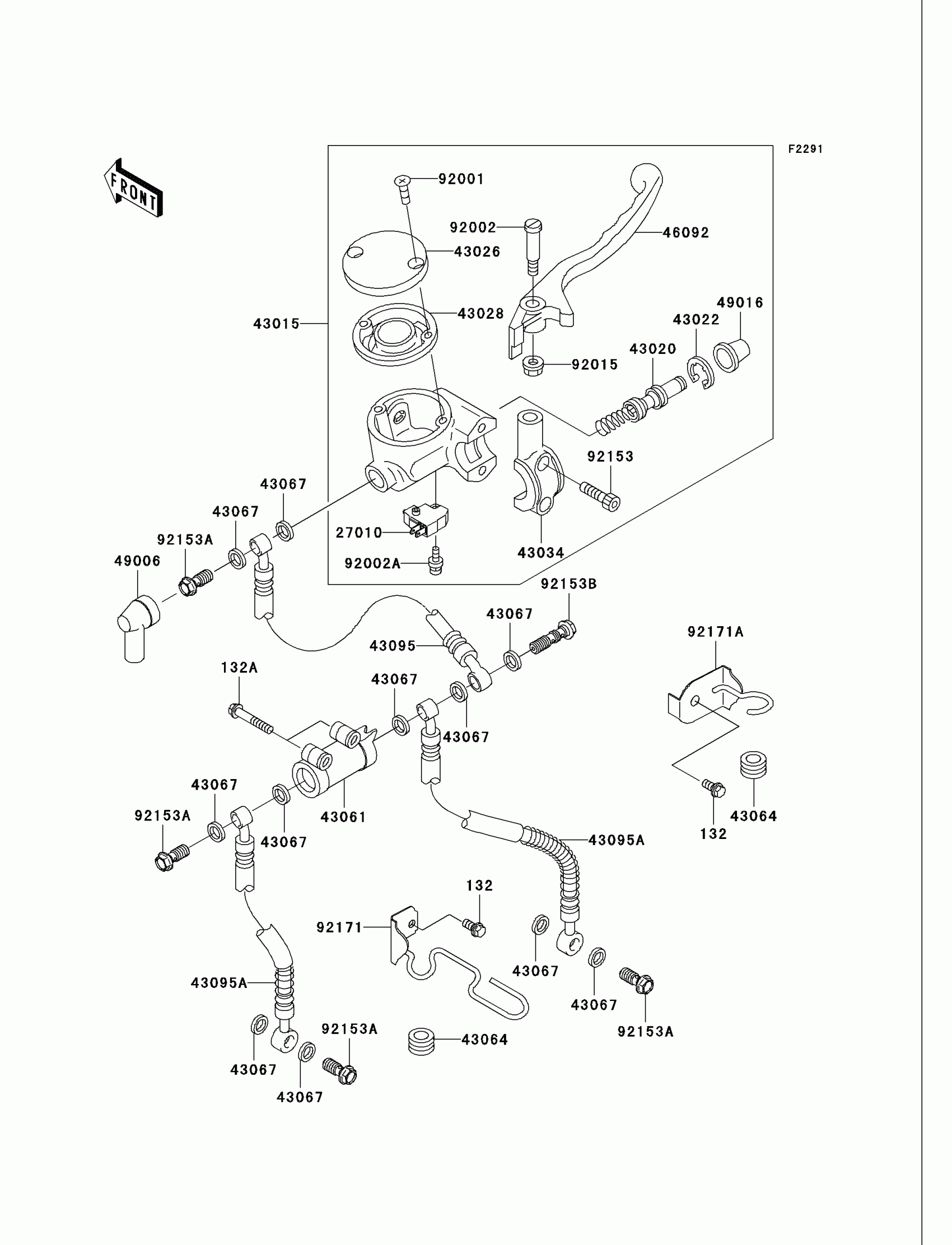

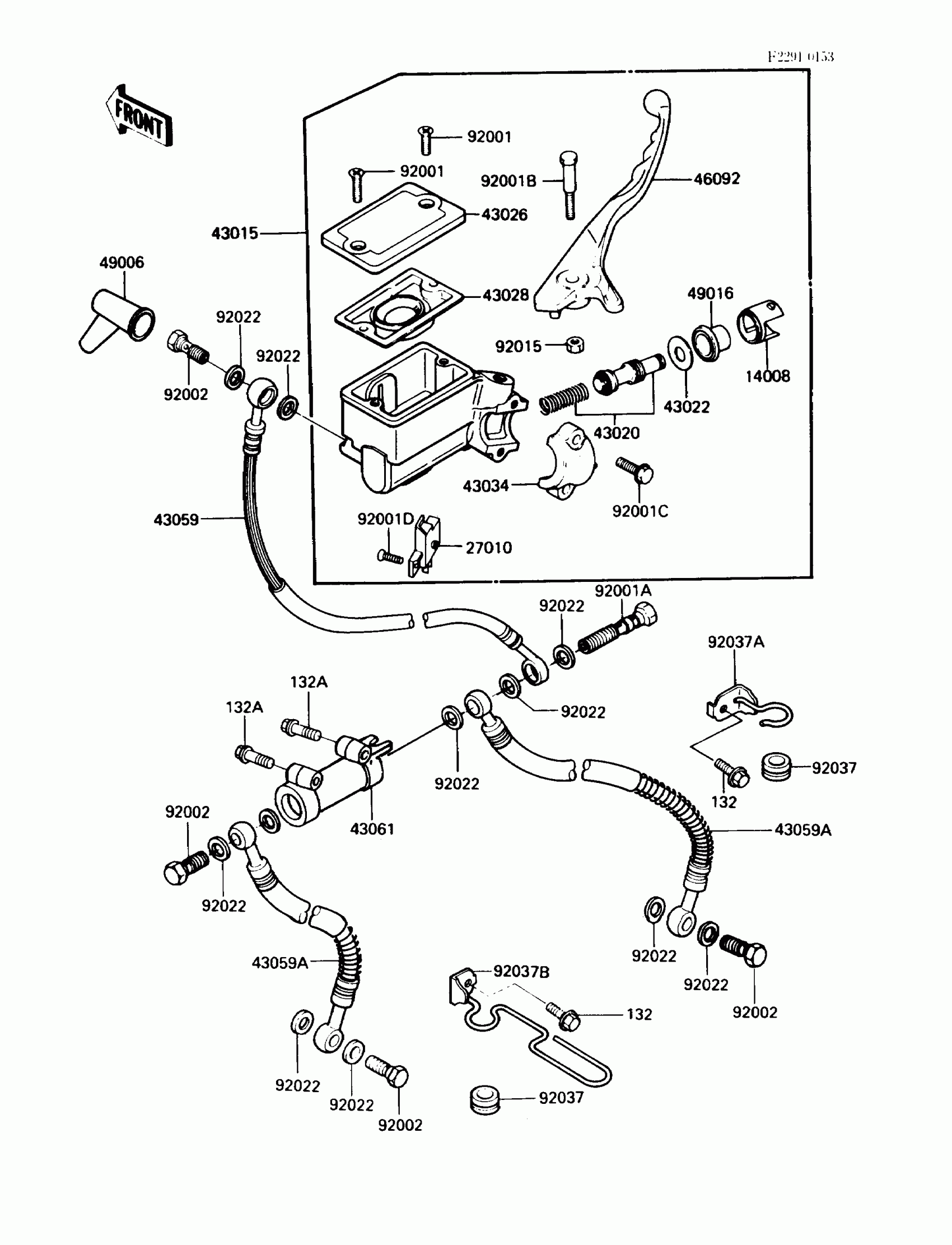

Find the part on the Front Master Cylinder diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 750 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER,PISTON

14008-1035

1
Out of stock

27010

SWITCH,BRAKE

27010-1056

1
Out of stock

43015

1

$424.38

In stock

43020

PISTON-COMP-BRAKE

43020-1079

1

$92.31

In stock

43022

1

$5.20

In stock

43026

CAP-BRAKE

43026-1056

1
Out of stock

43028

1

$25.99

In stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

43059

HOSE-BRAKE

43059-1293

1
Out of stock

43059A

HOSE-BRAKE

43059-1310

1

$125.11

In stock

43061

JOINT-BRAKE

43061-1002

1

$73.52

In stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1150

1
Out of stock

49006

BOOT,DUST

49006-1040

1

$9.11

In stock

49016

1

$10.69

In stock

92001

1

$4.84

In stock

92001A

BOLT,BANJO,10X37

92001-1203

1

$9.38

In stock

92001B

BOLT,6X37.3,BLACK

92001-1512

1

$9.97

In stock

92001C

BOLT,6X25,W/WASHER,BLACK

92001-1513

1
Out of stock

92001D

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock

92037A

CLAMP,BRAKE HOSE

92037-1218

1

$21.22

In stock

92037B

CLAMP,BRAKE HOSE,LH

92037-1367

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X35

132G0635

1
Out of stock
