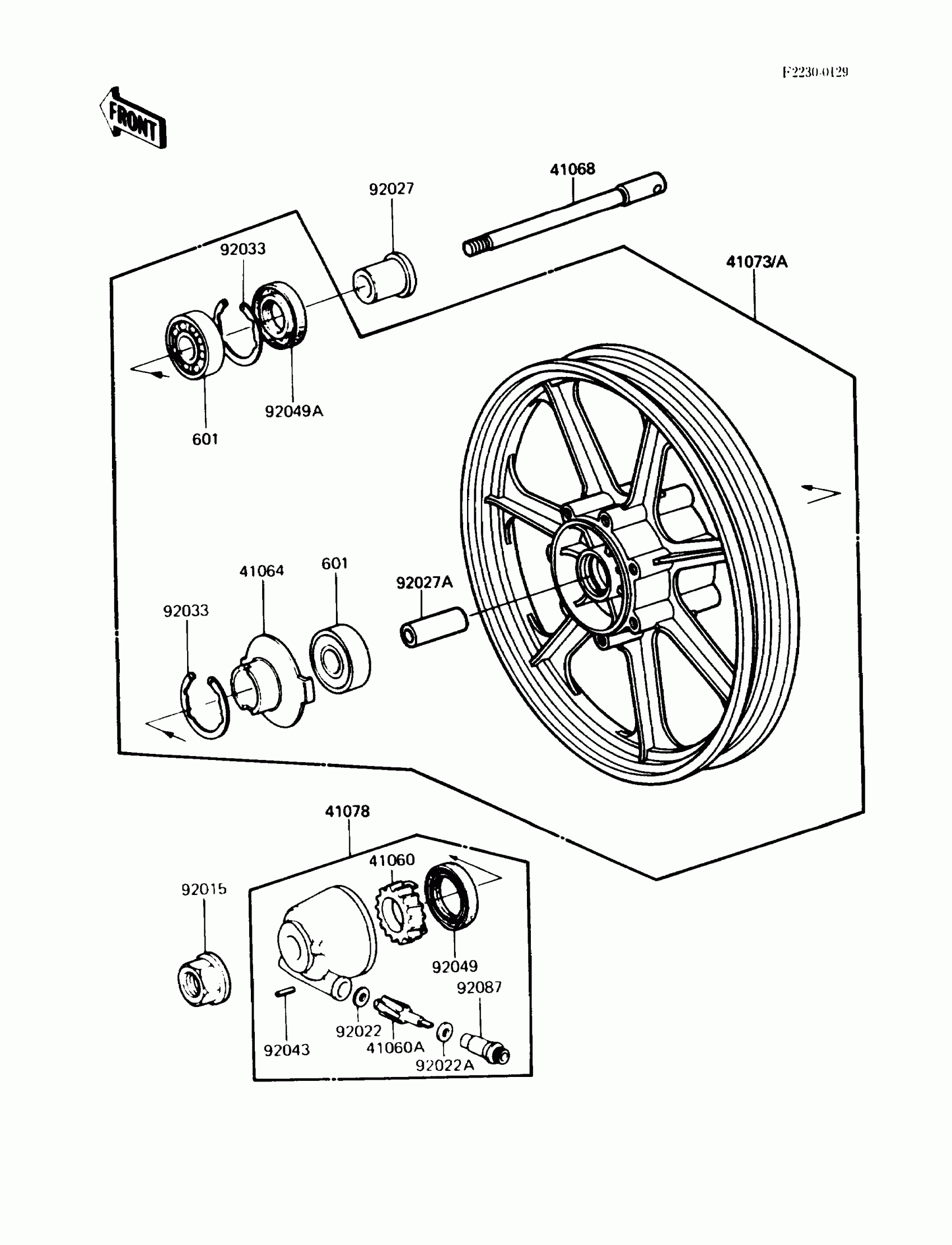

Kawasaki Vulcan 750 Front Wheel Diagram

Description

Price

41060

GEAR-METER SCREW,26T

41059-026

$43.35

41060A

GEAR-METER SCREW,9T

41060-1016

Unavailable

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.33

41068

AXLE,FR

41068-1189

$74.19

41073

WHEEL-ASSY,FR,SILVER NO.1

41073-1306-T7

$1,131.07

41078

CASE-ASSY-METER GEAR,F.BLACK

41078-1024

Unavailable

92015

NUT,14MM

92015-1032

$7.54

92022

WASHER,5.1X9X0.4

41063-001

$4.17

92022A

WASHER,5.1X10X1

92022-1062

$4.17

92027

COLLAR,L=30

92027-1225

$16.49

92027A

COLLAR,L=70

92027-1866

$20.88

92033

RING-SNAP,42MM

92033-1041

$4.64

92043

PIN,SPRING

41082-001

$3.53

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,BJN22425

92049-1058

$7.41

92087

BUSHING-METER GEAR

92087-1002

$22.34

601

BEARING-BALL

601B6302U

$38.63
