1989 Kawasaki Vulcan 750 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

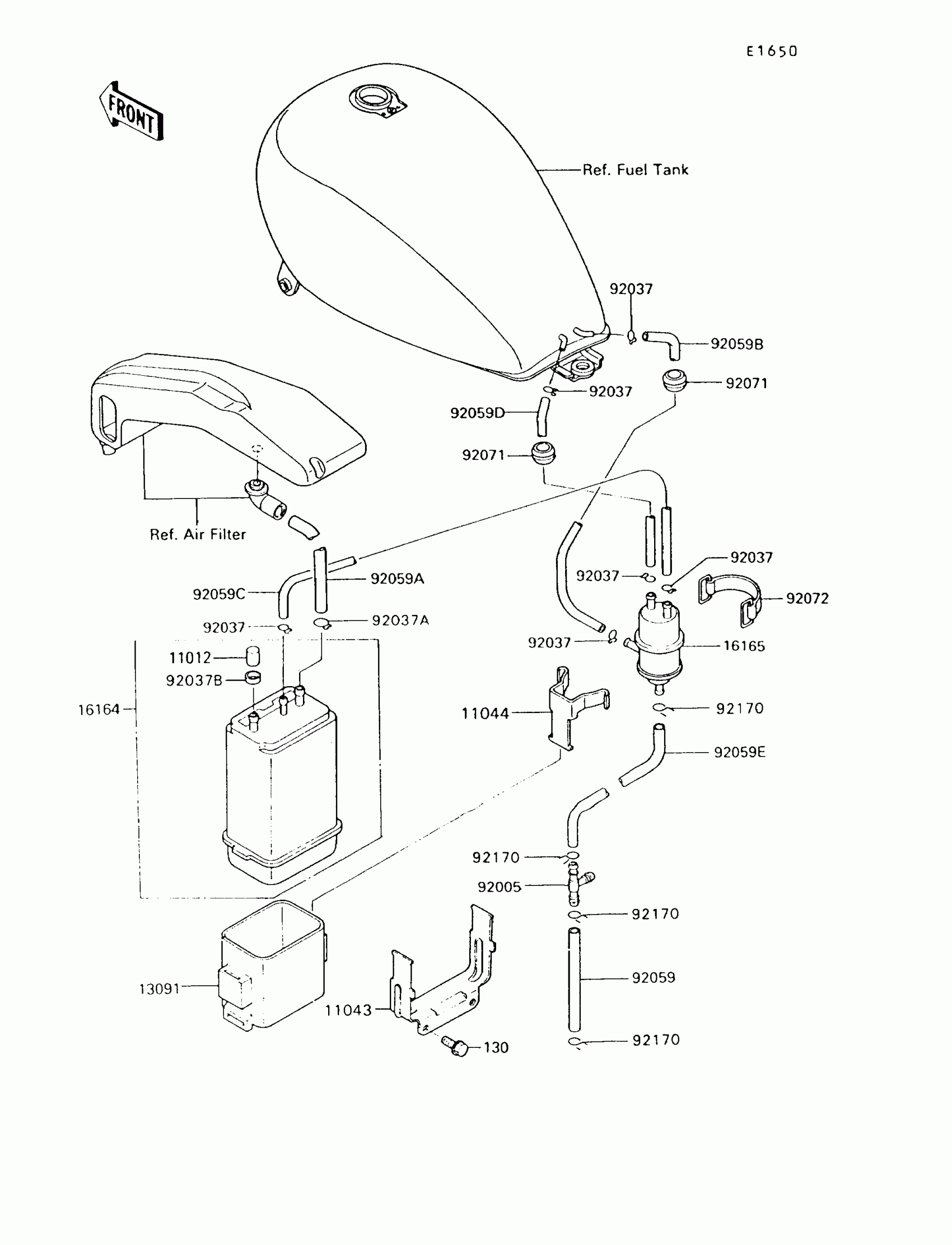

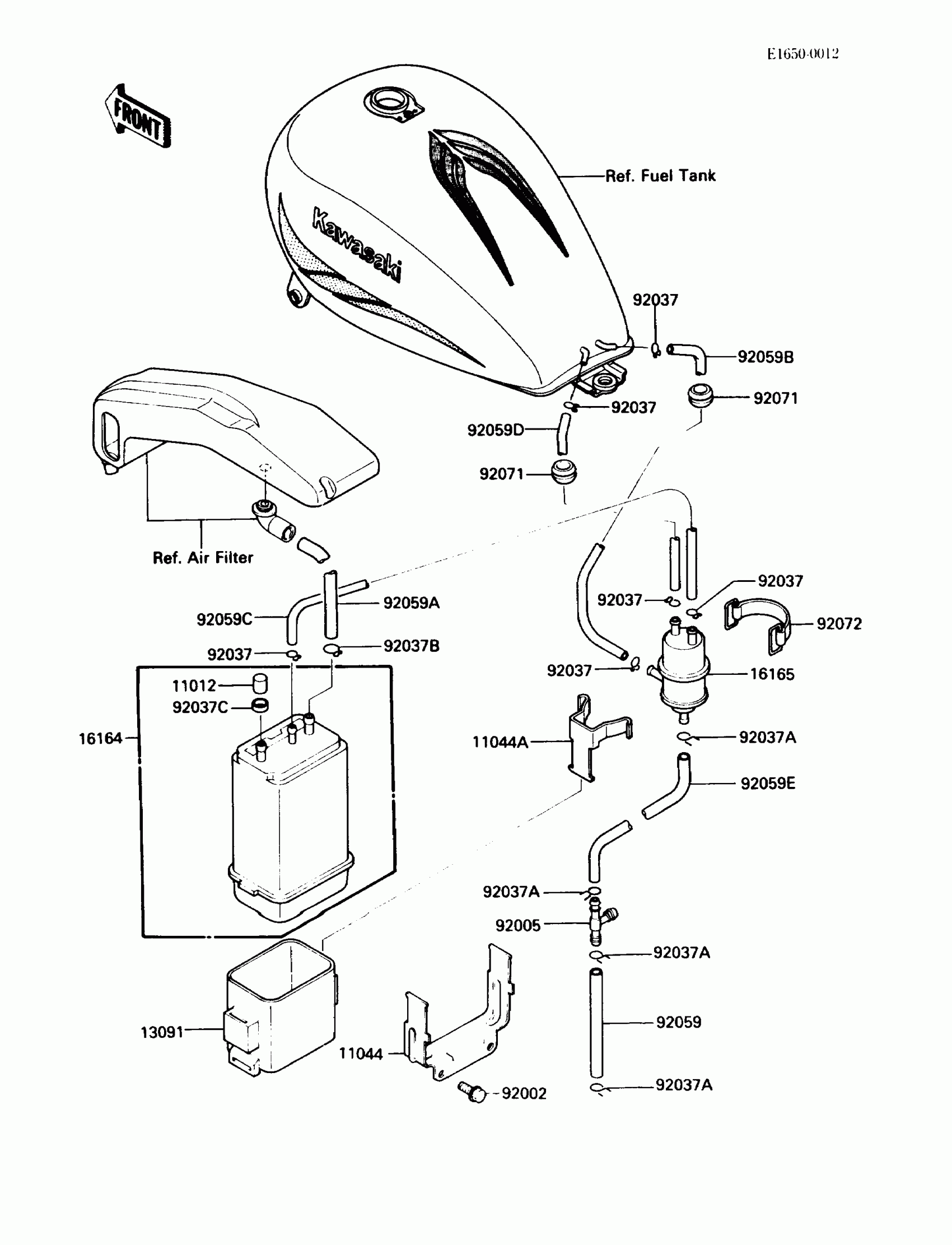

1989 Kawasaki Vulcan 750 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1
Out of stock

11044

BRACKET,CANISTER

11043-1168

1
Out of stock

11044A

BRACKET,CANISTER

11044-1056

1
Out of stock

13091

HOLDER,CANISTER

13091-1343

1

$54.30

In stock

16164

CANISTER

16164-1054

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92002

BOLT,FLANGED,6X12

92002-1433

1
Out of stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92037

CLAMP,TUBE

92037-010

1
Out of stock

92037A

CLAMP,TUBE

92037-072

1
Out of stock

92037B

CLAMP-HOSE

92037-1104

1
Out of stock

92037C

CLAMP,CANISTER

92037-1512

1
Out of stock

92059

TUBE,4X9X110

92059-1131

1
Out of stock

92059A

TUBE,7X12X540,GREEN

92059-1415

1
Out of stock

92059B

TUBE,5X8X470,RED

92059-1564

1
Out of stock

92059C

TUBE,5X8X230,BLUE

92059-1566

1
Out of stock

92059D

TUBE,5X8X400,BLUE

92059-1567

1
Out of stock

92059E

TUBE,4X9X420,WHITE

92059-1568

1
Out of stock

92071

GROMMET,10MM

92071-019

1
Out of stock

92072

BAND,L=50

92072-066

1
Out of stock
