1996 Kawasaki Vulcan 500 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1996 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

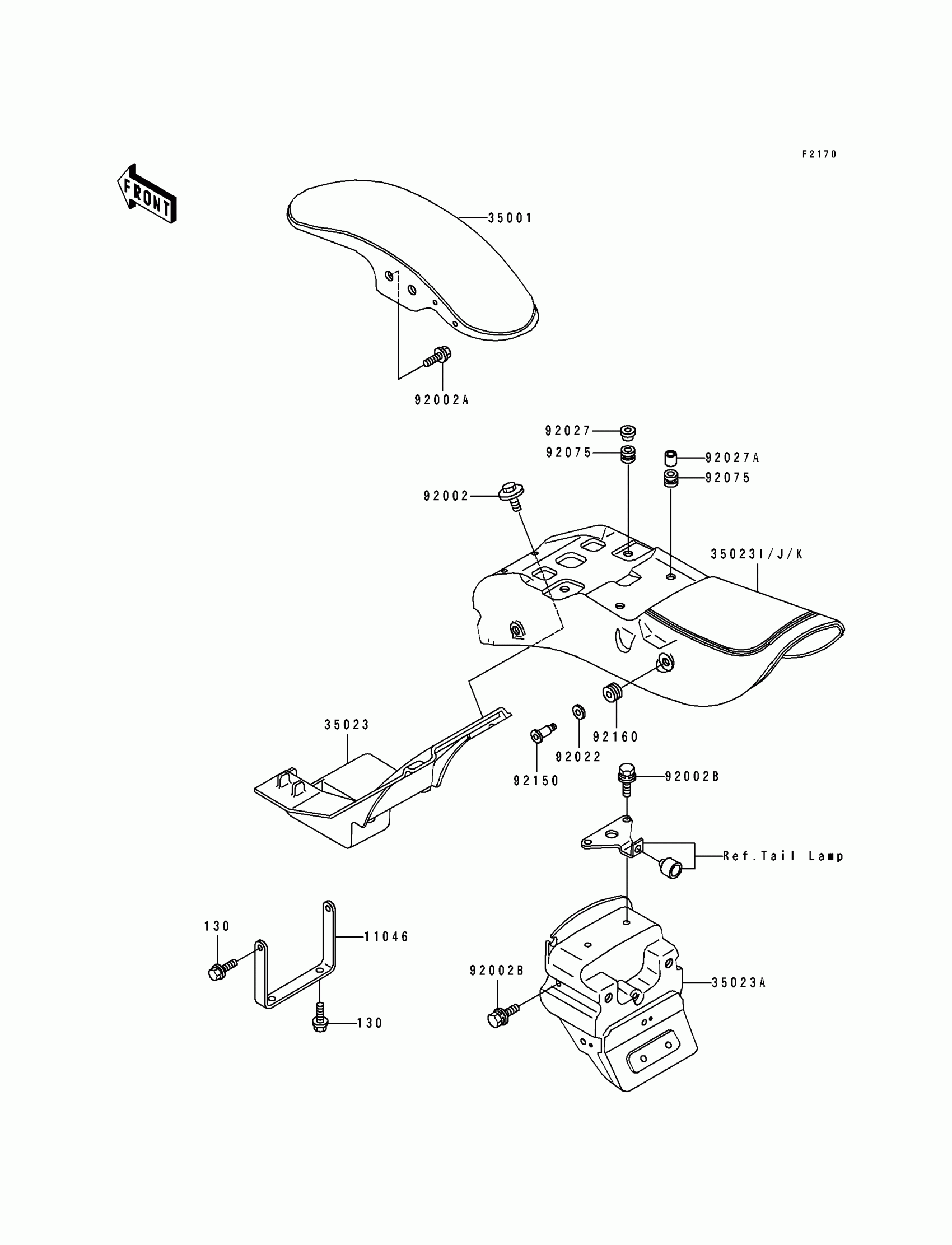

1996 Kawasaki Vulcan 500 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,REAR FENDER,FR

11046-1913

1
Out of stock

35001

FENDER-ASSY-FRONT

35001-1140

1
Out of stock

35023

FENDER-REAR,FR

35023-1259

1
Out of stock

35023A

FENDER-REAR,RR,LWR

35023-1261

1
Out of stock

35023J

FENDER-REAR,RR,UPP,RED/GRAY

35023-5073-JG

1
Out of stock

35023K

FENDER-REAR,RR,UPP,BLUE/SILVER

35023-5076-H6

1
Out of stock

92002

BOLT,6X16

92002-1188

1
Out of stock

92002A

BOLT,FLANGED,8X16

92002-1200

1
Out of stock

92002B

BOLT,6X16

92002-1242

1
Out of stock

92022

WASHER

92022-107

1
Out of stock

92027

COLLAR,L=9

92027-1188

1
Out of stock

92027A

COLLAR,6.8X10X8.5

92027-129

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92150

BOLT

92150-1413

1
Out of stock

92160

DAMPER

92160-1012

1
Out of stock

130

BOLT-FLANGED,6X10

130H0610

1
Out of stock
