1994 Kawasaki Vulcan 500 Frame Fittings Diagram

← All diagrams

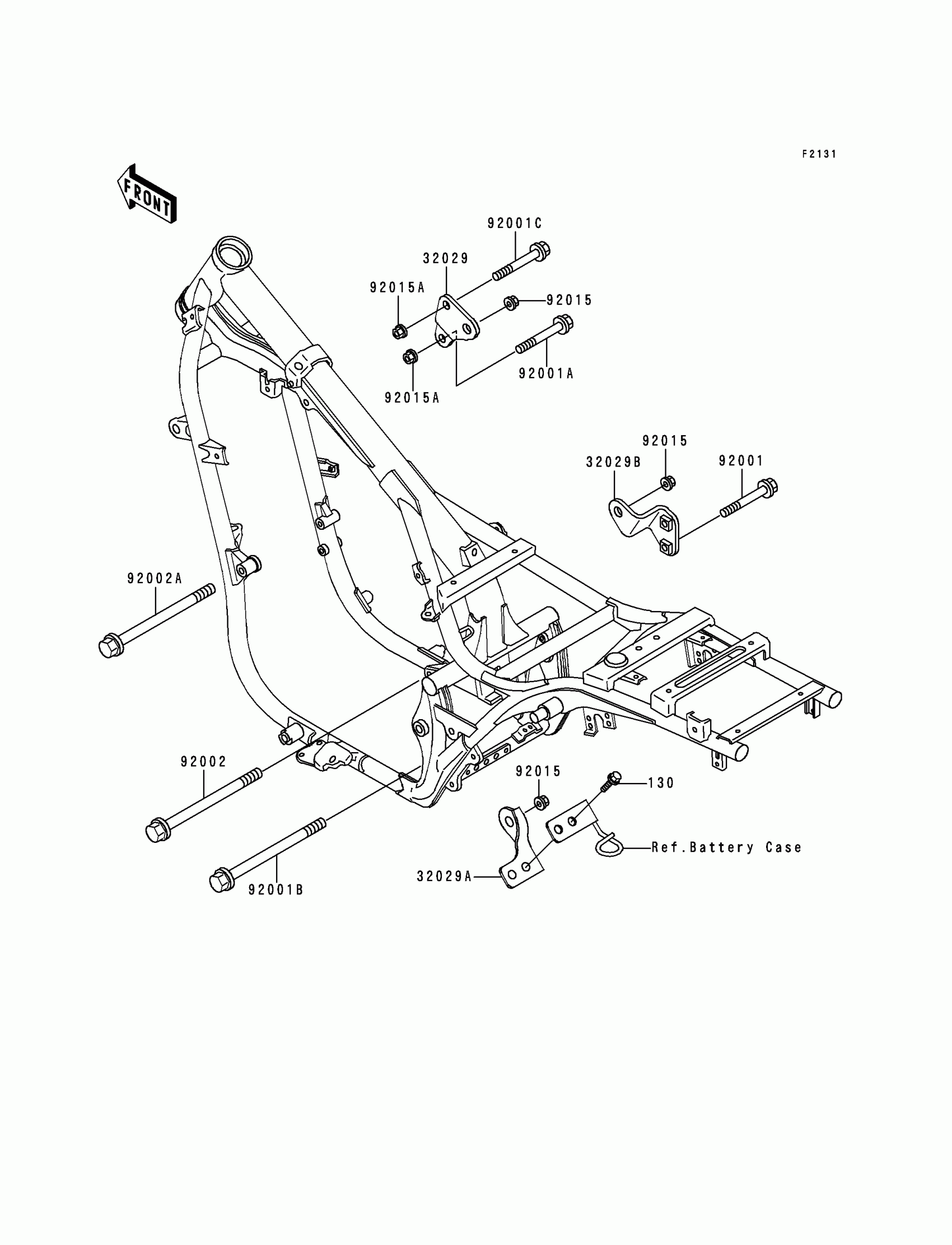

Find the part on the Frame Fittings diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130J0816

1
Out of stock

32029

BRACKET-ENGINE,FR,RH

32029-1377

1
Out of stock

32029A

BRACKET-ENGINE,RR,LWR,RH

32029-1379

1
Out of stock

32029B

BRACKET-ENGINE,RR,UPP,RH

32029-1727

1
Out of stock

92001

BOLT,FLANGED,8X45

92001-1613

1
Out of stock

92001A

BOLT,FLANGED,8X60,BLACK

92001-1615

1
Out of stock

92001B

BOLT,FLANGED,10X180

92001-1621

1
Out of stock

92001C

BOLT,FLANGED,8X55,BLACK

92001-1641

1
Out of stock

92002

BOLT,FLANGED,10X170

92002-1470

1
Out of stock

92002A

BOLT,FLANGED,10X230

92002-1531

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM,BLACK

92015-1251

1
Out of stock
